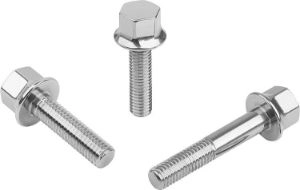

K1492 - 316 Stainless Steel Hexagon Bolt With Collar

K1492 - 316 Stainless Steel Hexagon Bolt With Collar

List view Grid view

Product description:
A cavity-free seal can only be assured in combination with the Hygienic USIT® seal and shim washer. The polished screws have a surface finish of Ra < 0.8 µm.
Internal transition areas with a minimum radius of 3 mm are also provided, preventing dirt particles from adhering to the components and ensuring easy cleaning.

Hexagon head bolts with collar for Hygienic USIT® seal and shim washers are ideal for fastening in sterile areas and also conform to EHEDG regulations, something that is confirmed with the relevant certificate.

Material:
Stainless steel 1.4404.

Version:
Polished.

Note:
The EHEDG certificate is only valid when a specifically matched Hygienic USIT® seal and shim washer K1491 is used.

Suggested Accessories:
Hygienic USIT® seal and shim washer K1491.
Hexagon cap nut with collar K1493.
Sockets with plastic inserts K1361.
Ring/open-end spanner with protective caps K1362.

Hygienic Hex Head Bolt. M5x25mm. 316 Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	B	D	D1	D2	Form	K	L	R	SW	Price (Exc. Tax)	Stock
Filters
K1492.04X10 View product	--	M4	10,8	4	A	6,9	10	0,45	7	£3.28	0
K1492.04X12 View product	--	M4	10,8	4	A	6,9	12	0,45	7	£3.30	0
K1492.04X16 View product	--	M4	10,8	4	A	6,9	16	0,45	7	£3.45	0
K1492.04X20 View product	--	M4	10,8	4	A	6,9	20	0,45	7	£3.62	10
K1492.04X25 View product	14	M4	10,8	4	B	6,9	25	0,45	7	£3.89	0
K1492.04X30 View product	14	M4	10,8	4	B	6,9	30	0,45	7	£4.03	0
K1492.04X35 View product	14	M4	10,8	4	B	6,9	35	0,45	7	£4.28	0
K1492.04X40 View product	14	M4	10,8	4	B	6,9	40	0,45	7	£4.53	0
K1492.04X8 View product	--	M4	10,8	4	A	6,9	8	0,45	7	£3.23	0
K1492.05X10 View product	--	M5	11,8	5	A	8,5	10	0,5	8	£2.78	0
K1492.05X12 View product	--	M5	11,8	5	A	8,5	12	0,5	8	£2.82	0
K1492.05X16 View product	--	M5	11,8	5	A	8,5	16	0,5	8	£2.87	0
K1492.05X20 View product	--	M5	11,8	5	A	8,5	20	0,5	8	£3.10	0
K1492.05X25 View product	16	M5	11,8	5	B	8,5	25	0,5	8	£3.25	0
K1492.05X30 View product	16	M5	11,8	5	B	8,5	30	0,5	8	£3.65	4
K1492.05X35 View product	16	M5	11,8	5	B	8,5	35	0,5	8	£4.03	0
K1492.05X40 View product	16	M5	11,8	5	B	8,5	40	0,5	8	£4.43	0
K1492.05X45 View product	16	M5	11,8	5	B	8,5	45	0,5	8	£5.18	0
K1492.05X50 View product	16	M5	11,8	5	B	8,5	50	0,5	8	£5.90	0
K1492.06X12 View product	--	M6	14	6	A	9,2	12	0,55	10	£3.53	0
K1492.06X16 View product	--	M6	14	6	A	9,2	16	0,55	10	£3.59	0
K1492.06X20 View product	--	M6	14	6	A	9,2	20	0,55	10	£3.72	0
K1492.06X25 View product	--	M6	14	6	A	9,2	25	0,55	10	£3.99	0
K1492.06X30 View product	18	M6	14	6	B	9,2	30	0,55	10	£4.32	0
K1492.06X35 View product	18	M6	14	6	B	9,2	35	0,55	10	£4.77	0
K1492.06X40 View product	18	M6	14	6	B	9,2	40	0,55	10	£5.11	0
K1492.06X45 View product	18	M6	14	6	B	9,2	45	0,55	10	£5.54	0
K1492.06X50 View product	18	M6	14	6	B	9,2	50	0,55	10	£6.06	0
K1492.06X60 View product	18	M6	14	6	B	9,2	60	0,55	10	£8.38	0
K1492.08X16 View product	--	M8	18	8	A	11,7	16	0,6	13	£5.83	0
K1492.08X20 View product	--	M8	18	8	A	11,7	20	0,6	13	£5.93	0
K1492.08X25 View product	--	M8	18	8	A	11,7	25	0,6	13	£6.23	0
K1492.08X30 View product	--	M8	18	8	A	11,7	30	0,6	13	£6.45	0
K1492.08X35 View product	--	M8	18	8	A	11,7	35	0,6	13	£6.93	0
K1492.08X40 View product	22	M8	18	8	B	11,7	40	0,6	13	£7.38	0
K1492.08X45 View product	22	M8	18	8	B	11,7	45	0,6	13	£8.11	0
K1492.08X50 View product	22	M8	18	8	B	11,7	50	0,6	13	£8.58	0
K1492.08X60 View product	22	M8	18	8	B	11,7	60	0,6	13	£9.60	0
K1492.08X70 View product	22	M8	18	8	B	11,7	70	0,6	13	£10.37	0
K1492.08X80 View product	22	M8	18	8	B	11,7	80	0,6	13	£12.82	0
K1492.10X20 View product	--	M10	22	10	A	14	20	0,75	16	£7.57	0
K1492.10X25 View product	--	M10	22	10	A	14	25	0,75	16	£7.70	0
K1492.10X30 View product	--	M10	22	10	A	14	30	0,75	16	£8.01	0
K1492.10X35 View product	--	M10	22	10	A	14	35	0,75	16	£8.58	0
K1492.10X40 View product	--	M10	22	10	A	14	40	0,75	16	£9.42	0
K1492.10X45 View product	26	M10	22	10	B	14	45	0,75	16	£9.96	0
K1492.10X50 View product	26	M10	22	10	B	14	50	0,75	16	£10.61	0
K1492.10X60 View product	26	M10	22	10	B	14	60	0,75	16	£11.49	0
