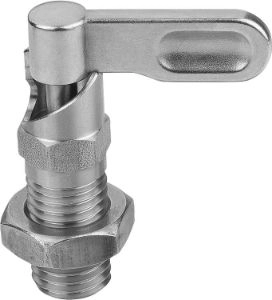

K1285 Cam-Action Indexing Plungers With Stop In Stainless Steel Right Hand Open

K1285 Cam-Action Indexing Plungers With Stop In Stainless Steel Right Hand Open

List view Grid view

Material:
Stainless steel 1.4305.

Version:
Bright.
Indexing pin ground, not hardened.

Note:
Cam-action indexing plungers are used when the indexing pin should not project all the time. Turning the handle through 180° retracts the pin.
A notch ensures that the handle remains in this position.
A stop prevents the handle being rotated through more than 180° ensuring that the pin remains retracted.
Selecting which side the stop is on defines the rotation direction of the plunger

Cam Action Indexing Plunger With Right Stop. M16 Thread. 10mm Pin Diameter. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Sort by

	B	B1	D	D1	D2	Fx30°	H	L	L1	L3	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW1	SW2	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																		Basket
K1285.2050410 View product Cam Action Indexing Plunger With Right Stop. M10 Thread. 4mm Pin Diameter. Stainless Steel.	9	3	4	M10	10	1	6	38	25	15	with locknut	8	14	10	17	£19.78 £23.74		0 Dispatched 08/07/25

	B	B1	D	D1	D2	Fx30°	H	L	L1	L3	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW1	SW2	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																		Basket
K1285.2050510 View product Cam Action Indexing Plunger With Right Stop. M10 Thread. 5mm Pin Diameter. Stainless Steel.	9	3	5	M10	10	1,3	6	38	25	15	with locknut	8	14	10	17	£19.78 £23.74		0 Dispatched 08/07/25

	B	B1	D	D1	D2	Fx30°	H	L	L1	L3	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW1	SW2	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																		Basket
K1285.2050512 View product Cam Action Indexing Plunger With Right Stop. M12 Thread. 5mm Pin Diameter. Stainless Steel.	10,8	3,6	5	M12	12	1,3	8	47,8	30	19	with locknut	8	15	12	19	£21.78 £26.14		0 Dispatched 08/07/25

	B	B1	D	D1	D2	Fx30°	H	L	L1	L3	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW1	SW2	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																		Basket
K1285.2050610 View product Cam Action Indexing Plunger With Right Stop. M10 Thread. 6mm Pin Diameter. Stainless Steel.	9	3	6	M10	10	1,8	6	38	25	15	with locknut	8	14	10	17	£19.78 £23.74		0 Dispatched 08/07/25

	B	B1	D	D1	D2	Fx30°	H	L	L1	L3	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW1	SW2	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																		Basket
K1285.2050612 View product Cam Action Indexing Plunger With Right Stop. M12 Thread. 6mm Pin Diameter. Stainless Steel.	10,8	3,6	6	M12	12	1,8	8	47,8	30	19	with locknut	8	15	12	19	£21.78 £26.14		0 Dispatched 08/07/25

	B	B1	D	D1	D2	Fx30°	H	L	L1	L3	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW1	SW2	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																		Basket
K1285.2050616 View product Cam Action Indexing Plunger With Right Stop. M16 Thread. 6mm Pin Diameter. Stainless Steel.	14,4	4,8	6	M16	16	1,8	10	60,4	40	26	with locknut	15	35	16	24	£24.48 £29.38		0 Dispatched 08/07/25

	B	B1	D	D1	D2	Fx30°	H	L	L1	L3	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW1	SW2	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																		Basket
K1285.2050812 View product Cam Action Indexing Plunger With Right Stop. M12 Thread. 8mm Pin Diameter. Stainless Steel.	10,8	3,6	8	M12	12	2,3	8	47,8	30	19	with locknut	8	15	12	19	£21.78 £26.14		0 Dispatched 08/07/25

	B	B1	D	D1	D2	Fx30°	H	L	L1	L3	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW1	SW2	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																		Basket
K1285.2050816 View product Cam Action Indexing Plunger With Right Stop. M16 Thread. 8mm Pin Diameter. Stainless Steel.	14,4	4,8	8	M16	16	2,3	10	60,4	40	26	with locknut	15	35	16	24	£24.48 £29.38		0 Dispatched 08/07/25

	B	B1	D	D1	D2	Fx30°	H	L	L1	L3	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW1	SW2	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																		Basket
K1285.20508201 View product Cam Action Indexing Plunger With Right Stop. M20 Thread. 1.5mm Thread Pitch. 8mm Pin Diameter. Stainless Steel.	18	6	8	M20x1,5	20	2,3	12	70	50	30	with locknut	20	60	20	30	£30.43 £36.52		0 Dispatched 08/07/25

	B	B1	D	D1	D2	Fx30°	H	L	L1	L3	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW1	SW2	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																		Basket
K1285.2051016 View product Cam Action Indexing Plunger With Right Stop. M16 Thread. 10mm Pin Diameter. Stainless Steel.	14,4	4,8	10	M16	16	2,8	10	60,4	40	26	with locknut	15	35	16	24	£24.48 £29.38		0 Dispatched 08/07/25

	B	B1	D	D1	D2	Fx30°	H	L	L1	L3	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW1	SW2	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																		Basket
K1285.20510201 View product Cam Action Indexing Plunger With Right Stop. M20 Thread. 1.5mm Thread Pitch. 10mm Pin Diameter. Stainless Steel.	18	6	10	M20x1,5	20	2,8	12	70	50	30	with locknut	20	60	20	30	£30.43 £36.52		0 Dispatched 08/07/25

	B	B1	D	D1	D2	Fx30°	H	L	L1	L3	Locknut	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	SW1	SW2	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS																		Basket
K1285.20512201 View product Cam Action Indexing Plunger With Right Stop. M20 Thread. 1.5mm Thread Pitch. 12mm Pin Diameter. Stainless Steel.	18	6	12	M20x1,5	20	3	12	70	50	30	with locknut	20	60	20	30	£30.43 £36.52		0 Dispatched 08/07/25
