Tounge Not Supplied Please Order Separately. Part Number K1114.
Material:
Housing and actuator die-cast zinc.
Version:
Housing and actuator chrome-plated.
Note:
Rating IP65. This is achieved using an additional O-ring underneath the actuator and a flat seal attached to the housing. The quarter-turn lock can be installed pre-assembled.
Please order the required tongue separately. Every tongue can be combined with this housing.
*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.
Accessory:
Key K0535.

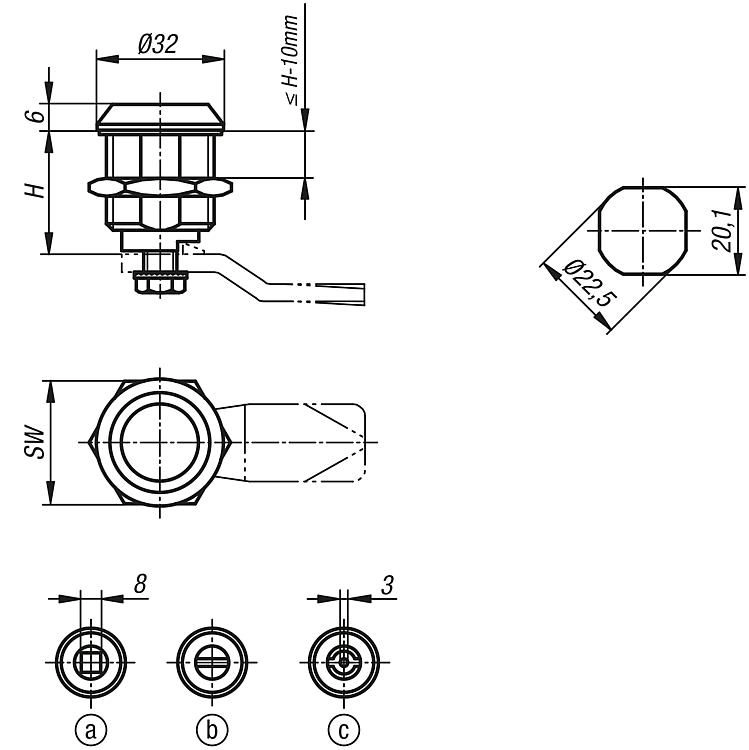

Tongue for steel quarter-turn lock K1114.Drawing reference:
Actuation:
a) square 8 mm
b) slit
c) double lug 3 mm
Quick Filters
Choose Vertical Base Type
Flat
Side Mount
Straight
Choose Horizontal Base Type
Flat
Side Mount
Straight
Choose Stroke Length
0-40mm
41-80mm
81mm+
Choose Type
Hook
Latch
Vertical Latch
Style
Cabinet Cooler Only
Cabinet Cooler For Continuous Operation
Cabinet Cooler With Thermostat Control
Style
Cabinet Cooler Only
Cabinet Cooler For Continuous Operation
Cabinet Cooler With Thermostat Control
Style
Cabinet Cooler Only
Cabinet Cooler For Continuous Operation
Cabinet Cooler With Thermostat Control
Style
Air Knife Only
Air Knife With Filter and Shim Set
Air Knife With Plumbing Kit Installed, Filter and Shim Set
Style
Air Knife Only
Air Knife With Filter and Shim Set
Style
Air Knife Only
Air Knife With Filter and Shim Set
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Line Vac Only
Line Vac With Filter and Bracket
Style
Air Amplifier Only
Air Amplifier With Filter and Shim Set
Style
Air Amplifier Only
Air Amplifier With Filter
Item
Filter / Regulator
Air Amplifier Shim Set
Item
Filter / Regulator
Vortex Tube Generator
Vortex Tube Cold Silencer
Vortex Tube Hot Silencer
Style
Vortex Tube Only
Vortex Tube With Generator Kit, Muffler, Tubing And Filter
Actuation |
H |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||
K1113.18301 View productQuarter Turn Lock. 8mm Square Lock. 30mm Height. Zinc Chromed. |
Slot | 30 | 18 | 27 | £9.95 £11.94 |
0 Dispatched 15/09/25 |
Actuation |
H |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||
K1113.18401 View productQuarter Turn Lock. 8mm Square Lock. 40mm Height. Zinc Chromed. |
Slot | 40 | 18 | 27 | £9.95 £11.94 |
0 Dispatched 15/09/25 |
Actuation |
H |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||
K1113.18501 View productQuarter Turn Lock. 8mm Square Lock. 50mm Height. Zinc Chromed. |
Slot | 50 | 18 | 27 | £9.95 £11.94 |
0 Dispatched 15/09/25 |
Actuation |
H |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||
K1113.20301 View productQuarter Turn Lock. Slot Lock. 30mm Height. Zinc Chromed. |
Double Lug 3mm | 30 | 18 | 27 | £12.72 £15.26 |
0 Dispatched 15/09/25 |
Actuation |
H |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||
K1113.20401 View productQuarter Turn Lock. Slot Lock. 40mm Height. Zinc Chromed. |
Double Lug 3mm | 40 | 18 | 27 | £12.72 £15.26 |
0 Dispatched 15/09/25 |
Actuation |
H |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||
K1113.20501 View productQuarter Turn Lock. Slot Lock. 50mm Height. Zinc Chromed. |
Double Lug 3mm | 50 | 18 | 27 | £12.72 £15.26 |
0 Dispatched 15/09/25 |
Actuation |
H |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||
K1113.40301 View productQuarter Turn Lock. Double Lug Lock. 30mm Height. Zinc Chromed. |
Square 8mm | 30 | 18 | 27 | £11.54 £13.85 |
0 Dispatched 15/09/25 |
Actuation |
H |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||
K1113.40401 View productQuarter Turn Lock. Double Lug Lock. 30mm Height. Zinc Chromed. |
Square 8mm | 40 | 18 | 27 | £11.54 £13.85 |
0 Dispatched 15/09/25 |
Actuation |
H |
S max. |
SW |
Price |
Price |
Compare |
Qty |
Basket |
|
---|---|---|---|---|---|---|---|---|---|
FILTERS |
Basket |
||||||||
K1113.40501 View productQuarter Turn Lock. Double Lug Lock. 30mm Height. Zinc Chromed. |
Square 8mm | 50 | 18 | 27 | £11.54 £13.85 |
3 3 in stock |
