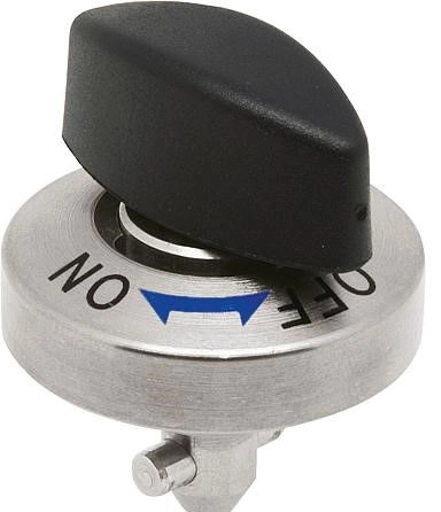

Rotary Latch. Nickel-Plated Steel. Plastic Wing Grip. 8mm Pin Diameter. 23mm Pin Length.

Item Code: K1061.823

Rotary Latch. Nickel-Plated Steel. Plastic Wing Grip. 8mm Pin Diameter. 23mm Pin Length.

Quarter-turn-locks-Drawing_1200x1200.jpg?

Item Code: K1061.823

Rotary Latch. Nickel-Plated Steel. Plastic Wing Grip. 8mm Pin Diameter. 23mm Pin Length.

Material:
Housing steel.
Pin stainless steel.
Knob stainless steel or thermoplastic PA (polyamide).
Version:
Housing nickel-plated.
Pin bright.
Knob reinforced PA fibreglass, black.
Knob stainless steel, bright.
Note:
M2 or M3 mounting screws are supplied.
Form A mounting option for plate thickness 6 or 12 mm.
Form B mounting option for plate thickness 12 to 20 mm.
Accessory:
Clamping plates K1062
Drawing reference:
1) plate

Quick Links

Dispatch by 11/06/25

D3: 32

D: 8

L: 23

D1: 18

H: 26

H1: 10

D2: 34

D4: 28

D8: 3,4

D5: 18

D6: 35

D7: 6,5

M: M3x4

Holding force N: 90

Shearing force kN: 3,2

Pullout force F, kN: 2,6

£46.26 ea. Excl VAT £55.51 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£37.93	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

D3	32
D	8
L	23
D1	18
H	26
H1	10
D2	34
D4	28
D8	3,4
D5	18
D6	35
D7	6,5
M	M3x4
Holding force N	90
Shearing force kN	3,2
Pullout force F, kN	2,6
