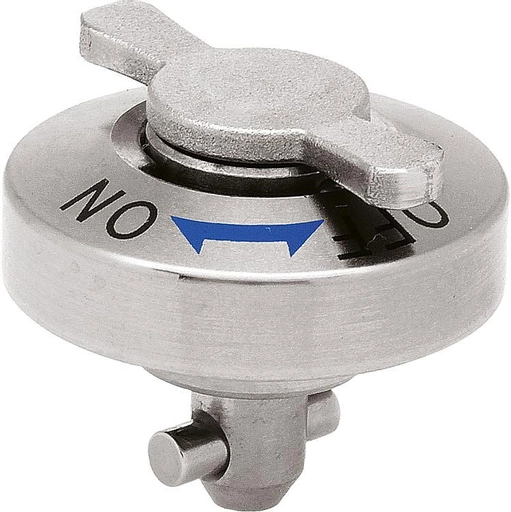

Rotary Latch. Nickel-Plated Steel. Stainless Steel Wing Grip. 5mm Pin Diameter. 15.5mm Pin Length.

Item Code: K1061.5162

Rotary Latch. Nickel-Plated Steel. Stainless Steel Wing Grip. 5mm Pin Diameter. 15.5mm Pin Length.

Quarter-turn-locks-Drawing-Flat-Pic-2_1200x1200.jpg?

Quarter-turn-locks-Drawing-Flat_1200x1200.jpg?

Item Code: K1061.5162

Rotary Latch. Nickel-Plated Steel. Stainless Steel Wing Grip. 5mm Pin Diameter. 15.5mm Pin Length.

Material:
Housing steel.
Pin stainless steel.
Knob stainless steel.
Version:
Housing nickel-plated.
Pin bright.
Knob stainless steel, bright.
Note:
M2 or M3 mounting screws are supplied.
Form A mounting option for plate thickness 6 or 12 mm.
Form B mounting option for plate thickness 12 to 20 mm.
Accessory:
Clamping plates K1062

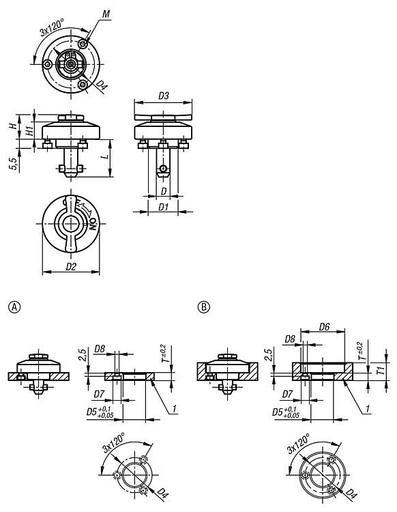

Drawing reference:
1) plate

Quick Links

Dispatch by 09/07/25

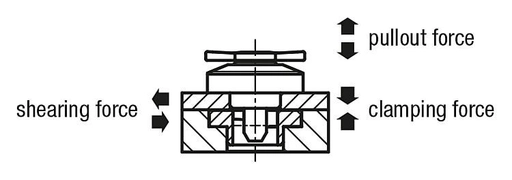

Clamping force N: 60

D: 5

D1: 14

D2: 25

D3: 20

D4: 21

D5: 14

D6: 26

D7: 4,4

D8: 2,4

H: 11,5

H1: 6,5

Holding force N: 60

L: 15,5

M: M2x3

Pullout force F, kN: 1,2

Shearing force kN: 1,8

£59.09 ea. Excl VAT £70.91 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
5 +	£50.23	15%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

Clamping force N	60
D	5
D1	14
D2	25
D3	20
D4	21
D5	14
D6	26
D7	4,4
D8	2,4
H	11,5
H1	6,5
Holding force N	60
L	15,5
M	M2x3
Pullout force F, kN	1,2
Shearing force kN	1,8
