K1061 - Quarter Turn Clamp Locks Flat

List view Grid view
K1061 - Quarter Turn Clamp Locks Flat

Material:
Housing stainless steel.
Bolt steel
Pin stainless steel
Twist knob stainless steel.

Version:
Housing bright.
Bolt nickel plated.
Pin bright.
Twist knob stainless steel, bright.

Note:
M2 or M3 fastening screws are supplied.
Mounting option 1 for plate thickness 6 or 12 mm.
Mounting option 2 for plate thickness 12 to 20 mm.

A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.

Accessory:
Clamping plates K1062

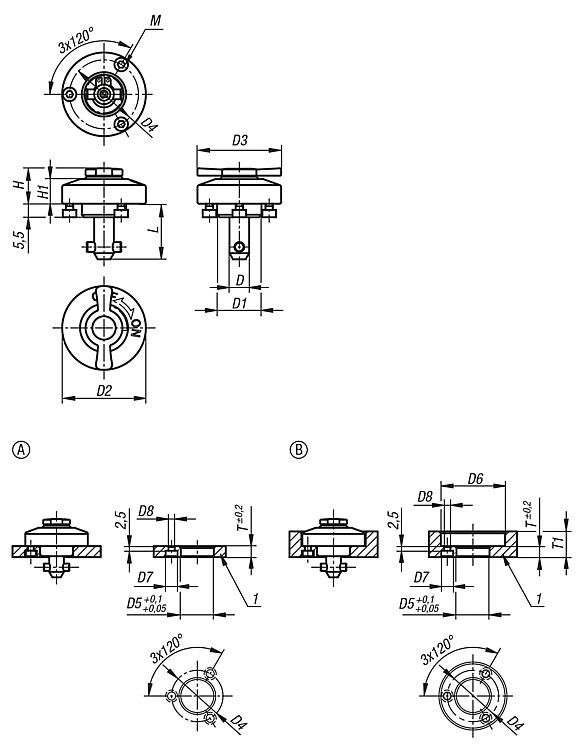

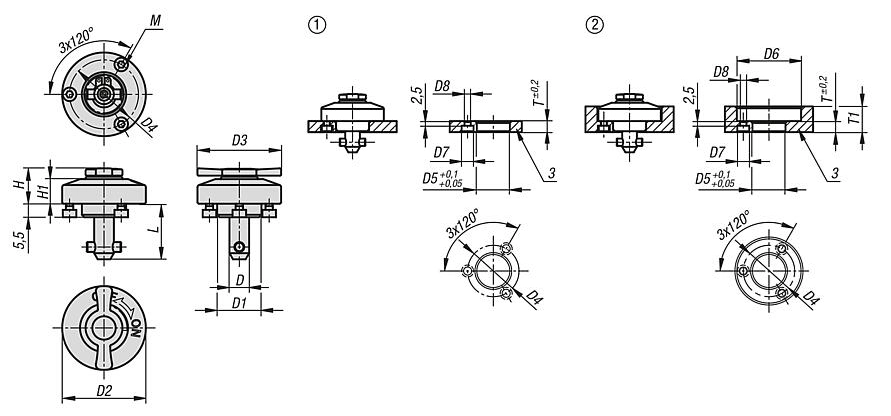

Drawing reference:
1) Mounting option 1
2) Mounting option 2
3) Plate

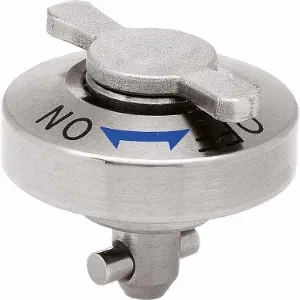

Rotary Latch. Nickel-Plated Steel. Stainless Steel Wing Grip. 5mm Pin Diameter. 15.5mm Pin Length.

K1061 - Quarter Turn Clamp Locks Flat

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm+

Choose Type

Hook

Latch

Vertical Latch

Clamping force N

D

D1

D2

D3

D4

D5

D6

D7

D8

H

H1

Holding force N

L

M

Pullout force F, kN

Shearing force kN

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K1061.5162

View product

Rotary Latch. Nickel-Plated Steel. Stainless Steel Wing Grip. 5mm Pin Diameter. 15.5mm Pin Length.

60 5 14 25 20 21 14 26 4,4 2,4 11,5 6,5 60 15,5 M2x3 1,2 1,8 £59.09 £70.91

0

Dispatched 08/07/25

Clamping force N

D

D1

D2

D3

D4

D5

D6

D7

D8

H

H1

Holding force N

L

M

Pullout force F, kN

Shearing force kN

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K1061.8172

View product

Rotary Latch. Nickel-Plated Steel. Stainless Steel Wing Grip. 8mm Pin Diameter. 17mm Pin Length.

90 8 18 34 32 28 18 35 6,5 3,4 15,4 10 90 17 M3x4 2,6 3,2 £61.70 £74.04

0

Dispatched 08/07/25

Clamping force N

D

D1

D2

D3

D4

D5

D6

D7

D8

H

H1

Holding force N

L

M

Pullout force F, kN

Shearing force kN

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K1061.8232

View product

Rotary Latch. Nickel-Plated Steel. Stainless Steel Wing Grip. 8mm Pin Diameter. 23mm Pin Length.

90 8 18 34 32 28 18 35 6,5 3,4 15,4 10 90 23 M3x4 2,6 3,2 £61.70 £74.04

0

Dispatched 08/07/25

Showing products per page


£
£

Dispatch by 08/07/25

Item Code: K1061.5162

Rotary Latch. Nickel-Plated Steel. Stainless Steel Wing Grip. 5mm Pin Diameter. 15.5mm Pin Length.

£59.09  Excl VAT £70.91  Inc VAT

Price breaks available

Text

Qty

Dispatch by 08/07/25

Item Code: K1061.8172

Rotary Latch. Nickel-Plated Steel. Stainless Steel Wing Grip. 8mm Pin Diameter. 17mm Pin Length.

£61.70  Excl VAT £74.04  Inc VAT

Price breaks available

Text

Qty

Dispatch by 08/07/25

Item Code: K1061.8232

Rotary Latch. Nickel-Plated Steel. Stainless Steel Wing Grip. 8mm Pin Diameter. 23mm Pin Length.

£61.70  Excl VAT £74.04  Inc VAT

Price breaks available

Text

Qty
