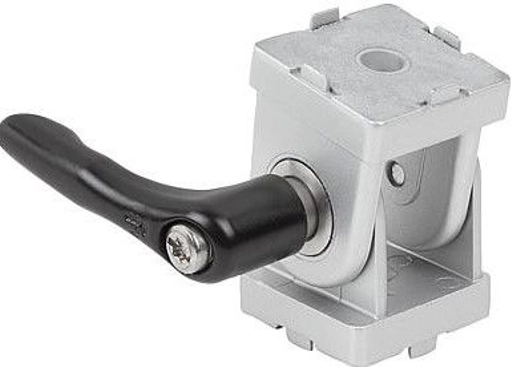

Joint Bracket With Clamp Lever. 30x30x45mm. 6mm Slot Width. Zinc.

Item Code: K1051.1063030

Joint Bracket With Clamp Lever. 30x30x45mm. 6mm Slot Width. Zinc.

K1051-Joints-Form-C-D-image-2_1200x1200.jpg?

K1051-Joints-Form-A-with-Handle-Drawing_341x299.jpg?

Item Code: K1051.1063030

Joint Bracket With Clamp Lever. 30x30x45mm. 6mm Slot Width. Zinc.

Material:
Joint die-cast zinc.
Fastenings die-cast zinc.
Spacer rings stainless steel.
Tapped bushes and countersunk screws steel.
Handle die-cast zinc DIN EN 12844. Metal parts stainless steel 1.4305.
Version:
Joint painted aluminium tone.
Fasteners galvanized.
Spacer rings bright.
Tapped bushes and countersunk screws galvanized.
Handle plastic-coated. Steel parts bright stainless steel.
Note:

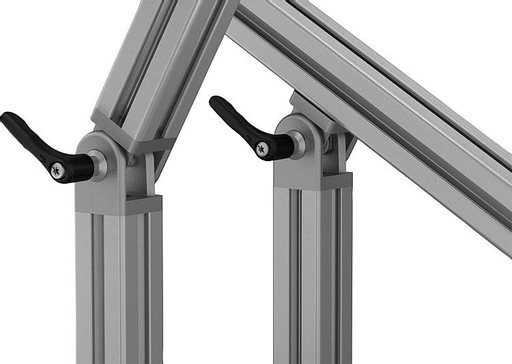

Joints for connecting two profiles at any angle.
The adjustment range is 0° to 180°. The joint can also be used as a heavy hinge.
When the spacer rings are inserted, the joint can move freely. When these are removed, the joint can be used as a rigid angle element. The joints are particularly suitable for use as adjustable brackets, swivel arms or similar applications.

Quick Links

Dispatch by 06/08/25

A: 22,5

B: 30

B1: 31

D: 6,4

Form: C

H: 45

L: 30

Slot width: 6

T: 7

£28.60 ea. Excl VAT £34.32 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£23.45	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

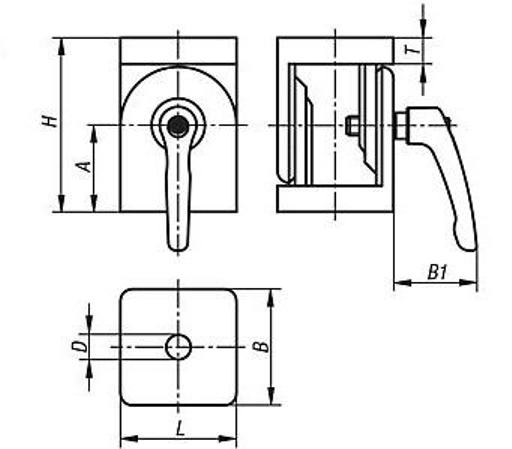

Product Dimensions

A	22,5
B	30
B1	31
D	6,4
Form	C
H	45
L	30
Slot width	6
T	7
