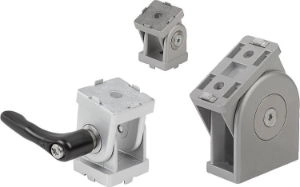

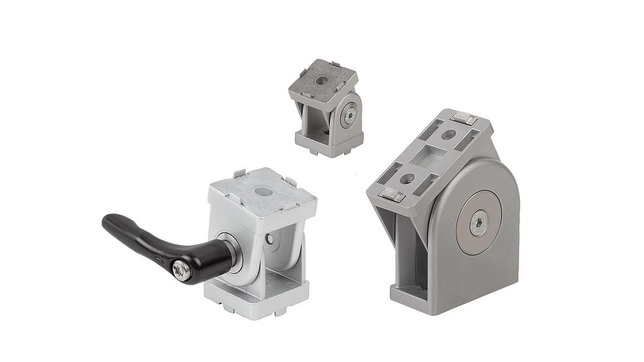

K1051 - Joints

Material:

Joint die-cast zink.
Fastenings die-cast zinc.
Spacer rings stainless steel.
Tapped bushes and countersunk screws steel.
Handle die-cast zinc DIN EN 12844. Steel parts stainless steel 1.4305.
The 40x80 and 45x90 joints are made from aluminium.

Version:
Joint painted aluminium tone.
Fasteners electro zinc-plated.
Spacer rings bright.
Tapped bushes and countersunk screws electro zinc-plated.
Handle powder-coated. Steel parts bright stainless steel.

Note:
Joints for connecting two profiles at any angle.
The adjustment range is 0° to 180°. The joint can also be used as a heavy hinge.

When the spacer rings are inserted, the joint can move freely. When these are removed, the joint can be used as a rigid angle element. The joints are particularly suitable for use as adjustable brackets, swivel arms or similar applications.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

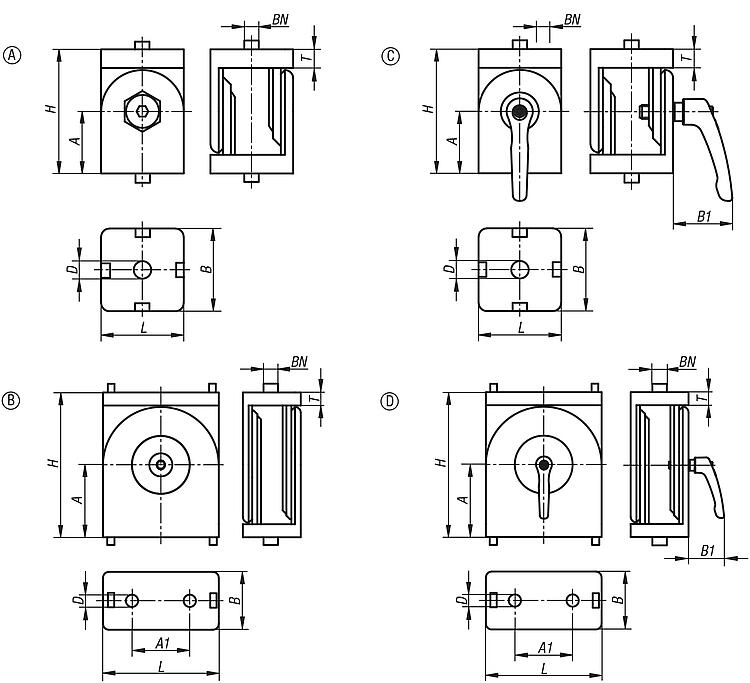

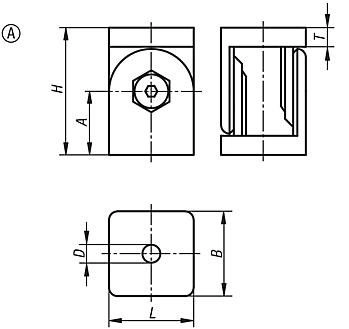

	A	A1	B	B1	D	Form	H	L	Slot width	T	Price (Exc. Tax)	Stock
Filters
K1051.063030 View product	22,5	--	30	--	6,4	A	45	30	6	7	£27.40	0
K1051.083030 View product	22,5	--	30	--	8,3	A	45	30	8	7	£32.96	0
K1051.084040 View product	30	--	40	--	8,4	A	60	40	8	9	£20.88	0
K1051.084080 View product	50	40	40	--	8,4	B	100	80	8	9	£64.03	0
K1051.104545 View product	30	--	45	--	8,5	A	60	45	10	8	£29.25	0
K1051.104590 View product	50	45	45	--	8,5	B	100	90	10	9	£64.03	0
K1051.1063030 View product	22,5	--	30	31	6,4	C	45	30	6	7	£29.41	0
K1051.1084040 View product	30	--	40	31	8,4	C	60	40	8	9	£30.72	0
K1051.1104545 View product	30	--	45	42,5	8,5	C	60	45	10	8	£33.66	0
K1051.2084080 View product	50	40	40	31	8,4	D	100	80	8	9	£65.89	0
K1051.2104590 View product	50	45	45	42,5	8,5	D	100	90	10	9	£67.18	0

Showing products per page

Sort by

Dispatch by 29/10/25

Item Code: K1051.063030

Joint Bracket. 30x30x45mm. 6mm Slot Width. Zinc.

£27.40 Excl VAT £32.88 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1051.083030

Joint Bracket. 30x30x45mm. 8mm Slot Width. Zinc.

£32.96 Excl VAT £39.55 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1051.084040

Joint Bracket. 40x40x60mm. 8mm Slot Width. Zinc.

£20.88 Excl VAT £25.06 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1051.084080

Joint Bracket. 80x40x100mm. 8mm Slot Width. Zinc.

£64.03 Excl VAT £76.84 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1051.104545

Joint Bracket. 45x45x60mm. 10mm Slot Width. Zinc.

£29.25 Excl VAT £35.10 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1051.104590

Joint Bracket. 90x45x100mm. 10mm Slot Width. Zinc.

£64.03 Excl VAT £76.84 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1051.1063030

Joint Bracket With Clamp Lever. 30x30x45mm. 6mm Slot Width. Zinc.

£29.41 Excl VAT £35.29 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1051.1084040

Joint Bracket With Clamp Lever. 40x40x60mm. 8mm Slot Width. Zinc.

£30.72 Excl VAT £36.86 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1051.1104545

Joint Bracket With Clamp Lever. 45x45x60mm. 10mm Slot Width. Zinc.

£33.66 Excl VAT £40.39 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1051.2084080

Joint Bracket With Clamp Lever. 80x40x100mm. 8mm Slot Width. Zinc.

£65.89 Excl VAT £79.07 Inc VAT

Price breaks available

Text

Qty

Dispatch by 29/10/25

Item Code: K1051.2104590

Joint Bracket With Clamp Lever. 90x45x100mm. 10mm Slot Width. Zinc.

{
