Item Code: K1050.08

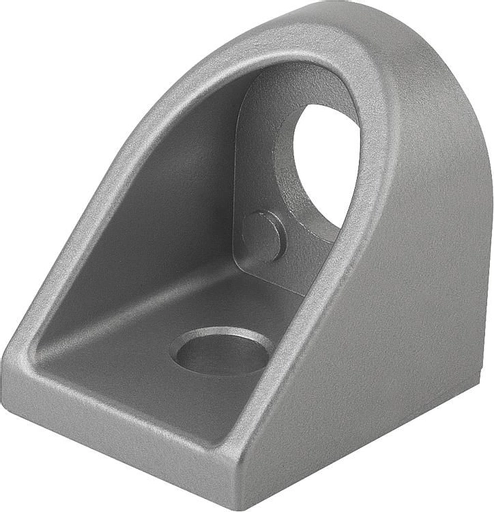

Angle Bracket. 36x32x35mm. 8mm Slot Width. Zinc.

Item Code: K1050.08

Angle Bracket. 36x32x35mm. 8mm Slot Width. Zinc.

Material:
Joint angle die-cast zinc.
Pivot bush steel.
Version:
Joint angle painted aluminium tone.
Pivot bush galvanized.
Note:
The joint angles are used for connecting two profiles of the same series that have contact on the side faces and cross at any angle.

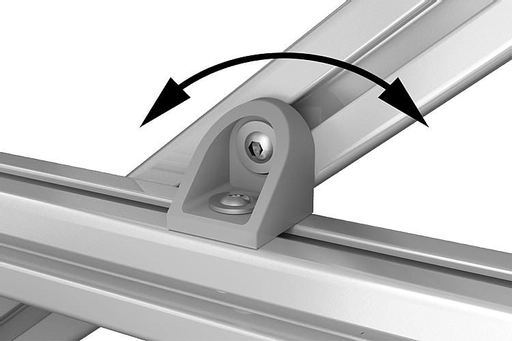

The joint angle acts as a fixed pivot point for the crossed profiles. When the screw is tightened the profile can still be freely rotated around the pivot bush.
The joint angles are generally used in combination with a clamping angle.

Quick Links

Dispatch by 09/06/25

9
36
8,8
20
32
35,2
5,5
9
4
8
7,5

£8.15  ea. Excl VAT £9.78  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
25 + £7.50 8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Joint angle die-cast zinc.
Pivot bush steel.
Version:
Joint angle painted aluminium tone.
Pivot bush galvanized.
Note:
The joint angles are used for connecting two profiles of the same series that have contact on the side faces and cross at any angle.
The joint angle acts as a fixed pivot point for the crossed profiles. When the screw is tightened the profile can still be freely rotated around the pivot bush.
The joint angles are generally used in combination with a clamping angle.

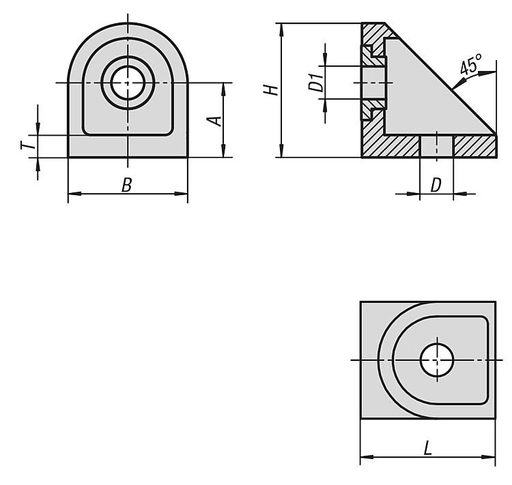

D9
L36
D18,8
A20
B32
H35,2
T5,5
A19
A24
Slot width8
A37,5
STP
