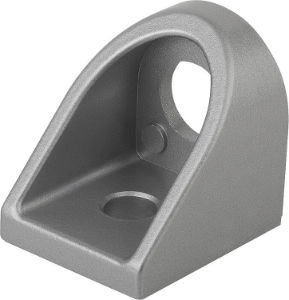

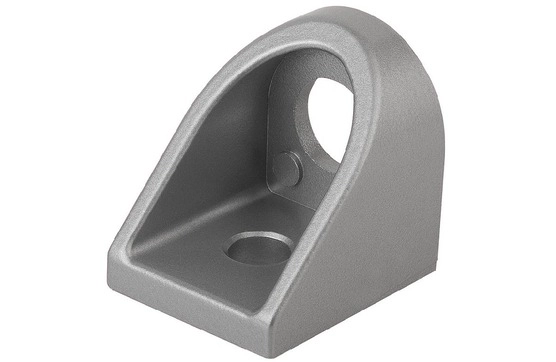

K1050 - Joint Angle

List view Grid view
K1050 - Joint Angle

Material:
Joint angle die-cast zinc.
Pivot bush steel.

Version:
Joint angle painted aluminium tone.
Pivot bush electro zinc-plated.Note:The joint angles are used for connecting two profiles of the same series that have contact on the side faces and cross at any angle.

The joint angle acts as a fixed pivot point for the crossed profiles. When the screw is tightened the profile can still be freely rotated around the pivot bush.

The joint angles are generally used in combination with a clamping angle.

Angle Bracket.

K1050 - Joint Angle

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm+

Choose Type

Hook

Latch

Vertical Latch

A

A1

A2

A3

B

D

D1

H

L

Slot width

T

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K1050.06

View product

Angle Bracket. 27x24x27mm. 6mm Slot Width. Zinc.

15 6,3 3 5,7 24 7 6,5 27 27 6 5 £7.84 £9.41

0

Dispatched 08/07/25

A

A1

A2

A3

B

D

D1

H

L

Slot width

T

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K1050.08

View product

Angle Bracket. 36x32x35mm. 8mm Slot Width. Zinc.

20 9 4 7,5 32 9 8,8 35,2 36 8 5,5 £8.15 £9.78

0

Dispatched 08/07/25

Showing products per page


£
£

Dispatch by 08/07/25

Item Code: K1050.06

Angle Bracket. 27x24x27mm. 6mm Slot Width. Zinc.

£7.84  Excl VAT £9.41  Inc VAT

Price breaks available

Text

Qty

Dispatch by 08/07/25

Item Code: K1050.08

Angle Bracket. 36x32x35mm. 8mm Slot Width. Zinc.

£8.15  Excl VAT £9.78  Inc VAT

Price breaks available

Text

Qty

Showing products per page

Angle Bracket. 27x24x27mm. 6mm Slot Width. Zinc.

Dispatch by 08/07/25

Item Code: K1050.06

£7.84  Excl VAT £9.41  Inc VAT

Price breaks available

Text

Qty

Angle Bracket. 36x32x35mm. 8mm Slot Width. Zinc.

Dispatch by 08/07/25

Item Code: K1050.08

£8.15  Excl VAT £9.78  Inc VAT

Price breaks available

Text

Qty
