Angle Bracket. 27x24x27mm. 6mm Slot Width. Zinc.

Item Code: K1049.06

Angle Bracket. 27x24x27mm. 6mm Slot Width. Zinc.

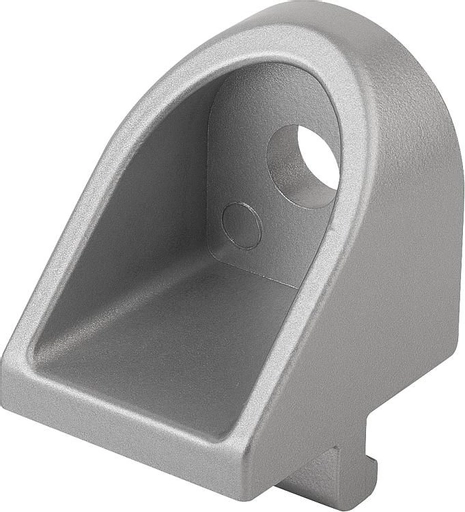

K1049-Clamping-Angle-Form-A_1200x1200.jpg?

K1049-Clamping-Angle-Form-A-Pic-2_1200x1200.jpg?

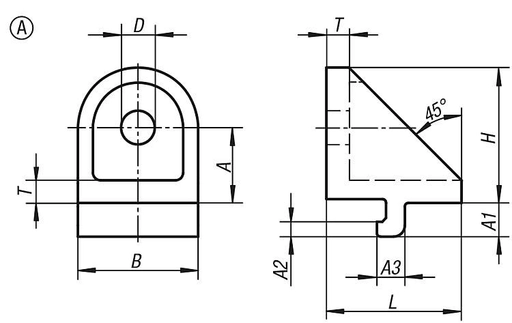

K1049-Clamping-Angle-Form-A-Drawing_1200x1200.jpg?

Item Code: K1049.06

Angle Bracket. 27x24x27mm. 6mm Slot Width. Zinc.

Material:
Clamping angle die-cast zinc.
Version:
Clamping angle painted aluminium tone.
Note:

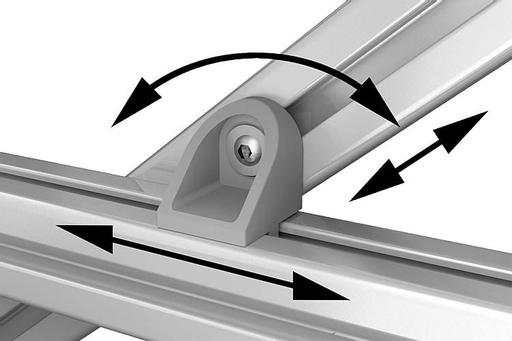

The clamping angles are used for connecting two profiles of the same series that have contact on the side faces and cross at any angle.
Loosening the screw releases both clamps allowing free rotation and sliding along the slots.
The clamping angles are generally used in pairs or in combination with a joint angle.

Quick Links

Dispatch by 09/06/25

Form: A

D: 7

L: 27

A: 15

B: 24

H: 27

T: 5

A1: 6,3

A2: 3

Slot width: 6

A3: 5,7

£5.25 ea. Excl VAT £6.30 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
25 +	£4.83	8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

Form	A
D	7
L	27
A	15
B	24
H	27
T	5
A1	6,3
A2	3
Slot width	6
A3	5,7

Downloads

STP
