K1049 - Clamping Angles

K1049 - Clamping Angles

Material:
Aluminium.

Note:
Angle element for fastening a profile at a 45° angle and for making struts or ties.
The angle element can be fastened with a universal connector set (remove rotation lock) and with ISO 7380 round-head screws.

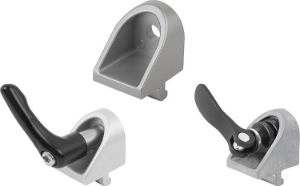

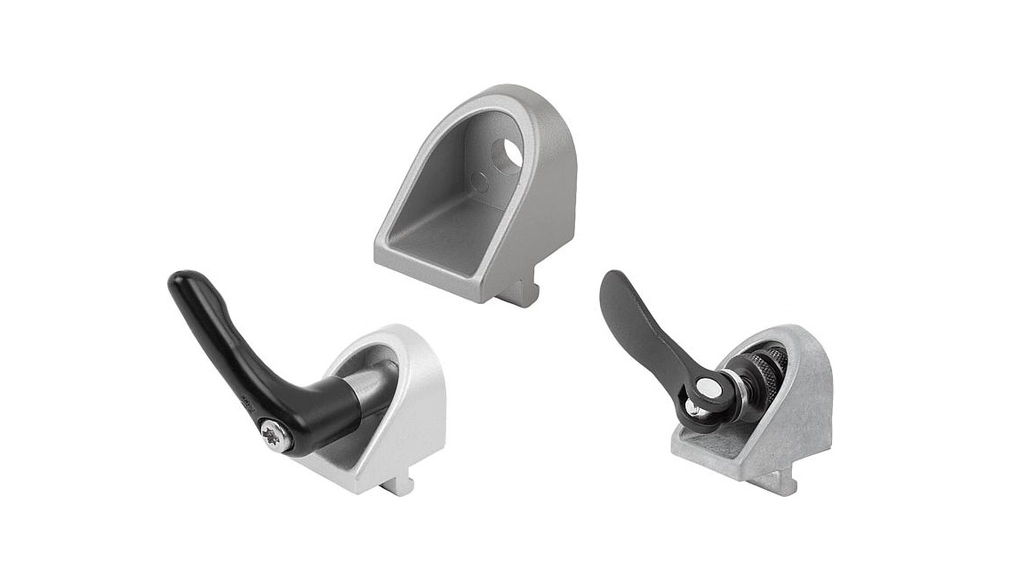

Clamping Angle.

K1049 - Clamping Angles

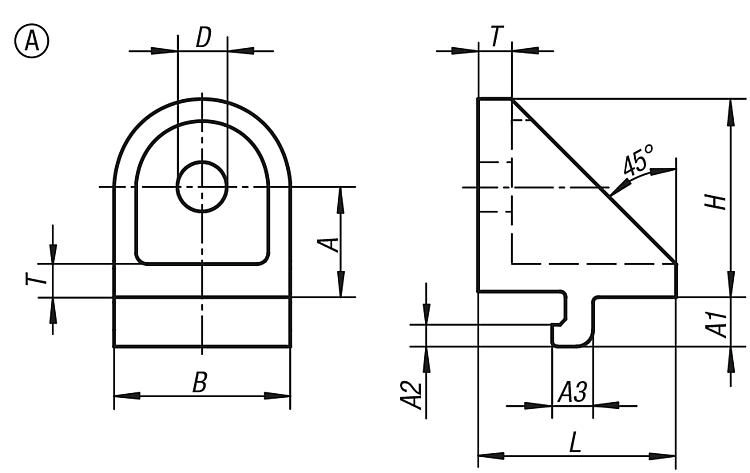

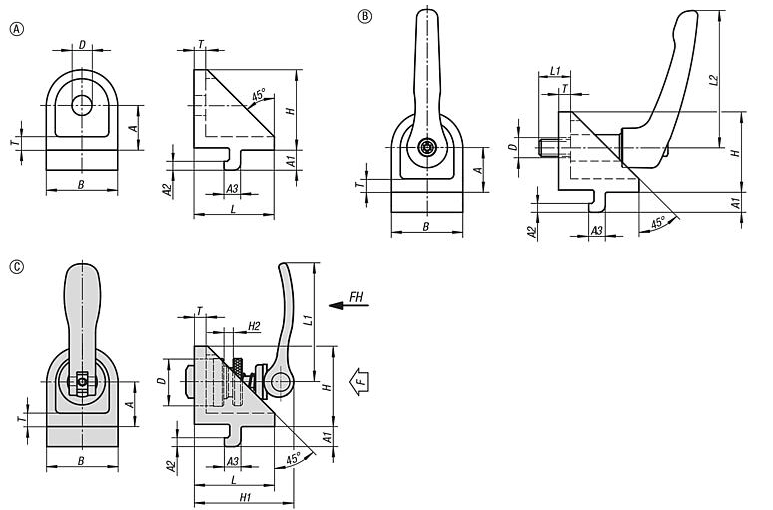

Line drawing placeholder

Move drawing here

A A1 A2 A3 B D D1 Form H H1 H2 L L1 L2 T Price (Exc. Tax) Stock Qty basket

Filters
K1049.06
View product 		15 6,3 3 5,7 24 7 -- A 27 -- -- 27 -- -- 5
£5.40
0
K1049.0606
View product 		15 6,3 3 5,7 24 7 M6 B 27 -- -- 27 13 40 5
£9.04
0
K1049.0615
View product 		15 6,3 3 5,7 24 15 -- C 27 34 6 27 36,2 -- 5
£41.57
0
K1049.08
View product 		20 9 4 7,5 32 9 -- A 36 -- -- 36 -- -- 6
£5.72
0
K1049.0808
View product 		20 9 4 7,5 32 9 M8 B 36 -- -- 36 18 65 6
£10.68
0
K1049.0820
View product 		20 9 4 7,5 32 20 -- C 36 44 8 36 52,3 -- 6
£47.64
0

Showing products per page


List view Grid view
£
£

Dispatch by 17/11/25

Item Code: K1049.06

Angle Bracket. 27x24x27mm. 6mm Slot Width. Zinc.

£5.40  Excl VAT £6.48  Inc VAT

Price breaks available

Text

Qty

Dispatch by 17/11/25

Item Code: K1049.0606

Angle Bracket. 27x24x27mm. 6mm Slot Width. With M6 Clamping Lever 40mm Length. Zinc.

£9.04  Excl VAT £10.85  Inc VAT

Price breaks available

Text

Qty

Dispatch by 17/11/25

Item Code: K1049.0615

Angle Bracket. 27x24x27mm. 6mm Slot Width. With Eccentric Clamp. Zinc.

£41.57  Excl VAT £49.88  Inc VAT

Price breaks available

Text

Qty

Dispatch by 17/11/25

Item Code: K1049.08

Angle Bracket. 36x32x36mm. 8mm Slot Width. Zinc.

£5.72  Excl VAT £6.86  Inc VAT

Price breaks available

Text

Qty

Dispatch by 17/11/25

Item Code: K1049.0808

Angle Bracket. 36x32x36mm. 8mm Slot Width. With M8 Clamping Lever 65mm Length. Zinc.

£10.68  Excl VAT £12.82  Inc VAT

Price breaks available

Text

Qty

Dispatch by 17/11/25

Item Code: K1049.0820

Angle Bracket. 36x32x36mm. 8mm Slot Width. With Eccentric Clamp. Zinc.

£47.64  Excl VAT £57.17  Inc VAT

Price breaks available

Text

Qty

Showing products per page

Angle Bracket. 27x24x27mm. 6mm Slot Width. Zinc.

Angle Bracket. 27x24x27mm. 6mm Slot Width. Zinc.

Dispatch by 17/11/25

Item Code: K1049.06

£5.40  Excl VAT £6.48  Inc VAT

Price breaks available

Text

Qty

Angle Bracket. 27x24x27mm. 6mm Slot Width. With M6 Clamping Lever 40mm Length. Zinc.

Angle Bracket. 27x24x27mm. 6mm Slot Width. With M6 Clamping Lever 40mm Length. Zinc.

Dispatch by 17/11/25

Item Code: K1049.0606

£9.04  Excl VAT £10.85  Inc VAT

Price breaks available

Text

Qty

Angle Bracket. 27x24x27mm. 6mm Slot Width. With Eccentric Clamp. Zinc.

Angle Bracket. 27x24x27mm. 6mm Slot Width. With Eccentric Clamp. Zinc.

Dispatch by 17/11/25

Item Code: K1049.0615

£41.57  Excl VAT £49.88  Inc VAT

Price breaks available

Text

Qty

Angle Bracket. 36x32x36mm. 8mm Slot Width. Zinc.

Angle Bracket. 36x32x36mm. 8mm Slot Width. Zinc.

Dispatch by 17/11/25

Item Code: K1049.08

£5.72  Excl VAT £6.86  Inc VAT

Price breaks available

Text

Qty

Angle Bracket. 36x32x36mm. 8mm Slot Width. With M8 Clamping Lever 65mm Length. Zinc.

Angle Bracket. 36x32x36mm. 8mm Slot Width. With M8 Clamping Lever 65mm Length. Zinc.

Dispatch by 17/11/25

Item Code: K1049.0808

£10.68  Excl VAT £12.82  Inc VAT

Price breaks available

Text

Qty

Angle Bracket. 36x32x36mm. 8mm Slot Width. With Eccentric Clamp. Zinc.

Angle Bracket. 36x32x36mm. 8mm Slot Width. With Eccentric Clamp. Zinc.

Dispatch by 17/11/25

Item Code: K1049.0820

£47.64  Excl VAT £57.17  Inc VAT

Price breaks available

Text

Qty
