Angle Bracket. 40x80mm. 8mm Slot Width. Zinc.

Item Code: K1045.088080

Angle Bracket. 40x80mm. 8mm Slot Width. Zinc.

Item Code: K1045.088080

Angle Bracket. 40x80mm. 8mm Slot Width. Zinc.

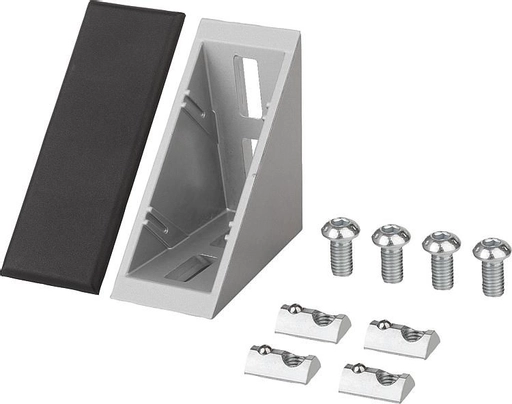

Material:
Angle die-cast zinc.
Screws and slot nuts steel.
End cap polyamide, fibreglass reinforced.
Version:
Angle painted aluminium tone.
Screws and slot nuts galvanized.
End cap black.
Note:

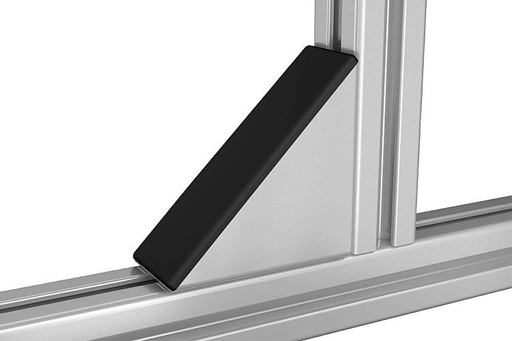

Suitable for reinforcing profile constructions and for frictional connection of profiles with each other without machining. Can also be used as fastening element (e.g. bracket) for any components.

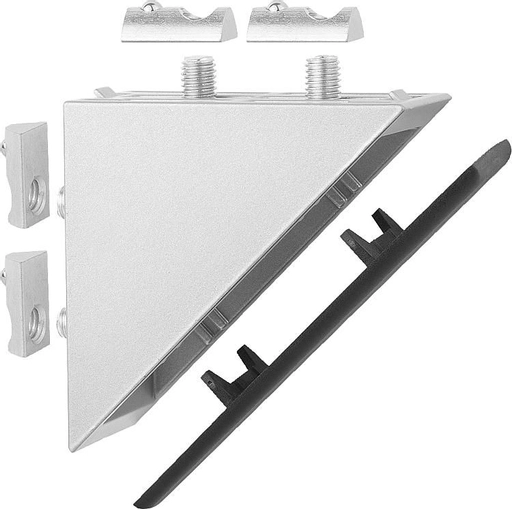

The angles have centring lugs for accurate and twist-proof mounting. The centring lugs can be removed if necessary by breaking off i.e. for mounting plates. The open side can be closed off with the end cap.

Quick Links

Dispatch by 02/08/25

A: 65,5

A1: 21,5

A2: 36

A3: 21,5

A4: 54,5

A5: 58,5

B: 38

D: 9

H: 76

H1: 78

L: 76

N: 8

T: 7

Version: 40 x 80

£9.48 ea. Excl VAT £11.38 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
25 +	£8.72	8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

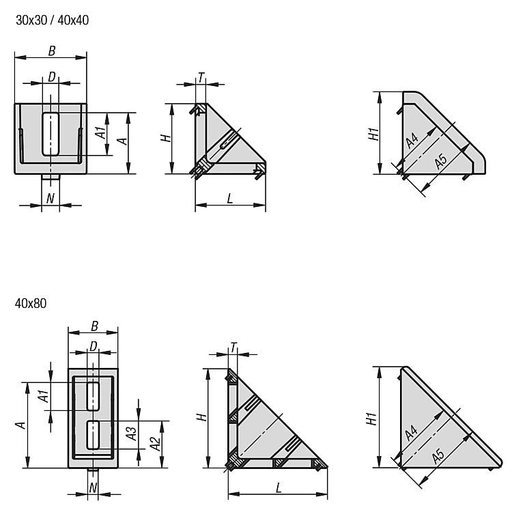

Product Dimensions

A	65,5
A1	21,5
A2	36
A3	21,5
A4	54,5
A5	58,5
B	38
D	9
H	76
H1	78
L	76
N	8
T	7
Version	40 x 80

CAD Download
