K1045 - Angle Sets Type I

K1045 - Angle Sets Type I

List view Grid view

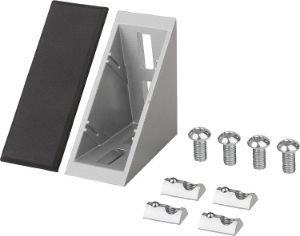

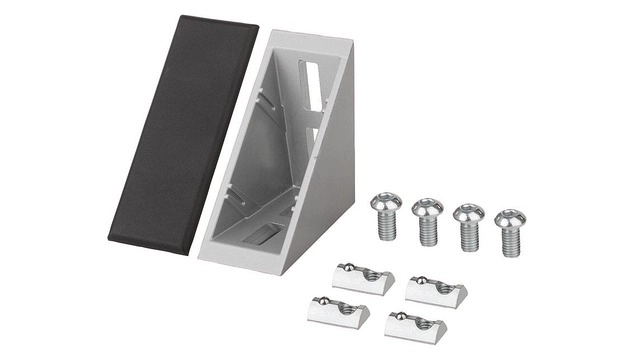

Material:
Angle die-cast zinc.
Screws and slot nuts steel.
End cap polyamide, fibreglass reinforced.

Version:
Angle painted aluminium tone.
Screws and slot nuts electro zinc-plated.
End cap black.

Note:
Suitable for reinforcing profile constructions and for frictional connection of profiles with each other without machining. Can also be used as fastening element (e.g. bracket) for any components.
The angles have centring lugs for accurate and twist-proof mounting. The centring lugs can be removed if necessary by breaking off i.e. for mounting plates. The open side can be closed off with the end cap.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

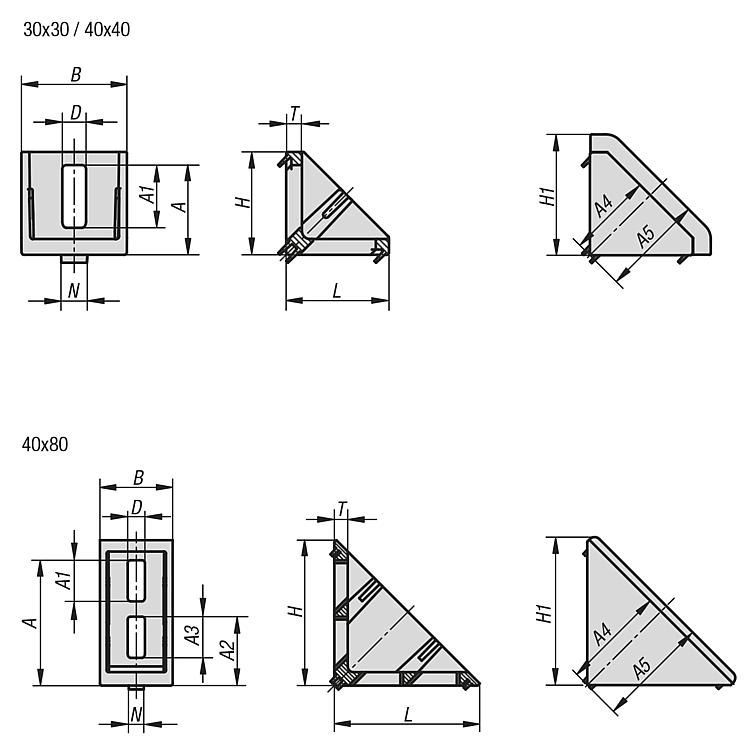

	A	A1	A2	A3	A4	A5	B	D	H	H1	L	N	T	Version	Price (Exc. Tax)	Stock
Filters
K1045.063030 View product	22,5	11	--	--	23	27	28	6,5	28	32	28	6	4	30 x 30	£4.45	0
K1045.084040 View product	34	24	--	--	32,5	39	40	9	39	46	39	8	6	40 x 40	£6.19	0
K1045.088080 View product	65,5	21,5	36	21,5	54,5	58,5	38	9	76	78	76	8	7	40 x 80	£9.75	0
