Item Code: K1038.1090

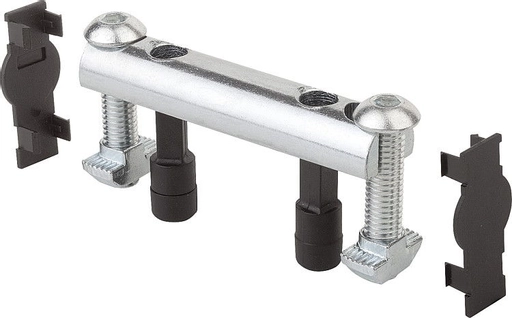

Pin Connector. 10mm Slot Width. 90mm Length.

Item Code: K1038.1090

Pin Connector. 10mm Slot Width. 90mm Length.

Material:
Pins, screws and T-nuts steel.
Locating pin und end caps polyamide, fibreglass reinforced.

Version:
Pins, screws and T-nuts galvanized.
Locating pin and end caps black.

Note:

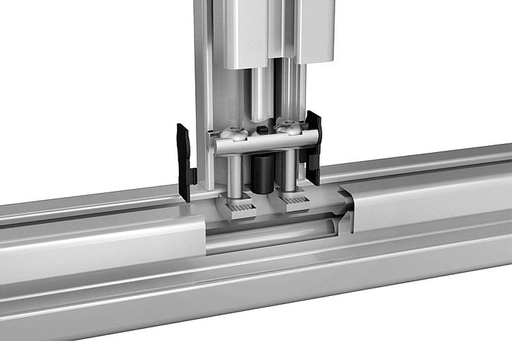

The connecting sets are used for connecting two aluminium profiles at right angles. They allow free positioning of the profiles. Suitable for high loads and absorbing torsion forces.

Low workload. The connecting set only requires one 17 mm hole drilled one side.

Quick Links

Dispatch by 09/06/25

17
90
22,5
87
73
45
10

£4.79  ea. Excl VAT £5.75  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
30 + £4.41 8%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Pins, screws and T-nuts steel.
Locating pin und end caps polyamide, fibreglass reinforced.

Version:
Pins, screws and T-nuts galvanized.
Locating pin and end caps black.

Note:
The connecting sets are used for connecting two aluminium profiles at right angles. They allow free positioning of the profiles. Suitable for high loads and absorbing torsion forces.

Low workload. The connecting set only requires one 17 mm hole drilled one side.

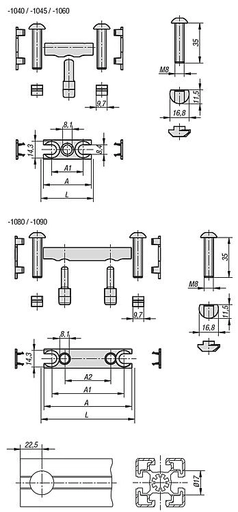

D17
L90
L122,5
A87
A173
A245
Slot width10
STP
