K1038 - Pin Connector Sets For Aluminium Profiles

List view Grid view
K1038 - Pin Connector Sets For Aluminium Profiles

Material:
Pins, screws and T-nuts steel.
Locating pin und end caps polyamide, fibreglass reinforced.

Version:
Pins, screws and T-nuts electro zinc-plated.
Locating pin and end caps black.

Note:
The connecting sets are used to connect two aluminium profiles at right angles. They allow free position of the profiles. Suitable for high loads and torsional forces.

Low processing workload. The connecting set requires only one Ø17 mm hole drilled in one end for installation.
The connecting set K1038.0828 requires only one Ø11 mm hole drilled in one end for installation.

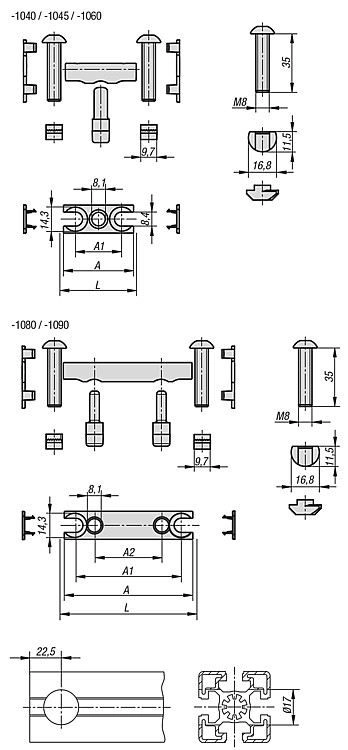

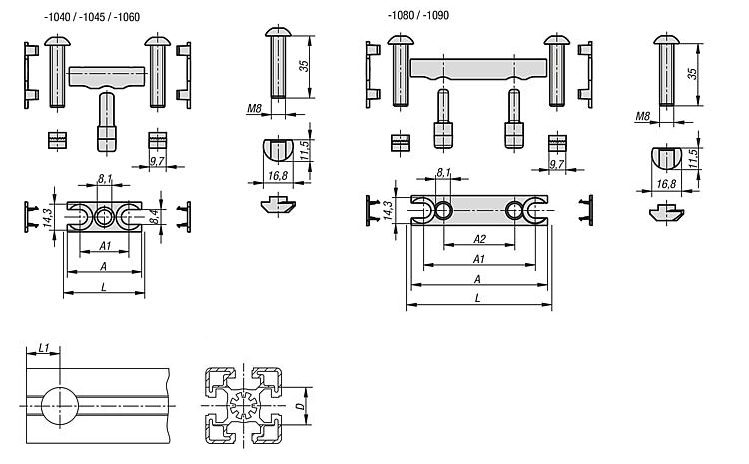

Pin Connector for aluminium profile.

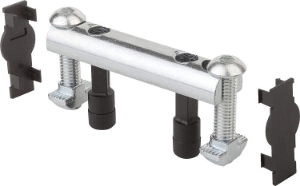

Pin Connector.

K1038 - Pin Connector Sets For Aluminium Profiles

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm and Over

Choose Type

Hook

Latch

Vertical Latch

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Cabinet Cooler Only

Cabinet Cooler For Continuous Operation

Cabinet Cooler With Thermostat Control

Style

Air Knife Only

Air Knife With Filter and Shim Set

Air Knife With Plumbing Kit Installed, Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Air Knife Only

Air Knife With Filter and Shim Set

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Line Vac Only

Line Vac With Filter and Bracket

Style

Air Amplifier Only

Air Amplifier With Filter and Shim Set

Style

Air Amplifier Only

Air Amplifier With Filter

Item

Filter / Regulator

Air Amplifier Shim Set

Item

Filter / Regulator

Vortex Tube Generator

Vortex Tube Cold Silencer

Vortex Tube Hot Silencer

Style

Vortex Tube Only

Vortex Tube With Generator Kit, Muffler, Tubing And Filter

Clamp Type

Horizontal

Vertical

Latch

Vertical Latch

Clamp Type

Vertical

Press

Push-Pull

Clamp Type

Horizontal

Vertical

Hook

Latch

Vertical Latch

Push-Pull

Flip-Flop

Line drawing placeholder

Move drawing here

A A1 A2 D L L1 Slot width Price (Exc. Tax) Stock Qty basket

Filters

K1038.0828
View product
28 18 -- 11 -- 18 8
£4.86
0
K1038.1040
View product
37 23 -- 17 40 22,5 10
£3.82
0
K1038.1045
View product
42 28 -- 17 45 22,5 10
£3.82
0
K1038.1060
View product
57 43 -- 17 60 22,5 10
£4.78
0
K1038.1080
View product
77 63 40 17 80 22,5 10
£4.93
0
K1038.1090
View product
87 73 45 17 90 22,5 10
£4.93
0
