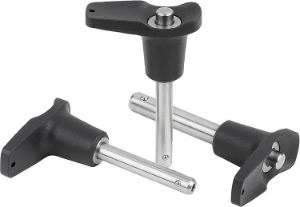

K0792 - Ball Lock Pins With L-Grip Self-Locking In Plastic & Stainless Steel

K0792 - Ball Lock Pins With L-Grip Self-Locking In Plastic & Stainless Steel

List view Grid view

Material:

Grip thermoplastic.
Push button 1.4305 stainless steel.
Pin 1.4305 stainless steel.
Balls 1.4125 stainless steel.
Spring 1.4310 stainless steel wire.

Version:
Grip black grey or traffic red RAL 3020.
Stainless steel bright.

Note:
Ball lock pins are used for easy fastening or joining of components or workpieces.
The two balls are disengaged by pressing the push button and the pin can be slipped into holes in the workpieces. When the push button is released, the balls lock the connection securely. If required, the ball lock pins can be fitted with a retaining cable.

Shear force double shear (F) = S · τ aB max.

The values given for the shear force are the theoretical breaking load.
These are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.

The load values have been calculated in accordance with DIN 50141. Each user must determine individually whether the ball lock pin is suitable for the respective application.

Different materials in which the ball lock pins are used, weather conditions and wear can influence the determined values.

Accessory:
Bushes for ball lock pins K0724
Safety spiral cable K0367
Retaining cable with loop K0367
Key ring K0367

Ball Lock Pin With L Grip. 6mm Pin Diameter. 50mm Clamping Length. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

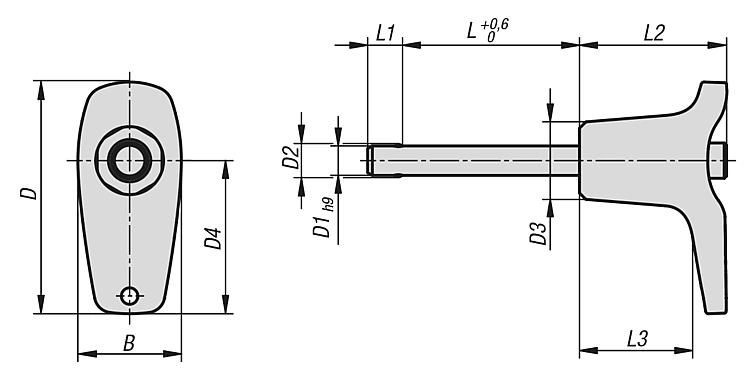

	B	D	D1	D2	D3	D4	L	L1	L2	L3	L5	Receiving, hole, H11	Price (Exc. Tax)	Stock
Filters
K0792.102605010 View product	17,6	39,3	5	5,5	13,2	26	10	5,9	25	19,2	15,9	5	£17.25	0
K0792.102605015 View product	17,6	39,3	5	5,5	13,2	26	15	5,9	25	19,2	20,9	5	£17.25	0
K0792.102605020 View product	17,6	39,3	5	5,5	13,2	26	20	5,9	25	19,2	25,9	5	£17.25	0
K0792.102605025 View product	17,6	39,3	5	5,5	13,2	26	25	5,9	25	19,2	30,9	5	£17.25	0
K0792.102605030 View product	17,6	39,3	5	5,5	13,2	26	30	5,9	25	19,2	35,9	5	£18.30	0
K0792.102606010 View product	17,6	39,3	6	6,85	13,2	26	10	6,8	25	19,2	16,8	6	£17.33	0
K0792.102606015 View product	17,6	39,3	6	6,85	13,2	26	15	6,8	25	19,2	21,8	6	£17.33	0
K0792.102606020 View product	17,6	39,3	6	6,85	13,2	26	20	6,8	25	19,2	26,8	6	£17.33	0
K0792.102606025 View product	17,6	39,3	6	6,85	13,2	26	25	6,8	25	19,2	31,8	6	£17.33	0
K0792.102606030 View product	17,6	39,3	6	6,85	13,2	26	30	6,8	25	19,2	36,8	6	£18.30	0
K0792.102606035 View product	17,6	39,3	6	6,85	13,2	26	35	6,8	25	19,2	41,8	6	£18.30	0
K0792.102606040 View product	17,6	39,3	6	6,85	13,2	26	40	6,8	25	19,2	46,8	6	£18.30	0
K0792.102606045 View product	17,6	39,3	6	6,85	13,2	26	45	6,8	25	19,2	51,8	6	£18.30	0
K0792.102606050 View product	17,6	39,3	6	6,85	13,2	26	50	6,8	25	19,2	56,8	6	£18.30	0
K0792.103508020 View product	23	52,2	8	9,5	17,3	35,4	20	7,8	33	24,2	27,8	8	£18.84	0
K0792.103508025 View product	23	52,2	8	9,5	17,3	35,4	25	7,8	33	24,2	32,8	8	£18.84	0
K0792.103508030 View product	23	52,2	8	9,5	17,3	35,4	30	7,8	33	24,2	37,8	8	£20.21	0
K0792.103508035 View product	23	52,2	8	9,5	17,3	35,4	35	7,8	33	24,2	42,8	8	£20.21	2
K0792.103508040 View product	23	52,2	8	9,5	17,3	35,4	40	7,8	33	24,2	47,8	8	£20.21	0
K0792.103508045 View product	23	52,2	8	9,5	17,3	35,4	45	7,8	33	24,2	52,8	8	£20.21	0
K0792.103508050 View product	23	52,2	8	9,5	17,3	35,4	50	7,8	33	24,2	57,8	8	£20.21	0
K0792.103510020 View product	23	52,2	10	12	17,3	35,4	20	8,9	33	24,2	28,9	10	£29.30	0
K0792.103510025 View product	23	52,2	10	12	17,3	35,4	25	8,9	33	24,2	33,9	10	£29.30	0
K0792.103510030 View product	23	52,2	10	12	17,3	35,4	30	8,9	33	24,2	38,9	10	£30.53	0
K0792.103510035 View product	23	52,2	10	12	17,3	35,4	35	8,9	33	24,2	43,9	10	£30.53	0
K0792.103510040 View product	23	52,2	10	12	17,3	35,4	40	8,9	33	24,2	48,9	10	£30.53	0
K0792.103510045 View product	23	52,2	10	12	17,3	35,4	45	8,9	33	24,2	53,9	10	£30.53	0
K0792.103510050 View product	23	52,2	10	12	17,3	35,4	50	8,9	33	24,2	58,9	10	£30.53	0
K0792.103510060 View product	23	52,2	10	12	17,3	35,4	60	8,9	33	24,2	68,9	10	£32.14	0
K0792.104712025 View product	33	70,2	12	14,5	26,3	47	25	9,9	39,5	28,4	34,9	12	£29.60	0
K0792.104712030 View product	33	70,2	12	14,5	26,3	47	30	9,9	39,5	28,4	39,9	12	£31.19	0
K0792.104712035 View product	33	70,2	12	14,5	26,3	47	35	9,9	39,5	28,4	44,9	12	£31.19	0
K0792.104712040 View product	33	70,2	12	14,5	26,3	47	40	9,9	39,5	28,4	49,9	12	£31.19	0
K0792.104712045 View product	33	70,2	12	14,5	26,3	47	45	9,9	39,5	28,4	54,9	12	£31.19	0
K0792.104712050 View product	33	70,2	12	14,5	26,3	47	50	9,9	39,5	28,4	59,9	12	£31.19	0
K0792.104712060 View product	33	70,2	12	14,5	26,3	47	60	9,9	39,5	28,4	69,9	12	£32.78	0
K0792.104712070 View product	33	70,2	12	14,5	26,3	47	70	9,9	39,5	28,4	79,9	12	£32.78	0
K0792.104712080 View product	33	70,2	12	14,5	26,3	47	80	9,9	39,5	28,4	89,9	12	£34.21	0
K0792.104716030 View product	33	70,2	16	19	26,3	47	30	13,1	39,5	28,4	43,1	16	£50.12	0
K0792.104716035 View product	33	70,2	16	19	26,3	47	35	13,1	39,5	28,4	48,1	16	£50.90	0
K0792.104716040 View product	33	70,2	16	19	26,3	47	40	13,1	39,5	28,4	53,1	16	£50.90	0
K0792.104716045 View product	33	70,2	16	19	26,3	47	45	13,1	39,5	28,4	58,1	16	£50.90	0
K0792.104716050 View product	33	70,2	16	19	26,3	47	50	13,1	39,5	28,4	63,1	16	£50.90	0
K0792.104716060 View product	33	70,2	16	19	26,3	47	60	13,1	39,5	28,4	73,1	16	£54.11	0
K0792.104716070 View product	33	70,2	16	19	26,3	47	70	13,1	39,5	28,4	83,1	16	£54.11	0
K0792.104716080 View product	33	70,2	16	19	26,3	47	80	13,1	39,5	28,4	93,1	16	£57.26	0
