Item Code: K0747.14206100

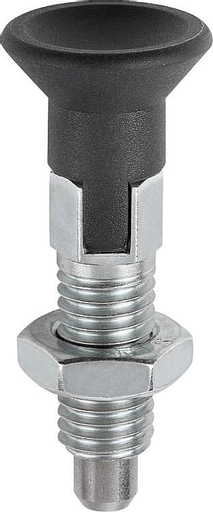

Indexing Plunger. Thread Size M10. Pin Diameter 6mm. With Locking Slot. Not Hardened. Stainless Steel.

Indexing Plunger. Thread Size M10. Pin Diameter 6mm. With Locking Slot. Not Hardened. Stainless Steel.

Item Code: K0747.14206100

Indexing Plunger. Thread Size M10. Pin Diameter 6mm. With Locking Slot. Not Hardened. Stainless Steel.

Material:
Steel version:
Indexing pin not hardened.
Threaded sleeve 1.0718.
Indexing pin 1.4305.
Stainless steel version:
Indexing pin not hardened.
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Mushroom knob black grey thermoplastic.
Version:
Steel version:
Indexing pin hardened.
Threaded sleeve blue passivated.
Indexing pin bright.
Stainless steel version:
Indexing pin not hardened.
Steel parts bright.
Note:
This article is a cost-efficient alternative to the existing indexing plungers. It is suitable for applications which require less precision. The max. tightening torque should be observed when assembling.

Quick Links

Dispatch by 31/07/25

6
M10
18
1.8
47.5
20
8
17
with locknut
Yes
Stainless Steel
15
8
15
6

£5.95  ea. Excl VAT £7.14  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
25 + £4.88 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Steel version:
Indexing pin not hardened.
Threaded sleeve 1.0718.
Indexing pin 1.4305.
Stainless steel version:
Indexing pin not hardened.
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Mushroom knob black grey thermoplastic.
Version:
Steel version:
Indexing pin hardened.
Threaded sleeve blue passivated.
Indexing pin bright.
Stainless steel version:
Indexing pin not hardened.
Steel parts bright.
Note:
This article is a cost-efficient alternative to the existing indexing plungers. It is suitable for applications which require less precision. The max. tightening torque should be observed when assembling.

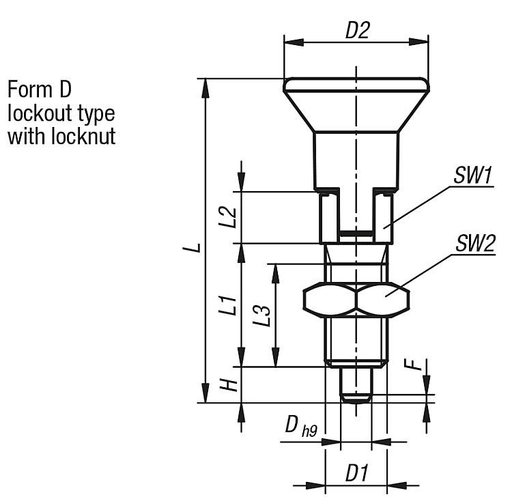

D6
D1M10
D218
Fx30°1.8
L47.5
L120
L28
L317
Locknutwith locknut
LockoutYes
MaterialStainless Steel
Spring force final pressure F2 approx. N15
Spring force initial pressure F1 approx. N8
Tightening torque max. Nm15
Travel S6
STP
TypeLockout
Body MaterialStainless Steel
Pin Diameter6mm
Pin Length6mm
