Back to K0706 - Shoulder Screws With Hexagon Head

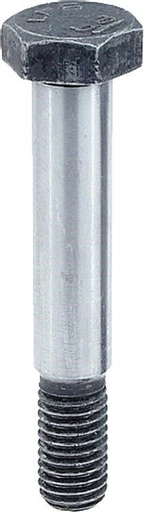

Hex Head Shoulder Screw. M8 Thread. 35mm Long. Steel.

Item Code: K0706.09X35

Hex Head Shoulder Screw. M8 Thread. 35mm Long. Steel.

K0706-Shoulder-Screws-With-Hexagon-Head_1200x1200.jpg?

K0706-Shoulder-Screws-With-Hexagon-Head-Drawing_1200x1200.jpg?

Item Code: K0706.09X35

Hex Head Shoulder Screw. M8 Thread. 35mm Long. Steel.

Material:
Steel.
Version:
Grade 8.8, black oxidised.
Shaft OD ground.
Note:
Shoulder screws are used if the screw connection is subjected to transverse forces or if workpieces must be positioned relative to each other.

Quick Links

4 in stock

D: M8

L: 35

D1: 9

G: M8

SW: 13

DIN: similar to DIN 609

K: 5,3

E: 14,38

Ls min.: 18

Lg max.: 21,6

Surface finish, body: black oxidised

£2.35 ea. Excl VAT £2.82 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£2.02	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

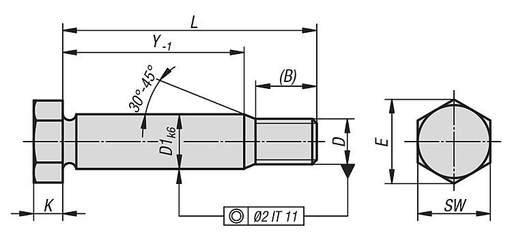

Product Dimensions

D	M8
L	35
D1	9
G	M8
SW	13
DIN	similar to DIN 609
K	5,3
E	14,38
Ls min.	18
Lg max.	21,6
Surface finish, body	black oxidised

Downloads

STP

Specifications

Thread Size	M8
Length	35mm
Material	Steel

Hex Head Shoulder Screw. M8 Thread. 35mm Long. Steel.

Hex Head Shoulder Screw. M8 Thread. 35mm Long. Steel.
