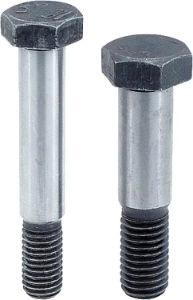

K0706 - Shoulder Screws With Hexagon Head

K0706 - Shoulder Screws With Hexagon Head

Material:
Steel.
Version:
Grade 8.8, black oxidised.
Shaft OD ground.
Note:
Shoulder screws are used if the screw connection is subjected to transverse forces or if workpieces must be positioned relative to each other.

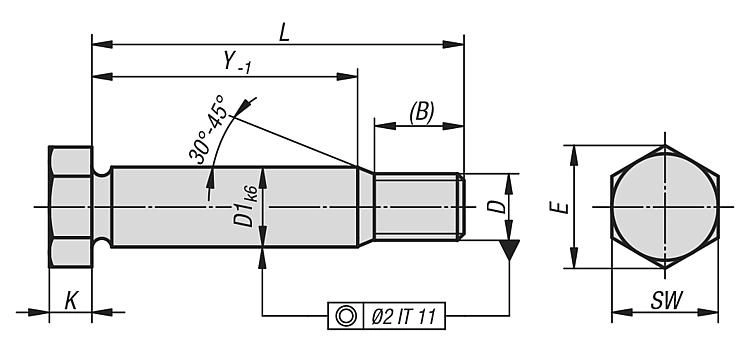

Hex Head Shoulder Screw. M16 Thread. 40mm Long. Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Style

Line drawing placeholder

Move drawing here

	D	D1	DIN	E	G	K	L	Lg max.	Ls min.	Surface finish, body	SW	Price (Exc. Tax)	Stock
Filters
K0706.09X25 View product	M8	9	similar to DIN 609	14,38	M8	5,3	25	11,6	8	black oxidised	13	£1.90	0
K0706.09X30 View product	M8	9	similar to DIN 609	14,38	M8	5,3	30	16,6	13	black oxidised	13	£2.05	14
K0706.09X35 View product	M8	9	similar to DIN 609	14,38	M8	5,3	35	21,6	18	black oxidised	13	£2.42	4
K0706.09X40 View product	M8	9	similar to DIN 609	14,38	M8	5,3	40	26,6	23	black oxidised	13	£2.20	0
K0706.09X45 View product	M8	9	similar to DIN 609	14,38	M8	5,3	45	31,6	28	black oxidised	13	£2.39	0
K0706.09X50 View product	M8	9	similar to DIN 609	14,38	M8	5,3	50	36,6	33	black oxidised	13	£2.31	0
K0706.09X60 View product	M8	9	similar to DIN 609	14,38	M8	5,3	60	44,6	41	black oxidised	13	£3.05	0
K0706.11X100 View product	M10	11	similar to DIN 609	17,77	M10	6,4	100	81,9	78	black oxidised	17	£7.00	0
K0706.11X30 View product	M10	11	similar to DIN 609	17,77	M10	6,4	30	13,9	10	black oxidised	17	£2.15	0
K0706.11X35 View product	M10	11	similar to DIN 609	17,77	M10	6,4	35	18,9	15	black oxidised	17	£2.23	98
K0706.11X40 View product	M10	11	similar to DIN 609	17,77	M10	6,4	40	23,9	20	black oxidised	17	£2.01	0
K0706.11X45 View product	M10	11	similar to DIN 609	17,77	M10	6,4	45	28,9	25	black oxidised	17	£1.74	0
K0706.11X50 View product	M10	11	similar to DIN 609	17,77	M10	6,4	50	33,9	30	black oxidised	17	£2.49	0
K0706.11X60 View product	M10	11	similar to DIN 609	17,77	M10	6,4	60	41,9	38	black oxidised	17	£2.49	0
K0706.11X70 View product	M10	11	similar to DIN 609	17,77	M10	6,4	70	51,9	48	black oxidised	17	£3.46	24
K0706.11X80 View product	M10	11	similar to DIN 609	17,77	M10	6,4	80	61,9	58	black oxidised	17	£3.55	0
K0706.11X90 View product	M10	11	similar to DIN 609	17,77	M10	6,4	90	71,9	68	black oxidised	17	£4.98	24
K0706.13X100 View product	M12	13	similar to DIN 609	19,85	M12	7,5	100	78,7	74,5	black oxidised	19	£4.59	0
K0706.13X35 View product	M12	13	similar to DIN 609	19,85	M12	7,5	35	15,7	11,5	black oxidised	19	£2.58	0
K0706.13X40 View product	M12	13	similar to DIN 609	19,85	M12	7,5	40	20,7	16,5	black oxidised	19	£3.14	0
K0706.13X45 View product	M12	13	similar to DIN 609	19,85	M12	7,5	45	25,7	21,5	black oxidised	19	£2.82	0
K0706.13X50 View product	M12	13	similar to DIN 609	19,85	M12	7,5	50	30,7	26,5	black oxidised	19	£3.03	0
K0706.13X60 View product	M12	13	similar to DIN 609	19,85	M12	7,5	60	38,7	34,5	black oxidised	19	£3.14	0
K0706.13X70 View product	M12	13	similar to DIN 609	19,85	M12	7,5	70	48,7	44,5	black oxidised	19	£4.33	0
K0706.13X80 View product	M12	13	similar to DIN 609	19,85	M12	7,5	80	58,7	54,5	black oxidised	19	£4.35	0
K0706.13X90 View product	M12	13	similar to DIN 609	19,85	M12	7,5	90	68,7	64,5	black oxidised	19	£4.51	0
K0706.17X100 View product	M16	17	similar to DIN 609	26,17	M16	10	100	74	69,5	black oxidised	24	£7.49	0
K0706.17X40 View product	M16	17	similar to DIN 609	26,17	M16	10	40	16	11,5	black oxidised	24	£5.31	26
K0706.17X45 View product	M16	17	similar to DIN 609	26,17	M16	10	45	21	16,5	black oxidised	24	£3.71	26
K0706.17X50 View product	M16	17	similar to DIN 609	26,17	M16	10	50	26	21,5	black oxidised	24	£4.78	22
K0706.17X60 View product	M16	17	similar to DIN 609	26,17	M16	10	60	34	29,5	black oxidised	24	£5.01	0
K0706.17X70 View product	M16	17	similar to DIN 609	26,17	M16	10	70	44	39,5	black oxidised	24	£4.84	20
K0706.17X80 View product	M16	17	similar to DIN 609	26,17	M16	10	80	54	49,5	black oxidised	24	£5.48	0
K0706.17X90 View product	M16	17	similar to DIN 609	26,17	M16	10	90	64	59,5	black oxidised	24	£6.70	0
K0706.21X100 View product	M20	21	similar to DIN 609	32,95	M20	12,5	100	70,7	65,5	black oxidised	30	£8.55	0
K0706.21X120 View product	M20	21	similar to DIN 609	32,95	M20	12,5	120	90,7	85,5	black oxidised	30	£10.16	0
K0706.21X50 View product	M20	21	similar to DIN 609	32,95	M20	12,5	50	22,7	17,5	black oxidised	30	£7.54	0
K0706.21X60 View product	M20	21	similar to DIN 609	32,95	M20	12,5	60	30,7	25,5	black oxidised	30	£7.51	0
K0706.21X70 View product	M20	21	similar to DIN 609	32,95	M20	12,5	70	40,7	35,5	black oxidised	30	£8.00	0
K0706.21X80 View product	M20	21	similar to DIN 609	32,95	M20	12,5	80	50,7	45,5	black oxidised	30	£8.57	0
K0706.21X90 View product	M20	21	similar to DIN 609	32,95	M20	12,5	90	60,7	55,5	black oxidised	30	£9.14	0
K0706.25X100 View product	M24	25	similar to DIN 609	39,35	M24	15	100	64,8	59	black oxidised	36	£11.10	0
K0706.25X120 View product	M24	25	similar to DIN 609	39,35	M24	15	120	84,8	79	black oxidised	36	£11.86	0
K0706.25X60 View product	M24	25	similar to DIN 609	39,35	M24	15	60	24,8	19	black oxidised	36	£8.51	13
K0706.25X70 View product	M24	25	similar to DIN 609	39,35	M24	15	70	34,8	29	black oxidised	36	£9.64	0
K0706.25X80 View product	M24	25	similar to DIN 609	39,35	M24	15	80	44,8	39	black oxidised	36	£10.03	0
K0706.25X90 View product	M24	25	similar to DIN 609	39,35	M24	15	90	54,8	49	black oxidised	36	£10.47	0
