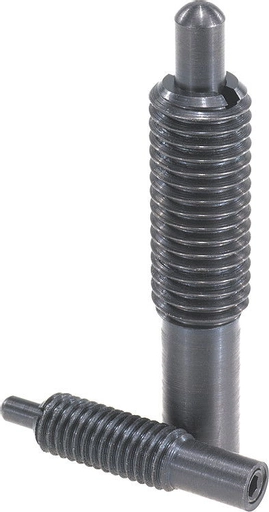

Spring Plunger. M8 Thread. 30mm Long. 3.5mm Pin Diameter. 8N Spring Force. Steel.

Item Code: K0657.608X30

Spring Plunger. M8 Thread. 30mm Long. 3.5mm Pin Diameter. 8N Spring Force. Steel.

03040-608-Federnde-Druckstuecke-lange-Ausfuehrung-Spring-plungers-long-version_1200x1200.jpg?

Item Code: K0657.608X30

Spring Plunger. M8 Thread. 30mm Long. 3.5mm Pin Diameter. 8N Spring Force. Steel.

Material:
Sleeve steel grade 5.8.
Thrust pin steel.
Spring steel grade D.

Version:
Black oxidised.
Thrust pin hardened.

Note:

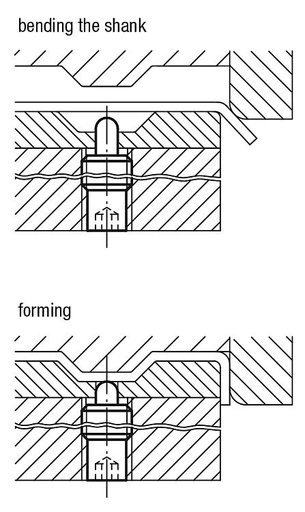

These spring plungers are chiefly used as ejectors and spring stops in machine construction.

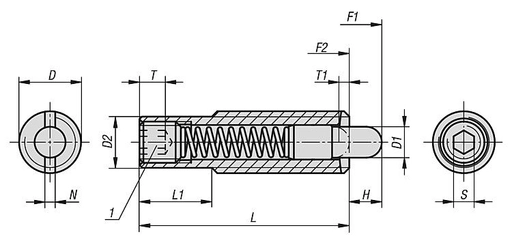

Design reference:
1) grub screw glued in

Quick Links

Dispatch by 08/07/25

D: M8

D1: 3,5

D2: 6,2

H: 6

L: 30

L1: 10

N: 1,2

S: 2,5

Spring force initial pressure F1 approx. N: 8

Spring force final pressure F2 approx. N: 20

T1: 1,4

£15.46 ea. Excl VAT £18.55 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£12.68	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

D	M8
D1	3,5
D2	6,2
H	6
L	30
L1	10
N	1,2
S	2,5
Spring force initial pressure F1 approx. N	8
Spring force final pressure F2 approx. N	20
T1	1,4

Downloads

STP

Specifications

Thread Size / Body Diameter	M8
Length	30mm
Body Material	Steel
Ball / Pin Material	Steel
Thread Lock	No

Spring Plunger. M8 Thread. 30mm Long. 3.5mm Pin Diameter. 8N Spring Force. Steel.
