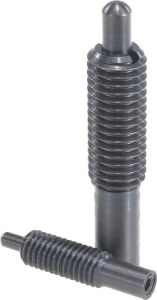

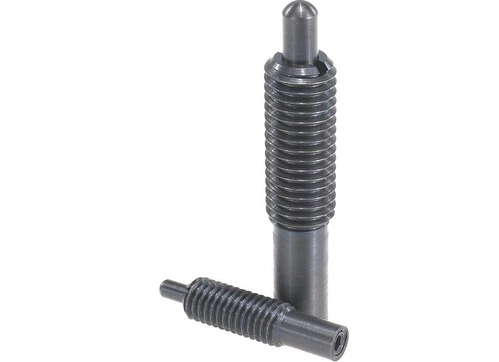

K0657 - Spring Plungers Long Version Steel M8-M16

List view Grid view
K0657 - Spring Plungers Long Version Steel M8-M16

Material:
Sleeve steel grade 5.8.
Thrust pin steel.
Spring steel grade D.

Version:
Black oxidised.
Thrust pin hardened.

Note:
These spring plungers are chiefly used as ejectors and spring stops in machine construction.

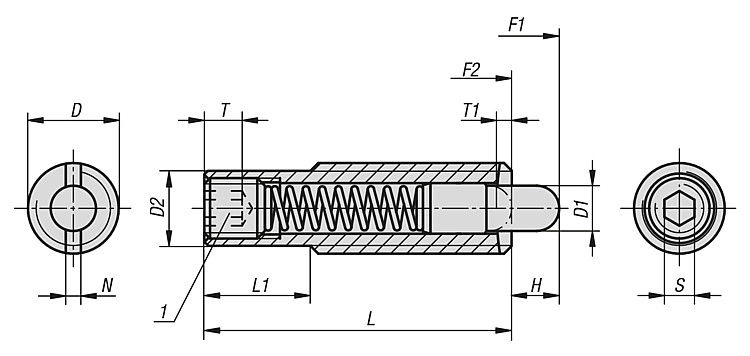

Design reference:
1) grub screw glued in


Spring Plunger. M8 Thread. 30mm Long. 3.5mm Pin Diameter. 8N Spring Force. Steel.

K0657 - Spring Plungers Long Version Steel M8-M16

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm+

Choose Type

Hook

Latch

Vertical Latch

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.608X30

View product

Spring Plunger. M8 Thread. 30mm Long. 3.5mm Pin Diameter. 8N Spring Force. Steel.

 M8 30 10 3,5 6 6,2 2,5 1,2 1,4 8 20 £15.46
Excl VAT £18.55
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.608X40

View product

Spring Plunger. Thread M8. Length 40mm. Pin Diameter 3.5mm. Spring Force 10N. Steel.

 M8 40 20 3,5 8 6,2 2,5 1,2 1,4 10 28 £17.72
Excl VAT £21.26
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.608X50

View product

Spring Plunger. Thread M8. Length 50mm. Pin Diameter 3.5mm. Spring Force 12N. Steel.

 M8 50 30 3,5 10 6,2 2,5 1,2 1,4 12 38 £20.62
Excl VAT £24.74
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.608X60

View product

Spring Plunger. Thread M8. Length 60mm. Pin Diameter 3.5mm. Spring Force 15N. Steel.

 M8 60 40 3,5 15 6,2 2,5 1,2 1,4 15 45 £25.01
Excl VAT £30.01
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.610X40

View product

Spring Plunger. Thread M10. Length 40mm. Pin Diameter 4mm. Spring Force 12N. Steel.

 M10 40 10 4 8 8 3 1,6 1,4 12 30 £17.01
Excl VAT £20.41
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.610X50

View product

Spring Plunger. Thread M10. Length 50mm. Pin Diameter 4mm. Spring Force 16N. Steel.

 M10 50 20 4 10 8 3 1,6 1,4 16 46 £19.45
Excl VAT £23.34
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.610X60

View product

Spring Plunger. Thread M10. Length 60mm. Pin Diameter 4mm. Spring Force 20N. Steel.

 M10 60 30 4 15 8 3 1,6 1,4 20 55 £22.39
Excl VAT £26.87
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.610X80

View product

Spring Plunger. Thread M10. Length 80mm. Pin Diameter 4mm. Spring Force 25N. Steel.

 M10 80 50 4 20 8 3 1,6 1,4 25 65 £26.76
Excl VAT £32.11
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.612X100

View product

Spring Plunger. Thread M12. Length 100mm. Pin Diameter 6mm. Spring Force 40N. Steel.

 M12 100 70 6 25 9,6 4 2 2 40 102 £29.03
Excl VAT £34.84
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.612X50

View product

Spring Plunger. Thread M12. Length 50mm. Pin Diameter 6mm. Spring Force 20N. Steel.

 M12 50 20 6 10 9,6 4 2 2 20 50 £19.32
Excl VAT £23.18
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.612X60

View product

Spring Plunger. Thread M12. Length 60mm. Pin Diameter 6mm. Spring Force 25N. Steel.

 M12 60 30 6 15 9,6 4 2 2 25 76 £21.72
Excl VAT £26.06
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.612X80

View product

Spring Plunger. Thread M12. Length 80mm. Pin Diameter 6mm. Spring Force 35N. Steel.

 M12 80 50 6 20 9,6 4 2 2 35 102 £24.64
Excl VAT £29.57
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.616X100

View product

Spring Plunger. Thread M16. Length 100mm. Pin Diameter 7.5mm. Spring Force 30N. Steel.

 M16 100 70 7,5 30 13,4 5 2,5 2,5 30 120 £36.24
Excl VAT £43.49
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.616X120

View product

Spring Plunger. Thread M16. Length 120mm. Pin Diameter 7.5mm. Spring Force 20N. Steel.

 M16 120 90 7,5 40 13,4 5 2,5 2,5 20 130 £41.92
Excl VAT £50.30
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.616X60

View product

Spring Plunger. Thread M16. Length 60mm. Pin Diameter 7.5mm. Spring Force 30N. Steel.

 M16 60 30 7,5 12 13,4 5 2,5 2,5 30 64 £20.73
Excl VAT £24.88
Inc VAT

0

Dispatched
09/06/25

D

L

L1

D1

H

D2

S

N

T1

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

 Price Qty Compare

FILTERS







K0657.616X80

View product

Spring Plunger. Thread M16. Length 80mm. Pin Diameter 7.5mm. Spring Force 30N. Steel.

 M16 80 50 7,5 20 13,4 5 2,5 2,5 30 110 £24.58
Excl VAT £29.50
Inc VAT

0

Dispatched
09/06/25
