Item Code: K0582.14

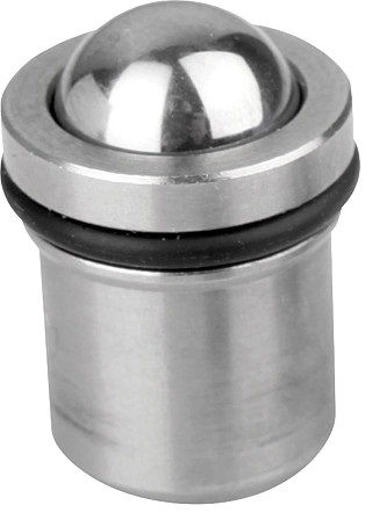

Spring Plunger With O Ring. 14mm Diameter. 16mm Long. 15N Spring Force. Stainless Steel.

Item Code: K0582.14

Spring Plunger With O Ring. 14mm Diameter. 16mm Long. 15N Spring Force. Stainless Steel.

Material:
Sleeve, spring and ball in stainless steel.
O-ring NBR. Surface finish:
Sleeve natural finish. Ball hardened, natural finish.
O-ring black.
Note:
These spring plungers with o-ring are suitable for overhead installation or for installating in difficult to access positions. They can be pressed into the location hole by hand or using simple assembly tools. The O-ring holds the plunger in place and prevents it falling out. Other components can be easily installed without the need for further assembly aids.

Quick Links

41 in stock

14
13,95
16
2,5
5,5
10
3,5
1,8
12
12,1
2
15
25

£3.32  ea. Excl VAT £3.98  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
30 + £2.79 16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Sleeve, spring and ball in stainless steel.
O-ring NBR. Surface finish:
Sleeve natural finish. Ball hardened, natural finish.
O-ring black.
Note:
These spring plungers with o-ring are suitable for overhead installation or for installating in difficult to access positions. They can be pressed into the location hole by hand or using simple assembly tools. The O-ring holds the plunger in place and prevents it falling out. Other components can be easily installed without the need for further assembly aids.

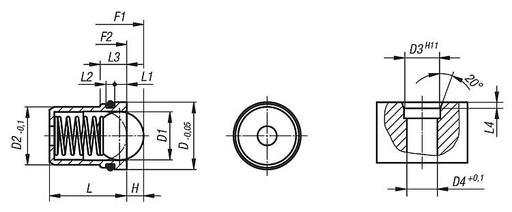

D314
D13,95
L16
L12,5
L35,5
D110
H3,5
L21,8
D212
D412,1
L42
Spring force initial pressure F1 approx. N15
Spring force final pressure F2 approx. N25
STP
Thread Size / Body Diameter12mm
Length16mm
Body MaterialStainless Steel
Ball / Pin MaterialStainless Steel
Thread LockNo
