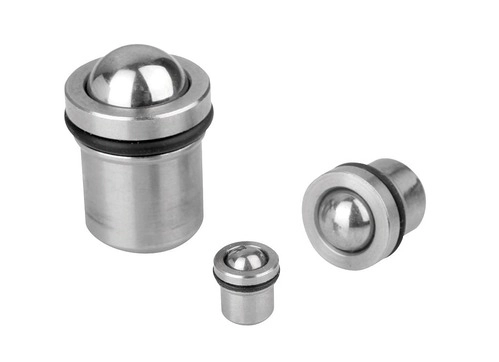

K0582 - Spring Plunger In Stainless Steel With 'O' Ring Size 4-12mm

List view Grid view
K0582 - Spring Plunger In Stainless Steel With 'O' Ring Size 4-12mm

Material:
Sleeve, spring and ball stainless steel.
O-ring NBR.

Version:
Sleeve bright.
Ball hardened, bright.
O-ring black.

Note:
These spring plungers with O-ring are suitable for overhead installation or for installing in difficult to access positions.
They can be pressed into the location hole by hand or using simple assembly tools. The O-ring holds the plunger in place and prevents it falling out. Other components can be easily installed without the need for further assembly aids.

Spring Plunger With O Ring. 14mm Diameter. 16mm Long. 15N Spring Force. Stainless Steel.

K0582 - Spring Plunger In Stainless Steel With 'O' Ring Size 4-12mm

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm+

Choose Type

Hook

Latch

Vertical Latch

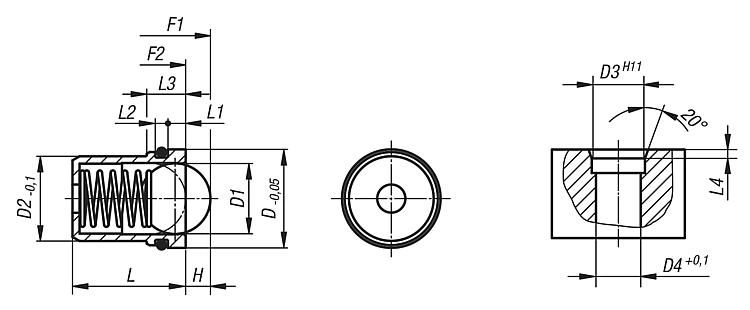

D

D1

D2

D3

D4

H

L

L1

L2

L3

L4

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0582.05

View product

Spring Plunger With O Ring. 5mm Diameter. 5mm Long. 3N Spring Force. Stainless Steel.

4,95 3 4 5 4,1 0,8 5 1 0,7 2,3 0,7 3 7 £1.52 £1.82

48

48 in stock

D

D1

D2

D3

D4

H

L

L1

L2

L3

L4

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0582.06

View product

Spring Plunger With O Ring. 6mm Diameter. 6mm Long. 4N Spring Force. Stainless Steel.

5,95 4 5 6 5,1 1 6 1 0,7 2,3 0,7 4 7 £1.43 £1.72

43

43 in stock

D

D1

D2

D3

D4

H

L

L1

L2

L3

L4

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0582.08

View product

Spring Plunger With O Ring. 8mm Diameter. 7mm Long. 6N Spring Force. Stainless Steel.

7,95 5 6 8 6,1 1,5 7 1,5 1,2 3,7 1 6 12 £1.58 £1.90

31

31 in stock

D

D1

D2

D3

D4

H

L

L1

L2

L3

L4

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0582.10

View product

Spring Plunger With O Ring. 10mm Diameter. 9mm Long. 6N Spring Force. Stainless Steel.

9,95 6,5 8 10 8,1 1,8 9 2 1,2 4,2 1,5 6 12 £1.81 £2.17

35

35 in stock

D

D1

D2

D3

D4

H

L

L1

L2

L3

L4

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0582.12

View product

Spring Plunger With O Ring. 12mm Diameter. 13.5mm Long. 10N Spring Force. Stainless Steel.

11,95 8 10 12 10,1 2,7 13,5 2,5 1,8 5,3 2 10 20 £2.07 £2.48

34

34 in stock

D

D1

D2

D3

D4

H

L

L1

L2

L3

L4

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0582.14

View product

Spring Plunger With O Ring. 14mm Diameter. 16mm Long. 15N Spring Force. Stainless Steel.

13,95 10 12 14 12,1 3,5 16 2,5 1,8 5,5 2 15 25 £3.32 £3.98

41

41 in stock
