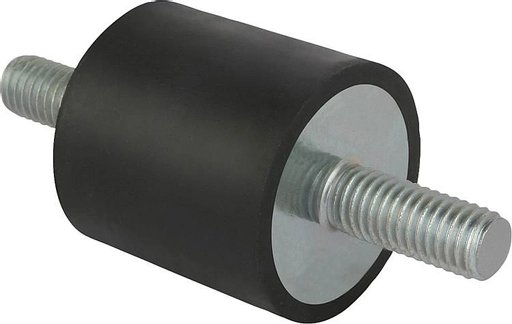

Rubber Metal Buffer. Anti Vibration Mount. 20mm Diameter. 15mm High. M6x18mm Thread. Stainless Steel.

Item Code: K0566.020015551

Rubber Metal Buffer. Anti Vibration Mount. 20mm Diameter. 15mm High. M6x18mm Thread. Stainless Steel.

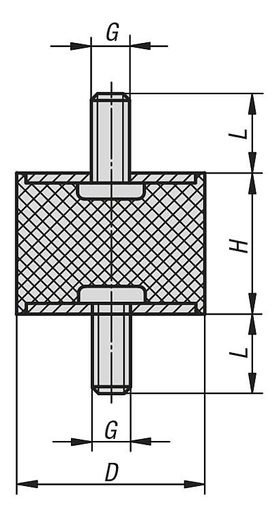

K0566-Rubber-Buffer-Drawing_1200x1200.jpg?

Item Code: K0566.020015551

Rubber Metal Buffer. Anti Vibration Mount. 20mm Diameter. 15mm High. M6x18mm Thread. Stainless Steel.

Material:
Metal parts stainless steel.
Elastomer natural rubber, medium hardness, Shore 55A.
Version:
Stainless steel bright.
Note:
The rubber buffers are widely-used construction elements for elastic mounting. They are used, among other things, as mountings for aggregates, motors, compressors, pumps and testing machinery.
Temperature range:
-30°C to +80°C.

Quick Links

Dispatch by 10/06/25

D: 20

L: 18

H: 15

G: M6

Spring stiffness N/mm: 200

Shore grade: 55A

Load , N: 300

£3.19 ea. Excl VAT £3.83 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
30 +	£2.68	16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

Product Dimensions

D	20
L	18
H	15
G	M6
Spring stiffness N/mm	200
Shore grade	55A
Load , N	300

Downloads

STP

Specifications

Thread Size	M6
Diameter	20mm
Height	15mm
Material	Stainless Steel
Hardness	Shore 55A

Rubber Metal Buffer. Anti Vibration Mount. 20mm Diameter. 15mm High. M6x18mm Thread. Stainless Steel.

Rubber Metal Buffer. Anti Vibration Mount. 20mm Diameter. 15mm High. M6x18mm Thread. Stainless Steel.
