Item Code: K0531.30322

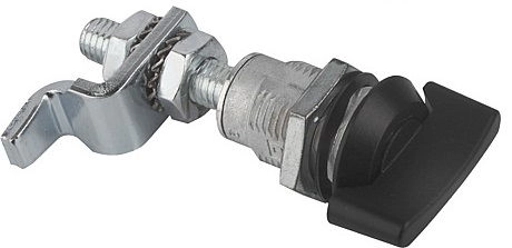

Adjustable Compression Latch. Wing Grip. 32mm Height. Zinc.

Item Code: K0531.30322

Adjustable Compression Latch. Wing Grip. 32mm Height. Zinc.

Tongue Not Supplied. Please Order Separately

Material, surface finish:
Housing, actuator, nut and tongue in die cast zinc, chromium-plated.
Powder-coated black for wing-knob version.
Rubber flat packing.
Tongue steel, galvanized.

Note:
Compression latches are primarily used for doors and housings that require a higher pressure force on the seal. Usable on the right or the left. The closing process always runs clockwise.

Vibration-proof, protected from water and dust in accordance with IP65.
Please order the desired version of the tongue separately.
Every tongue can be combined with every housing.

Function:
The tongue is turned 90° by clockwise rotation of the actuator and brought into the closed position. Further rotation by 90° pulls the tongue axially via the thread and thus increases the pressure force. The tightening length is 6 mm. The fastening nut is constructed as an earthing nut with claws on one side. The bent tongue can be used positively and negatively.

Accessory:
Tongue K0532
Key K0535

Quick Links

50+ in stock

Wing Grip
32
27

£11.24  ea. Excl VAT £13.49  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £9.22 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Tongue Not Supplied. Please Order Separately

Material, surface finish:
Housing, actuator, nut and tongue in die cast zinc, chromium-plated.
Powder-coated black for wing-knob version.
Rubber flat packing.
Tongue steel, galvanized.

Note:
Compression latches are primarily used for doors and housings that require a higher pressure force on the seal. Usable on the right or the left. The closing process always runs clockwise.

Vibration-proof, protected from water and dust in accordance with IP65.
Please order the desired version of the tongue separately.
Every tongue can be combined with every housing.

Function:
The tongue is turned 90° by clockwise rotation of the actuator and brought into the closed position. Further rotation by 90° pulls the tongue axially via the thread and thus increases the pressure force. The tightening length is 6 mm. The fastening nut is constructed as an earthing nut with claws on one side. The bent tongue can be used positively and negatively.

Accessory:
Tongue K0532
Key K0535

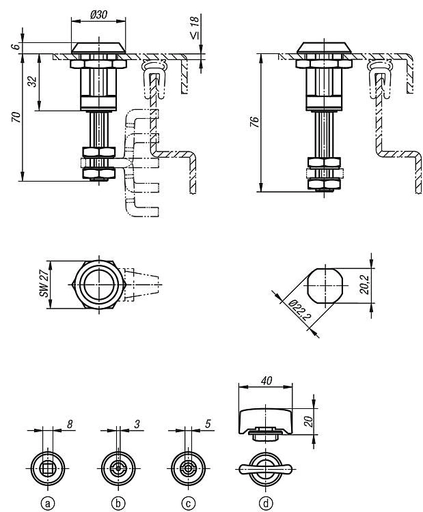

ActuationWing Grip
H32
SW27
STP
Material303 Stainless Steel
ConnectionWing Grip
Height32mm
Diameter30mm
