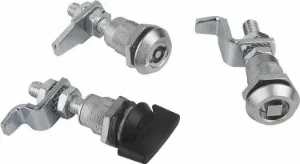

K0531 - Compression Latch With Adjustable Tongue Height
K0531 - Compression Latch With Adjustable Tongue Height
List viewGrid view
Tounge Not Supplied Please Order Separately. Part Number K0532.
Material:
Housing and actuator die-cast zinc.
Flat seal rubber.
Version:
Housing and actuator chrome-plated.
Wing-handle version powder-coated.Note:Compression latches are primarily used for doors and housings that require a high pressure on the seal. Right or left deployment. The locking direction is always clockwise.
Vibration-proof, water and dust tight according to IP65.
Please order the desired tongue type separately. Every tongue can be combined with every housing.
*Dimension A results from the combination of the quarter turn lock and the tongue and is specified with the matching tongues.
Function:
Turning the actuator 90° brings the tongue into the closed position. Turning the actuator another 90° draws the tongue into the frame increasing the pressure. The compression gap is 6 mm. The fastening nut is an earthing nut with teeth one side. The offset tongue can be installed positive or negative.
Accessory:
Key K0535.
Tongues for steel compression latch with adjustable tongue gap K0532.

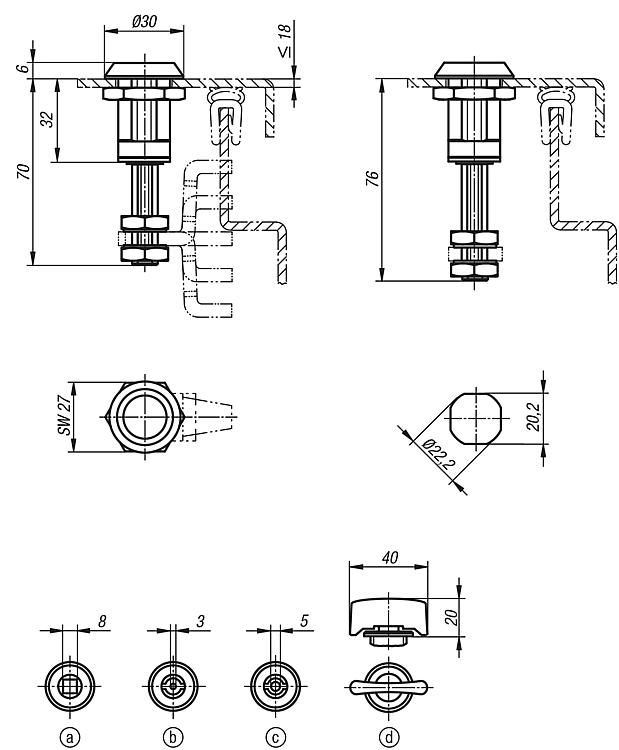

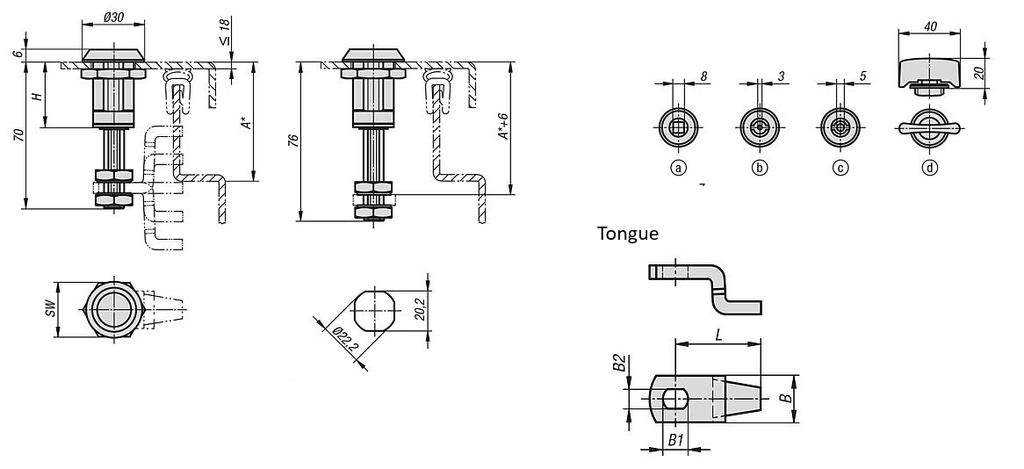

Drawing reference:
Actuation:
a) square 8 mm
b) double lug 3 mm
c) double lug 5 mm
d) T-grip
{
