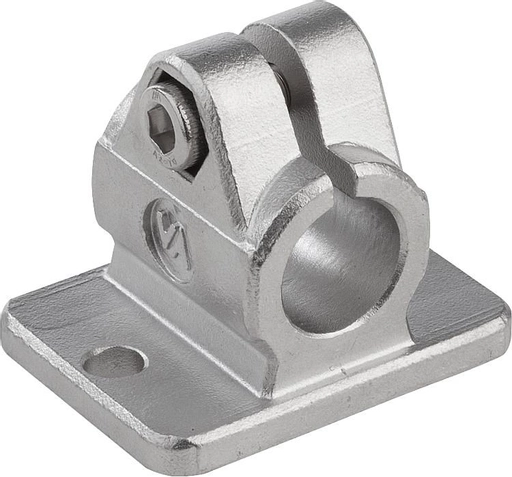

Tube Clamp With Flange. To Suit 18mm Round Tube. Stainless Steel.

Item Code: K0479.118

Tube Clamp With Flange. To Suit 18mm Round Tube. Stainless Steel.

Item Code: K0479.118

Tube Clamp With Flange. To Suit 18mm Round Tube. Stainless Steel.

Material:
Investment cast 1.4308 stainless steel.
Socket head screw ISO 4762 and hexagon nut ISO 4032, stainless steel.
From ø30 mm hexagon head bolt ISO 4017, stainless steel.
Version:
Electropolished.
Note:
The tube clamps with diameters 30 and 40 mm have a silicone coating on the female thread that protects the thread of the hex head screw from contamination and damage.
Accessory:
- Round and square tubes K0493

Quick Links

Dispatch by 09/06/25

Form: A

D: 25

L: 40.5

A: 18,1

B: 5,5

H: 38

C: 18

G: 37

S: M6x18

K: 32,5

N: 5

E: 32

F: 30,4

M: 50

P: 23

U: 40

£40.87 ea. Excl VAT £49.04 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
15 +	£33.51	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

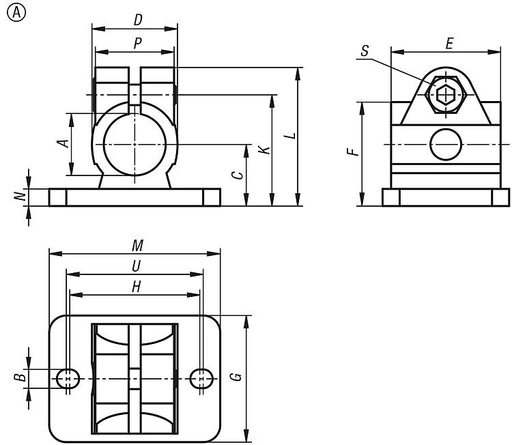

Product Dimensions

Form	A
D	25
L	40.5
A	18,1
B	5,5
H	38
C	18
G	37
S	M6x18
K	32,5
N	5
E	32
F	30,4
M	50
P	23
U	40
