Item Code: K0383.20412

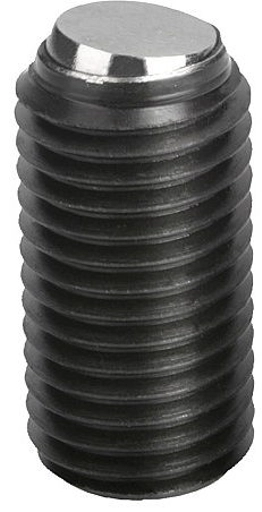

Ball End Thrust Screw. Without Head. Form B. M4 Thread. 11.8mm Long.

Ball End Thrust Screw. Without Head. Form B. M4 Thread. 11.8mm Long.

Item Code: K0383.20412

Ball End Thrust Screw. Without Head. Form B. M4 Thread. 11.8mm Long.

Material, surface finish:
Screw in tempered steel, quality class 10.9, black.
Ball in ball-bearing steel, hardened with natural finish or Delrin. Note:
Surfaces which are not plane and parallel can be firmly clamped or supported with form B, C or F with flattened ball because the movable ball can adapt itself up to 9°.
Further lengths have been designed especially so that ball pressure screws can be glued up. They allow mechanical connecting elements with external thread to be made cost-effectively for small and medium-sized series.

Quick Links

6 in stock

M4
1,4
2,5
B
11,8
3,5
2

£4.34  ea. Excl VAT £5.21  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
30 + £3.65 16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material, surface finish:
Screw in tempered steel, quality class 10.9, black.
Ball in ball-bearing steel, hardened with natural finish or Delrin. Note:
Surfaces which are not plane and parallel can be firmly clamped or supported with form B, C or F with flattened ball because the movable ball can adapt itself up to 9°.
Further lengths have been designed especially so that ball pressure screws can be glued up. They allow mechanical connecting elements with external thread to be made cost-effectively for small and medium-sized series.
DM4
D11,4
DK2,5
FormB
L11,8
Load rating max. kN (static load only)3,5
SW2
STP
Thread Size / Body DiameterM4
Length11.8mm
Body MaterialSteel
Ball / Head MaterialSteel
Head TypeFlat
