Item Code: K0383.22480

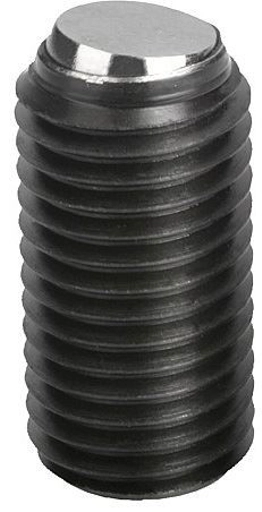

Ball End Thrust Screw. Without Head. Form B. M24 Thread. 80mm Long.

Ball End Thrust Screw. Without Head. Form B. M24 Thread. 80mm Long.

Item Code: K0383.22480

Ball End Thrust Screw. Without Head. Form B. M24 Thread. 80mm Long.

Material, surface finish:
Screw in tempered steel, quality class 10.9, black.
Ball in ball-bearing steel, hardened with natural finish or Delrin. Note:
Surfaces which are not plane and parallel can be firmly clamped or supported with form B, C or F with flattened ball because the movable ball can adapt itself up to 9°.
Further lengths have been designed especially so that ball pressure screws can be glued up. They allow mechanical connecting elements with external thread to be made cost-effectively for small and medium-sized series.

Quick Links

Dispatch by 25/07/25

M24
15,8
18
B
80
120
12

£33.09  ea. Excl VAT £39.71  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £27.13 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material, surface finish:
Screw in tempered steel, quality class 10.9, black.
Ball in ball-bearing steel, hardened with natural finish or Delrin. Note:
Surfaces which are not plane and parallel can be firmly clamped or supported with form B, C or F with flattened ball because the movable ball can adapt itself up to 9°.
Further lengths have been designed especially so that ball pressure screws can be glued up. They allow mechanical connecting elements with external thread to be made cost-effectively for small and medium-sized series.
DM24
D115,8
DK18
FormB
L80
Load rating max. kN (static load only)120
SW12
STP
Thread Size / Body DiameterM24
Length80mm
Body MaterialSteel
Ball / Head MaterialSteel
Head TypeFlat
