Lateral Spring Plunger. Hole Diameter 10mm. Pin Height 12mm. Pin Diameter 6mm. Aluminium.

Item Code: K0368.22064

Lateral Spring Plunger. Hole Diameter 10mm. Pin Height 12mm. Pin Diameter 6mm. Aluminium.

Item Code: K0368.22064

Lateral Spring Plunger. Hole Diameter 10mm. Pin Height 12mm. Pin Diameter 6mm. Aluminium.

Material:
Sleeve in aluminium.
Spring in steel.
Pressure pin in steel or in plastic. Surface finish:
Pressure pin (steel) surface hardened and galvanized.
Sleeve blue galvanized. Note:
Lateral spring plungers aid in the positioning and clamping, holding and fastening of tools and parts during engraving, labelling, drilling, galling, threading, honing, grinding, welding, soldering, hard-facing, assembling, etc.
In order to position, see K0369 for suitable eccentric bushes.
W and Z according to customer specifications.

Quick Links

4 in stock

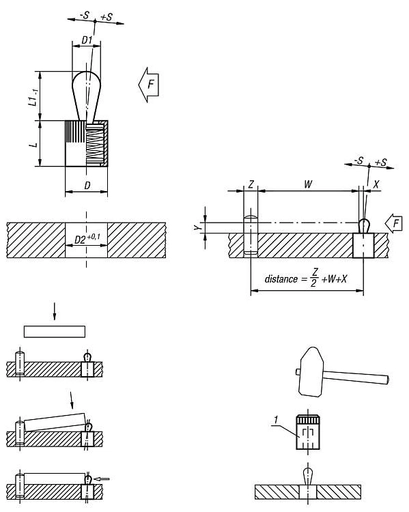

±S: 1

D: 10

D1: 6

D2: 10

L: 12

L1: 10

X if Y = 4,5: 1,7

X if Y = 6: 1,9

X if Y = 8: 1,9

Was £8.21 Save 30% £5.75 ea. Excl VAT Was £9.85 Save 30% £6.90 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
25 +	£4.71	18%

Free Standard Delivery over £15 ex VAT

Spend another £15 to qualify

modal placeholder

Quick Links

Product Dimensions

±S	1
D	10
D1	6
D2	10
L	12
L1	10
X if Y = 4,5	1,7
X if Y = 6	1,9
X if Y = 8	1,9
