K0368 - Lateral Spring Plungers In Aluminium & Steel Size 6-16mm

K0368 - Lateral Spring Plungers In Aluminium & Steel Size 6-16mm

List view Grid view

Material:
Sleeve aluminium.
Spring steel.
Thrust pin steel or POM.

Version:
Steel thrust pin hardened and electro zinc-plated.
Sleeve blue electro zinc-plated.

Note:
Lateral spring plungers are for positioning, clamping, holding and securing workpieces and parts for engraving, labelling, drilling, reaming, tapping, honing, grinding, welding, soldering, assembling, mounting etc.
Suitable eccentric adjustment bush see K0369.
W and Z are customer specified.

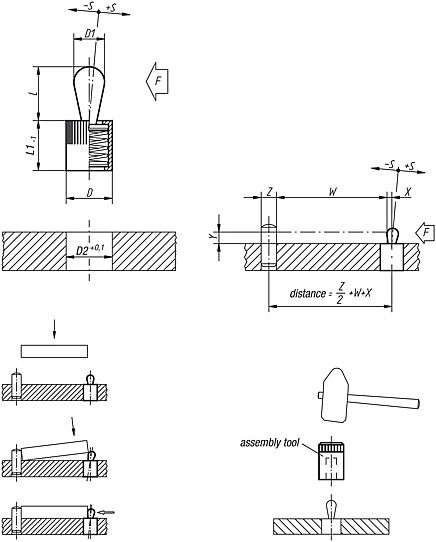

Drawing reference:
1) assembly tool

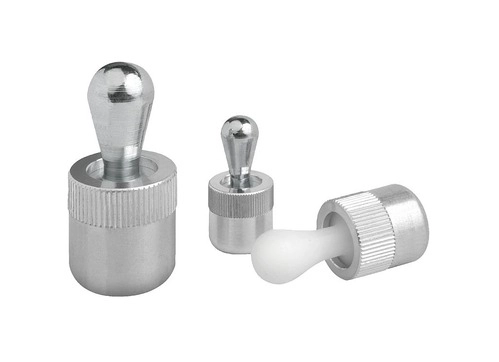

Lateral Spring Plunger. Hole Diameter 10mm. Pin Height 12mm. Pin Diameter 5mm. Aluminium.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	±S	D	D1	D2	L	L1	X if Y = 1	X if Y = 2	X if Y = 3	X if Y = 4,5	X if Y = 6	X if Y = 8	Price (Exc. Tax)	Stock
Filters
K0368.21034 View product	0,5	6	3	6	7	4	0,8	1	1	1	1	1	£5.16	0
K0368.21036 View product	0,5	6	3	6	7	4	0,8	1	1	1	1	1	£5.16	4
K0368.21038 View product	0,5	6	3	6	7	4	0,8	1	1	1	1	1	£5.16	0
K0368.21054 View product	0,8	10	5	10	11	6,7	--	1,5	1,7	1,7	1,7	1,7	£5.62	0
K0368.21056 View product	0,8	10	5	10	11	6,7	--	1,5	1,7	1,7	1,7	1,7	£5.62	0
K0368.21058 View product	0,8	10	5	10	11	6,7	--	1,5	1,7	1,7	1,7	1,7	£5.62	0
K0368.21064 View product	1	10	6	10	11	10,7	--	--	--	1,7	1,9	1,9	£6.08	0
K0368.21066 View product	1	10	6	10	11	10,7	--	--	--	1,7	1,9	1,9	£6.08	0
K0368.21068 View product	1	10	6	10	11	10,7	--	--	--	1,7	1,9	1,9	£6.08	15
K0368.21084 View product	1,3	12	8	12	13	13,9	--	--	--	--	2,5	2,7	£6.61	14
K0368.21086 View product	1,3	12	8	12	13	13,9	--	--	--	--	2,5	2,7	£6.61	14
K0368.21088 View product	1,3	12	8	12	13	13,9	--	--	--	--	2,5	2,7	£6.61	15
K0368.21104 View product	1,6	16	10	16	17	16,7	--	--	--	--	--	3,1	£7.29	9
K0368.21106 View product	1,6	16	10	16	17	16,7	--	--	--	--	--	3,1	£7.29	0
K0368.21108 View product	1,6	16	10	16	17	16,7	--	--	--	--	--	3,1	£7.29	0
K0368.22034 View product	0,5	6	3	6	7	4	0,8	1	1	1	1	1	£7.42	14
K0368.22036 View product	0,5	6	3	6	7	4	0,8	1	1	1	1	1	£7.42	0
K0368.22038 View product	0,5	6	3	6	7	4	0,8	1	1	1	1	1	£7.42	0
K0368.22054 View product	0,8	10	5	10	12	6	--	1,5	1,7	1,7	1,7	1,7	£7.74	0
K0368.22056 View product	0,8	10	5	10	12	6	--	1,5	1,7	1,7	1,7	1,7	£7.74	0
K0368.22058 View product	0,8	10	5	10	12	6	--	1,5	1,7	1,7	1,7	1,7	£7.74	0
K0368.22064 View product	1	10	6	10	12	10	--	--	--	1,7	1,9	1,9	£8.21	4
K0368.22066 View product	1	10	6	10	12	10	--	--	--	1,7	1,9	1,9	£8.21	0
K0368.22068 View product	1	10	6	10	12	10	--	--	--	1,7	1,9	1,9	£8.21	0
K0368.22084 View product	1,3	12	8	12	14	13	--	--	--	--	2,5	2,7	£8.74	0
K0368.22086 View product	1,3	12	8	12	14	13	--	--	--	--	2,5	2,7	£8.74	0
K0368.22088 View product	1,3	12	8	12	14	13	--	--	--	--	2,5	2,7	£8.74	0
K0368.22104 View product	1,6	16	10	16	18	16	--	--	--	--	--	3,1	£9.44	11
K0368.22106 View product	1,6	16	10	16	18	16	--	--	--	--	--	3,1	£9.44	23
K0368.22108 View product	1,6	16	10	16	18	16	--	--	--	--	--	3,1	£9.44	0
K0368.71034 View product	0,5	6	3	6	7	4	0,8	1	1	1	1	1	£5.16	0
K0368.71054 View product	0,8	10	5	10	11	6,7	--	1,5	1,7	1,7	1,7	1,7	£5.62	0
K0368.71064 View product	1	10	6	10	11	10,7	--	--	--	1,7	1,9	1,9	£6.08	0
K0368.71084 View product	1,3	12	8	12	13	13,9	--	--	--	--	2,5	2,7	£6.61	0
K0368.71104 View product	1,6	16	10	16	17	16,7	--	--	--	--	--	3,1	£7.29	0
K0368.72034 View product	0,5	6	3	6	7	4	0,8	1	1	1	1	1	£7.42	5
K0368.72054 View product	0,8	10	5	10	12	6	--	1,5	1,7	1,7	1,7	1,7	£7.74	11
K0368.72064 View product	1	10	6	10	12	10	--	--	--	1,7	1,9	1,9	£8.21	0
K0368.72084 View product	1,3	12	8	12	14	13	--	--	--	--	2,5	2,7	£8.74	0
K0368.72104 View product	1,6	16	10	16	18	16	--	--	--	--	--	3,1	£9.44	0
