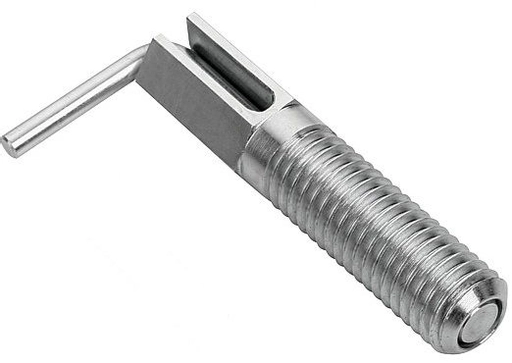

Indexing Plunger. M10 Thread. With Locking Slot. Steel.

Item Code: K0340.1206

Indexing Plunger. M10 Thread. With Locking Slot. Steel.

Item Code: K0340.1206

Indexing Plunger. M10 Thread. With Locking Slot. Steel.

Material:
Steel quality class 5.8. Surface finish:
Blue chromated. Note:

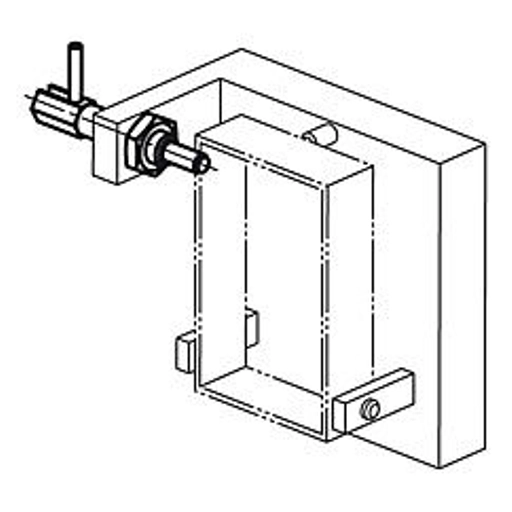

Locking bolts are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the bolt has been manually disengaged.

Quick Links

95 in stock

A: 23.5

D: 6

D1: M10

D2: 3.5

Fx30°: 1.1

L: 65

L1: 33.5

L2: 51

L3: 30

Locknut: without locknut

Spring force initial pressure F1 approx. N: 4

Spring force final pressure F2 approx. N: 16

SW1: 10

Tightening torque max. Nm: 10

Travel S: 14

£7.91 ea. Excl VAT £9.49 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
25 +	£6.49	18%

Next Working Day Delivery on All In-Stock Products

modal placeholder

Quick Links

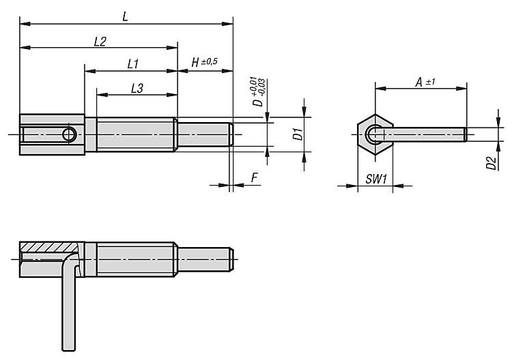

Product Dimensions

A	23.5
D	6
L	65
L1	33.5
L2	51
L3	30
D1	M10
D2	3.5
SW1	10
Locknut	without locknut
Spring force initial pressure F1 approx. N	4
Spring force final pressure F2 approx. N	16
Travel S	14
Fx30°	1.1
Tightening torque max. Nm	10
