K0340 - Indexing Plungers Side Handle In Steel Size M6-M16

List view Grid view
K0340 - Indexing Plungers Side Handle In Steel Size M6-M16

Material:
Steel grade 5.8.

Version:
Trivalent blue passivated.

Note:
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged.
Indexing Plunger. M6 Thread. With Locking Slot. Steel.

K0340 - Indexing Plungers Side Handle In Steel Size M6-M16

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm+

Choose Type

Hook

Latch

Vertical Latch

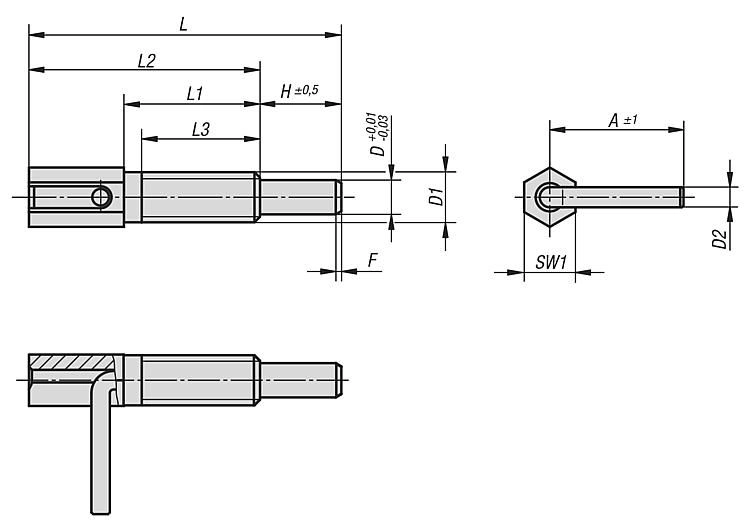

A

D

D1

D2

Fx30°

L

L1

L2

L3

Locknut

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

SW1

Tightening torque max. Nm

Travel S

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0340.1104

View product

Indexing Plunger. M6 Thread. With Locking Slot. Steel.

16 4 M6 2,3 0,7 41,5 20 32 17 without locknut 3 10 6 1,6 9,5 £7.65 £9.18

10

10 in stock

A

D

D1

D2

Fx30°

L

L1

L2

L3

Locknut

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

SW1

Tightening torque max. Nm

Travel S

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0340.1905

View product

Indexing Plunger. M8 Thread. With Locking Slot. Steel.

19 5 M8 3 0,9 54 27 42 24 without locknut 3,5 13,5 8 4,5 12 £7.43 £8.92

14

14 in stock

A

D

D1

D2

Fx30°

L

L1

L2

L3

Locknut

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

SW1

Tightening torque max. Nm

Travel S

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0340.1206

View product

Indexing Plunger. M10 Thread. With Locking Slot. Steel.

23,5 6 M10 3,5 1,1 65 33,5 51 30 without locknut 4 16 10 10 14 £8.16 £9.79

148

50+ in stock

A

D

D1

D2

Fx30°

L

L1

L2

L3

Locknut

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

SW1

Tightening torque max. Nm

Travel S

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0340.1308

View product

Indexing Plunger. M12 Thread. With Locking Slot. Steel.

31 8 M12 4,7 1,3 73 31,8 54 28 without locknut 4 22 12 13 19 £8.85 £10.62

14

14 in stock

A

D

D1

D2

Fx30°

L

L1

L2

L3

Locknut

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

SW1

Tightening torque max. Nm

Travel S

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0340.1410

View product

Indexing Plunger. M16 Thread. With Locking Slot. Steel.

33 10 M16 4,7 1,6 102,5 50,5 77,5 44,5 without locknut 4 23 16 42 25 £10.60 £12.72

1

1 in stock

Showing products per page


£
£

10 in stock

Item Code: K0340.1104

Indexing Plunger. M6 Thread. With Locking Slot. Steel.

£7.65  Excl VAT £9.18  Inc VAT

Price breaks available

Text

Qty

14 in stock

Item Code: K0340.1905

Indexing Plunger. M8 Thread. With Locking Slot. Steel.

£7.43  Excl VAT £8.92  Inc VAT

Price breaks available

Text

Qty

50+ in stock

Item Code: K0340.1206

Indexing Plunger. M10 Thread. With Locking Slot. Steel.

£8.16  Excl VAT £9.79  Inc VAT

Price breaks available

Text

Qty

14 in stock

Item Code: K0340.1308

Indexing Plunger. M12 Thread. With Locking Slot. Steel.

£8.85  Excl VAT £10.62  Inc VAT

Price breaks available

Text

Qty

1 in stock

Item Code: K0340.1410

Indexing Plunger. M16 Thread. With Locking Slot. Steel.

£10.60  Excl VAT £12.72  Inc VAT

Price breaks available

Text

Qty

Showing products per page

Indexing Plunger. M6 Thread. With Locking Slot. Steel.

10 in stock

Item Code: K0340.1104

£7.65  Excl VAT £9.18  Inc VAT

Price breaks available

Text

Qty

Indexing Plunger. M8 Thread. With Locking Slot. Steel.

14 in stock

Item Code: K0340.1905

£7.43  Excl VAT £8.92  Inc VAT

Price breaks available

Text

Qty

Indexing Plunger. M10 Thread. With Locking Slot. Steel.

50+ in stock

Item Code: K0340.1206

£8.16  Excl VAT £9.79  Inc VAT

Price breaks available

Text

Qty

Indexing Plunger. M12 Thread. With Locking Slot. Steel.

14 in stock

Item Code: K0340.1308

£8.85  Excl VAT £10.62  Inc VAT

Price breaks available

Text

Qty

Indexing Plunger. M16 Thread. With Locking Slot. Steel.

1 in stock

Item Code: K0340.1410

£10.60  Excl VAT £12.72  Inc VAT

Price breaks available

Text

Qty

Showing products per page
