Item Code: K0329.208

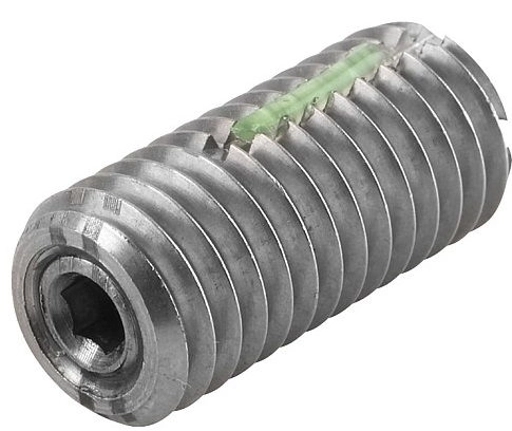

Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 15N. Stainless Steel.

Item Code: K0329.208

Material:
Sleeve 1.4305.
Pressure pin 1.4034.
Spring 1.4310. LONG-LOK thread lock in nylon. Surface finish:
Natural finish.
Pressure pin hardened.

Quick Links

Dispatch by 01/07/25

D: M8

D1: 3,5

H: 3

L: 22

L1: 8

Loosening torque, approx. Nm: 0,37

N: 1,2

S: 2,5

Spring force initial pressure F1 approx. N: 15

Spring force final pressure F2 approx. N: 48

Tightening torque approx. Nm: 1,05

T1: 1,4

Assembly Key For M8 Spring Plungers - £14.94
Assembly Key For M8 Spring Plungers

Qty

£6.79 ea. Excl VAT £8.15 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
25 +	£5.57	18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Assembly Key For M8 Spring Plungers - £14.94
Assembly Key For M8 Spring Plungers

Qty

Quick Links

Material:
Sleeve 1.4305.
Pressure pin 1.4034.
Spring 1.4310. LONG-LOK thread lock in nylon. Surface finish:
Natural finish.
Pressure pin hardened.

D	M8
D1	3,5
H	3
L	22
L1	8
Loosening torque, approx. Nm	0,37
N	1,2
S	2,5
Spring force initial pressure F1 approx. N	15
Spring force final pressure F2 approx. N	48
Tightening torque approx. Nm	1,05
T1	1,4
