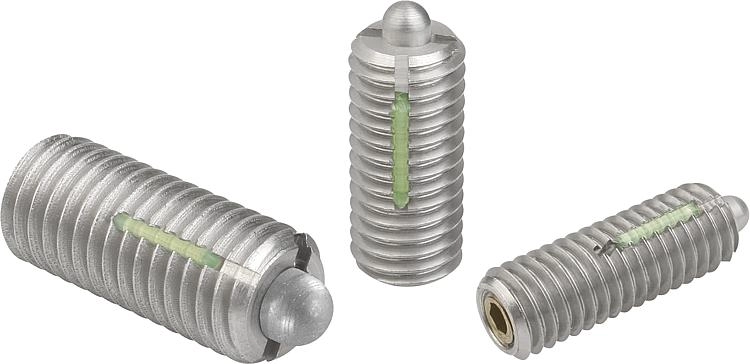

K0329 - Spring Plungers With Hexagon Socket And Thrust Pin In Stainless Steel, With Thread Lock

List view Grid view
K0329 - Spring Plungers With Hexagon Socket And Thrust Pin In Stainless Steel, With Thread Lock

Material:
Sleeve 1.4305.
Thrust pin 1.4034.
Spring 1.4310.
Thread lock nylon.

Version:
Bright.
Thrust pin hardened.

Drawing reference:
L2 = ca. two full threads
1) grub screw glued-in

Spring Plunger. M5 Thread. 18mm Length. 2.4mm Pin Diameter. 17N Spring Force.. Stainless Steel.

K0329 - Spring Plungers With Hexagon Socket And Thrust Pin In Stainless Steel, With Thread Lock

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm+

Choose Type

Hook

Latch

Vertical Latch

D

D1

H

L

L1

Loosening torque, approx. Nm

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0329.05

View product

Spring Plunger. M5 Thread. 18mm Length. 2.4mm Pin Diameter. 17N Spring Force.. Stainless Steel.

M5 2,4 2,3 18 7 0,08 0,8 1,5 5 17 0,12 0,8 £5.69 £6.83

4

4 in stock

D

D1

H

L

L1

Loosening torque, approx. Nm

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0329.205

View product

Spring Plunger. Thread M5. Length 18mm. Pin Diameter 2.4mm. Spring Force 9N. Stainless Steel.

M5 2,4 2,3 18 7 0,08 0,8 1,5 9 26 0,12 0,8 £5.88 £7.06

0

Dispatched 02/07/25

D

D1

H

L

L1

Loosening torque, approx. Nm

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0329.06

View product

Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 6N. Stainless Steel.

M6 2,7 2,5 20 7 0,22 1 2 6 17 0,45 1 £5.69 £6.83

137

50+ in stock

D

D1

H

L

L1

Loosening torque, approx. Nm

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0329.206

View product

Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 11N. Stainless Steel.

M6 2,7 2,5 20 7 0,22 1 2 11 35 0,45 1 £5.88 £7.06

0

Dispatched 02/07/25

D

D1

H

L

L1

Loosening torque, approx. Nm

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0329.08

View product

Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 7N. Stainless Steel.

M8 3,5 3 22 8 0,37 1,2 2,5 7 29 1,05 1,4 £6.36 £7.63

99

50+ in stock

D

D1

H

L

L1

Loosening torque, approx. Nm

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0329.208

View product

Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 15N. Stainless Steel.

M8 3,5 3 22 8 0,37 1,2 2,5 15 48 1,05 1,4 £6.79 £8.15

0

Dispatched 02/07/25

D

D1

H

L

L1

Loosening torque, approx. Nm

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0329.10

View product

Spring Plunger. Thread M10. Length 22mm. Pin Diameter 4mm. Spring Force 8N. Stainless Steel.

M10 4 3 22 9 0,6 1,6 3 8 31 1,3 1,4 £7.39 £8.87

0

Dispatched 02/07/25

D

D1

H

L

L1

Loosening torque, approx. Nm

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0329.210

View product

Spring Plunger. Thread M10. Length 22mm. Pin Diameter 4mm. Spring Force 15N. Stainless Steel.

M10 4 3 22 9 0,6 1,6 3 15 58 1,3 1,4 £7.86 £9.43

3

3 in stock

D

D1

H

L

L1

Loosening torque, approx. Nm

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0329.12

View product

Spring Plunger. Thread M12. Length 28mm. Pin Diameter 6mm. Spring Force 10N. Stainless Steel.

M12 6 4 28 10 1,3 2 4 10 47 2 2 £10.66 £12.79

0

Dispatched 02/07/25

D

D1

H

L

L1

Loosening torque, approx. Nm

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0329.212

View product

Spring Plunger. Thread M12. Length 28mm. Pin Diameter 6mm. Spring Force 19N. Stainless Steel.

M12 6 4 28 10 1,3 2 4 19 74 2 2 £11.18 £13.42

0

Dispatched 02/07/25

D

D1

H

L

L1

Loosening torque, approx. Nm

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0329.16

View product

Spring Plunger. Thread M16. Length 32mm. Pin Diameter 7.5mm. Spring Force 38N. Stainless Steel.

M16 7,5 5 32 14 3 2,5 5 38 85 3,9 2,5 £16.71 £20.05

0

Dispatched 02/07/25
