Item Code: K0328.106

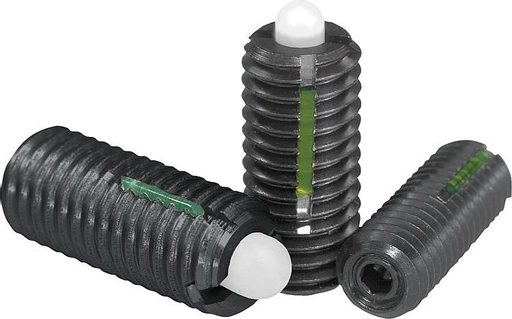

Spring Plunger. Thread M6. Length 20mm. Ball Diameter 2.7mm. Spring Force 3N. Steel.

Item Code: K0328.106

Spring Plunger. Thread M6. Length 20mm. Ball Diameter 2.7mm. Spring Force 3N. Steel.

Material:
Sleeve steel grade 5.8.
Thrust pin POM.
Spring steel grade D.
LONG-LOK thread lock nylon.
Version:
Black oxidised.

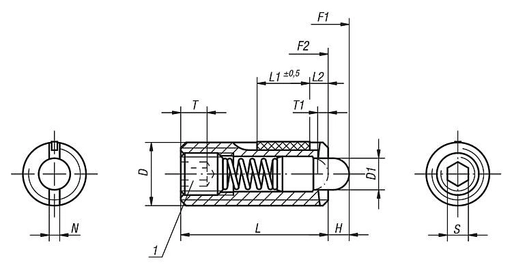

Drawing reference:
L2 = ca. two full threads
1) grub screw glued-in

Quick Links

Dispatch by 02/07/25

M6
2,7
2,5
20
7
0,22
1
2
3
9
0,45
1

£3.21  ea. Excl VAT £3.85  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
30 + £2.70 16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Sleeve steel grade 5.8.
Thrust pin POM.
Spring steel grade D.
LONG-LOK thread lock nylon.
Version:
Black oxidised.
Drawing reference:
L2 = ca. two full threads
1) grub screw glued-in
DM6
D12,7
H2,5
L20
L17
Loosening torque, approx. Nm0,22
N1
S2
Spring force initial pressure F1 approx. N3
Spring force final pressure F2 approx. N9
Tightening torque approx. Nm0,45
T11
STP
Thread Size / Body DiameterM6
Length20mm
Body MaterialSteel
Ball / Pin MaterialPOM
Thread LockYes
