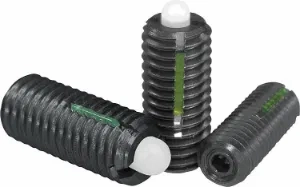

K0328 - Spring Plungers With Hexagon Socket And POM Thrust Pin In Steel With Thread Lock

K0328 - Spring Plungers With Hexagon Socket And POM Thrust Pin In Steel With Thread Lock

List view Grid view

Material:
Sleeve steel grade 5.8.
Thrust pin POM.
Spring grade D spring steel wire.
Thread lock nylon.

Version:
Black oxidised.

Drawing reference:
L2 = ca. two full threads
1) grub screw glued-in

Spring Plunger. M5 Thread. 18mm Long. 2.4mm Ball Diameter. 6N Spring Force.. Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Sort by

	D	L	L1	D1	H	S	N	T1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque, approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS															Basket
K0328.05 View product Spring Plunger. M5 Thread. 18mm Long. 2.4mm Ball Diameter. 6N Spring Force.. Steel.	M5	18	7	2,4	2,3	1,5	0,8	0,8	6	20	0,12	0,08	£2.81 £3.37		0 Dispatched 20/06/25

	D	L	L1	D1	H	S	N	T1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque, approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS															Basket
K0328.105 View product Spring Plunger. Thread M5. Length 18mm. Ball Diameter 2.4mm. Spring Force 3N. Steel.	M5	18	7	2,4	2,3	1,5	0,8	0,8	3	10	0,12	0,08	£3.07 £3.68		0 Dispatched 20/06/25

	D	L	L1	D1	H	S	N	T1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque, approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS															Basket
K0328.06 View product Spring Plunger. Thread M6. Length 20mm. Ball Diameter 2.7mm. Spring Force 7N. Steel.	M6	20	7	2,7	2,5	2	1	1	7	20	0,45	0,22	£2.93 £3.52		0 Dispatched 20/06/25

	D	L	L1	D1	H	S	N	T1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque, approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS															Basket
K0328.106 View product Spring Plunger. Thread M6. Length 20mm. Ball Diameter 2.7mm. Spring Force 3N. Steel.	M6	20	7	2,7	2,5	2	1	1	3	9	0,45	0,22	£3.21 £3.85		0 Dispatched 20/06/25

	D	L	L1	D1	H	S	N	T1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque, approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS															Basket
K0328.08 View product Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 9N. Steel.	M8	22	8	3,5	3	2,5	1,2	1,4	9	35	1,05	0,37	£3.32 £3.98		79 50+ in stock

	D	L	L1	D1	H	S	N	T1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque, approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS															Basket
K0328.108 View product Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 4N. Steel.	M8	22	8	3,5	3	2,5	1,2	1,4	4	16	1,05	0,37	£3.49 £4.19		0 Dispatched 20/06/25

	D	L	L1	D1	H	S	N	T1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque, approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS															Basket
K0328.10 View product Spring Plunger. Thread M10. Length 22mm. Pin Diameter 4mm. Spring Force 9N. Steel.	M10	22	9	4	3	3	1,6	1,4	9	35	1,3	0,6	£3.86 £4.63		0 Dispatched 20/06/25

	D	L	L1	D1	H	S	N	T1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque, approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS															Basket
K0328.110 View product Spring Plunger. Thread M10. Length 22mm. Pin Diameter 4mm. Spring Force 4N. Steel.	M10	22	9	4	3	3	1,6	1,4	4	16	1,3	0,6	£4.07 £4.88		8 8 in stock

	D	L	L1	D1	H	S	N	T1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque, approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS															Basket
K0328.12 View product Spring Plunger. Thread M12. Length 28mm. Pin Diameter 6mm. Spring Force 12N. Steel.	M12	28	10	6	4	4	2	2	12	55	2	1,3	£5.95 £7.14		0 Dispatched 20/06/25

	D	L	L1	D1	H	S	N	T1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque, approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS															Basket
K0328.112 View product Spring Plunger. Thread M12. Length 28mm. Pin Diameter 6mm. Spring Force 5N. Steel.	M12	28	10	6	4	4	2	2	5	27	2	1,3	£6.26 £7.51		0 Dispatched 20/06/25

	D	L	L1	D1	H	S	N	T1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque, approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS															Basket
K0328.16 View product Spring Plunger. Thread M16. Length 32mm. Pin Diameter 7.5mm. Spring Force 45N. Steel.	M16	32	14	7,5	5	5	2,5	2,5	45	100	3,9	3	£8.02 £9.62		0 Dispatched 20/06/25

	D	L	L1	D1	H	S	N	T1	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Loosening torque, approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS															Basket
K0328.116 View product Spring Plunger. Thread M16. Length 32mm. Pin Diameter 7.5mm. Spring Force 20N. Steel.	M16	32	14	7,5	5	5	2,5	2,5	20	45	3,9	3	£8.40 £10.08		3 3 in stock
