Back to K0327 Inch - Spring Plungers With Hex Socket And Thrust Pin In Steel With Thread Lock

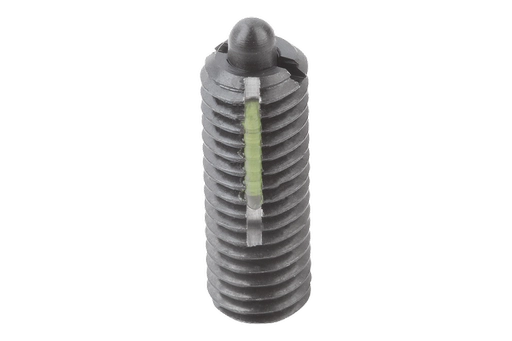

Spring Plunger With Hex Socket And Thrust Pin. 1/4"-28 Thread. 20mm Long. 2.7mm Pin Diameter. Standard Spring Force. Steel.

Item Code: K0327.AJ

Spring Plunger With Hex Socket And Thrust Pin. 1/4"-28 Thread. 20mm Long. 2.7mm Pin Diameter. Standard Spring Force. Steel.

Item Code: K0327.AJ

Material:
Sleeve in steel grade 5.8;
thrust pin in steel.
Spring grade D spring steel wire.
Thread lock nylon.

Version:
Black oxidized.
Thrust pin hardened.

Note:
For the inch series, dimension D and S are in inches, all other dimensions are in mm.

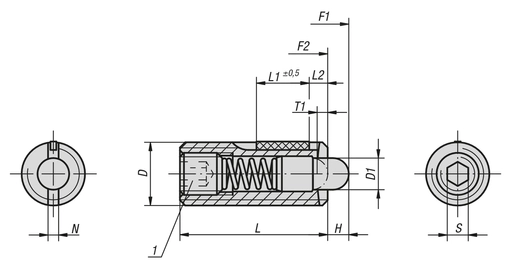

Drawing Reference:
L2 = ca. two full threads
1) grub screw glued-in

Quick Links

Dispatch by 07/12/25

Spring Strength: standard

D: 1/4-28

D1: 2.7

H: 2.5

L: 20

L1: 7

N: 1

S: 2

Spring force final pressure F2 approx. N: 20

Spring force initial pressure F1 approx. N: 7

T1: 1

£3.77 ea. Excl VAT £4.52 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Free Standard Delivery over £15 ex VAT

Spend another £15 to qualify

modal placeholder

Quick Links

Spring Strength	standard
D	1/4-28
D1	2.7
H	2.5
L	20
L1	7
N	1
S	2
Spring force final pressure F2 approx. N	20
Spring force initial pressure F1 approx. N	7
T1	1
