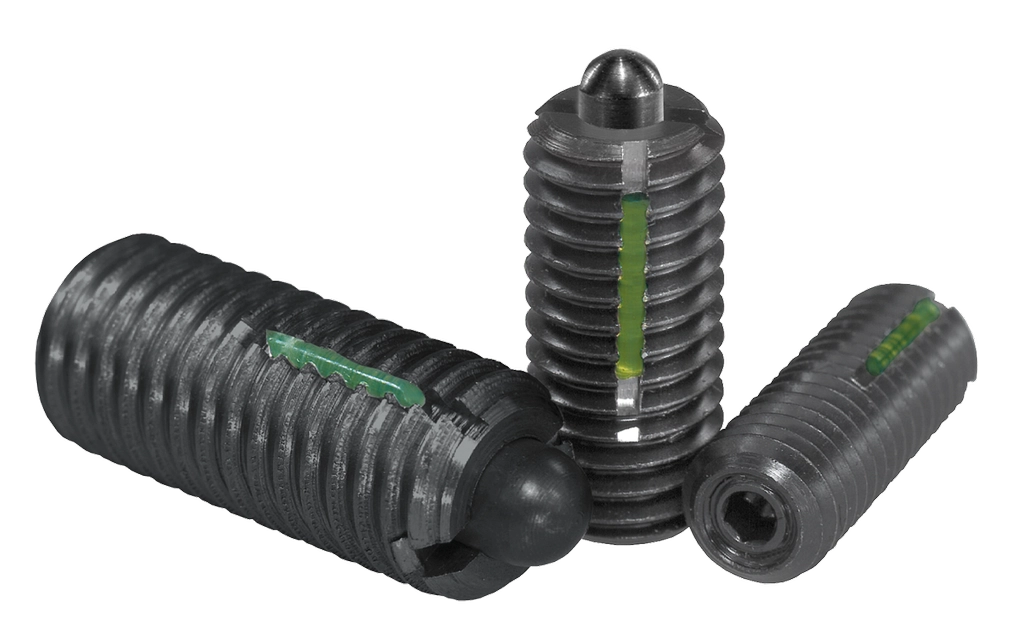

K0327 Inch - Spring Plungers With Hex Socket And Thrust Pin In Steel With Thread Lock

K0327 Inch - Spring Plungers With Hex Socket And Thrust Pin In Steel With Thread Lock

Material:
Sleeve in steel grade 5.8;
thrust pin in steel.
Spring grade D spring steel wire.
Thread lock nylon.

Version:
Black oxidized.
Thrust pin hardened.

Note:
For the inch series, dimension D and S are in inches, all other dimensions are in mm.

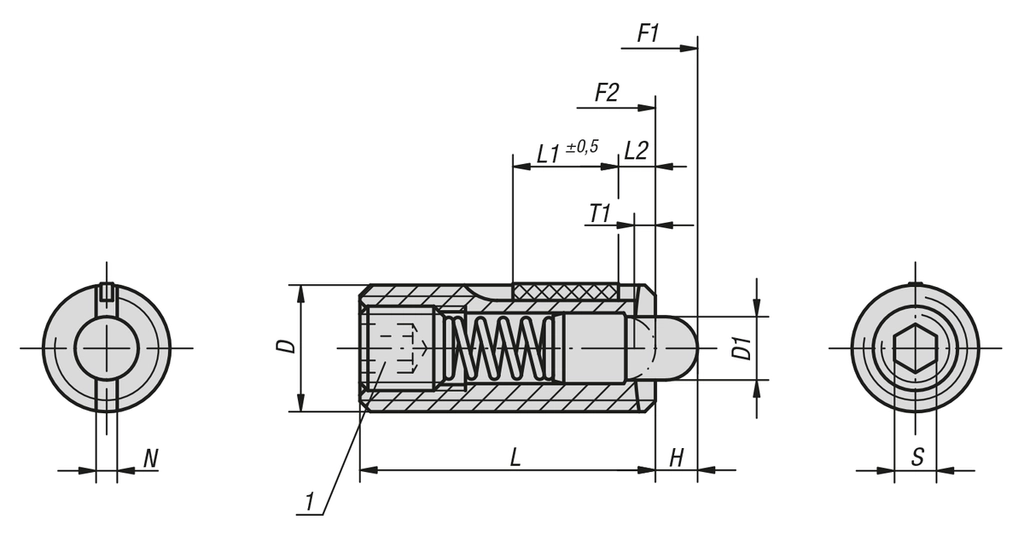

Drawing reference:
L2 = ca. two full threads
1) grub screw glued-in


Spring Plunger

K0327 Inch - Spring Plungers With Hex Socket And Thrust Pin In Steel With Thread Lock

Line drawing placeholder

Move drawing here

Spring Strength D D1 H L L1 N S Spring force final pressure approx. N Spring force initial pressure approx. N T1 Price (Exc. Tax) Stock Qty basket

Filters
K0327.2A5
View product 		intensified 1/2-13 6 4 28 10 2 4 85 25 2
£5.41
0
K0327.1A5
View product 		light 1/2-13 6 4 28 10 2 4 27 5 2
£5.29
0
K0327.A5
View product 		standard 1/2-13 6 4 28 10 2 4 55 12 2
£5.06
0
K0327.2A2
View product 		intensified 1/4-20 2.7 2.5 20 7 1 2 37 14 1
£2.68
0
K0327.1A2
View product 		light 1/4-20 2.7 2.5 20 7 1 2 9 3 1
£2.70
0
K0327.A2
View product 		standard 1/4-20 2.7 2.5 20 7 1 2 20 7 1
£2.49
0
K0327.2AJ
View product 		intensified 1/4-28 2.7 2.5 20 7 1 2 37 14 1
£2.68
0
K0327.1AJ
View product 		light 1/4-28 2.7 2.5 20 7 1 2 9 3 1
£2.70
0
K0327.AJ
View product 		standard 1/4-28 2.7 2.5 20 7 1 2 20 7 1
£2.49
0
K0327.2A1
View product 		intensified 10-32 2.4 2.3 18 7 0.8 1.5 29 11 0.8
£2.55
0
K0327.1A1
View product 		light 10-32 2.4 2.3 18 7 0.8 1.5 10 3 0.8
£2.61
0
K0327.A1
View product 		standard 10-32 2.4 2.3 18 7 0.8 1.5 20 6 0.8
£2.42
0
K0327.2A4
View product 		intensified 3/8-16 4 3 22 9 1.6 3 70 19 1.4
£3.39
0
K0327.1A4
View product 		light 3/8-16 4 3 22 9 1.6 3 16 4 1.4
£3.35
0
K0327.A4
View product 		standard 3/8-16 4 3 22 9 1.6 3 35 9 1.4
£3.15
0
K0327.2A3
View product 		intensified 5/16-18 3.5 3 22 8 1.2 2.5 65 22 1.4
£3.09
0
K0327.1A3
View product 		light 5/16-18 3.5 3 22 8 1.2 2.5 16 4 1.4
£3.06
0
K0327.A3
View product 		standard 5/16-18 3.5 3 22 8 1.2 2.5 35 9 1.4
£2.89
0
K0327.2A6
View product 		intensified 5/8-11 7.5 5 32 14 2.5 5 150 60 2.5
£7.47
0
K0327.1A6
View product 		light 5/8-11 7.5 5 32 14 2.5 5 45 20 2.5
£7.34
0
K0327.A6
View product 		standard 5/8-11 7.5 5 32 14 2.5 5 100 45 2.5
£7.05
