Item Code: K0326.05

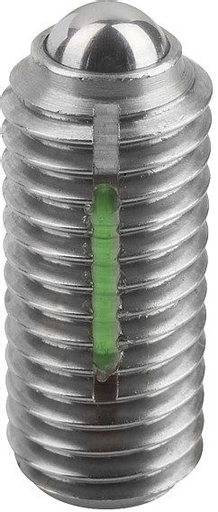

Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 6N. Stainless Steel.

Item Code: K0326.05

Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 6N. Stainless Steel.

Material:
Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310. LONG-LOK thread lock in nylon. Surface finish:
Natural finish.
Ball hardened.

Quick Links

Dispatch by 03/07/25

M5
3
0,9
14
6
0,08
2,5
6
11
0,12

£4.81  ea. Excl VAT £5.77  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
30 + £4.04 16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310. LONG-LOK thread lock in nylon. Surface finish:
Natural finish.
Ball hardened.

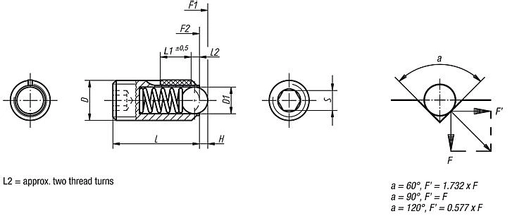

DM5
D13
H0,9
L14
L16
Loosening torque, approx. Nm0,08
S2,5
Spring force initial pressure F1 approx. N6
Spring force final pressure F2 approx. N11
Tightening torque approx. Nm0,12
Thread Size / Body DiameterM5
Length14mm
Body MaterialStainless Steel
Ball / Pin MaterialStainless Steel
Thread LockYes
