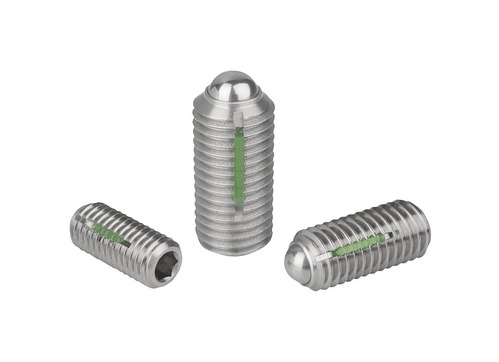

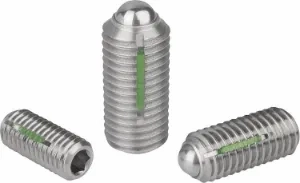

K0326 - Spring Plungers With Hex Socket And Ball In Stainless Steel With Thread Lock

K0326 - Spring Plungers With Hex Socket And Ball In Stainless Steel With Thread Lock

List view Grid view

Material:
Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310.
Thread lock nylon.

Version:
Bright. Ball hardened.

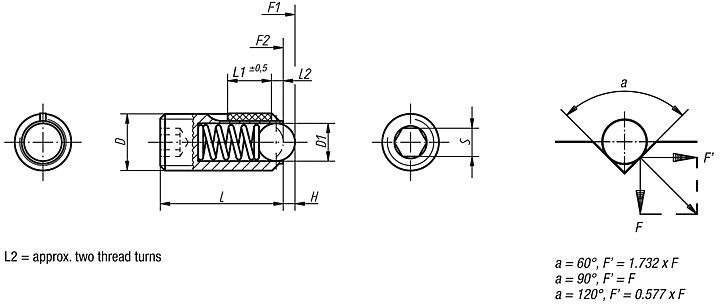

Drawing reference:
L2 = approx. 2x thread pitch

Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 12N. Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Sort by

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.03 View product Spring Plunger. M3 Thread. 9mm Long. 1.5mm Ball Diameter. 1.5N Spring Force.. Stainless Steel.	M3	1,5	0,4	9	4	0,07	1,5	1,5	3	0,1	£5.49 £6.59		16 16 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.203 View product Spring Plunger. Thread M3. Length 9mm. Ball Diameter 1.5mm. Spring Force 5N. Stainless Steel.	M3	1,5	0,4	9	4	0,07	1,5	5	7	0,1	£5.93 £7.12		16 16 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.04 View product Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 4N. Stainless Steel.	M4	2,5	0,8	10	5	0,12	2	4	10	0,18	£4.89 £5.87		7 7 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.204 View product Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 12N. Stainless Steel.	M4	2,5	0,8	10	5	0,12	2	12	22	0,18	£5.26 £6.31		0 Dispatched 30/06/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.05 View product Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 6N. Stainless Steel.	M5	3	0,9	14	6	0,08	2,5	6	11	0,12	£4.81 £5.77		0 Dispatched 30/06/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.205 View product Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 19N. Stainless Steel.	M5	3	0,9	14	6	0,08	2,5	19	30	0,12	£5.18 £6.22		0 Dispatched 30/06/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.06 View product Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 9N. Stainless Steel.	M6	3,5	1	15	7	0,21	3	9	13	0,44	£4.76 £5.71		0 Dispatched 30/06/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.206 View product Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 28N. Stainless Steel.	M6	3,5	1	15	7	0,21	3	28	40	0,44	£5.18 £6.22		0 Dispatched 30/06/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.08 View product Spring Plunger. Thread M8. Length 18mm. Ball Diameter 5mm. Spring Force 15N. Stainless Steel.	M8	5	1,5	18	8	0,38	4	15	30	1,1	£5.16 £6.19		26 26 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.208 View product Spring Plunger. Thread M8. Length 18mm. Ball Diameter 5mm. Spring Force 47N. Stainless Steel.	M8	5	1,5	18	8	0,38	4	47	73	1,1	£5.55 £6.66		0 Dispatched 30/06/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.10 View product Spring Plunger. Thread M10. Length 23mm. Ball Diameter 6mm. Spring Force 20N. Stainless Steel.	M10	6	2	23	9	0,6	5	20	35	1,3	£5.91 £7.09		0 Dispatched 30/06/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.210 View product Spring Plunger. Thread M10. Length 23mm. Ball Diameter 6mm. Spring Force 66N. Stainless Steel.	M10	6	2	23	9	0,6	5	66	100	1,3	£6.41 £7.69		1 1 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.12 View product Spring Plunger. Thread M12. Length 26mm. Ball Diameter 8mm. Spring Force 30N. Stainless Steel.	M12	8	2,5	26	10	1,3	6	30	55	2	£9.05 £10.86		0 Dispatched 30/06/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.212 View product Spring Plunger. Thread M12. Length 26mm. Ball Diameter 8mm. Spring Force 66N. Stainless Steel.	M12	8	2,5	26	10	1,3	6	66	120	2	£9.75 £11.70		0 Dispatched 30/06/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.16 View product Spring Plunger. Thread M16. Length 33mm. Ball Diameter 10mm. Spring Force 65N. Stainless Steel.	M16	10	3,5	33	14	3	8	65	125	3,9	£14.31 £17.17		0 Dispatched 30/06/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0326.216 View product Spring Plunger. Thread M16. Length 33mm. Ball Diameter 10mm. Spring Force 90N. Stainless Steel.	M16	10	3,5	33	14	3	8	90	180	3,9	£15.35 £18.42		0 Dispatched 30/06/25
