Back to K0325 - Spring Plungers With Hex Socket And Ball In Steel With Thread Lock

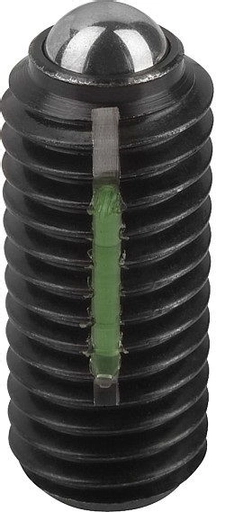

Spring Plunger. M3 Thread. 9mm Long. 1.5mm Ball Diameter. 1.5N Spring Force. Steel.

Item Code: K0325.03

Spring Plunger. M3 Thread. 9mm Long. 1.5mm Ball Diameter. 1.5N Spring Force. Steel.

Item Code: K0325.03

Spring Plunger. M3 Thread. 9mm Long. 1.5mm Ball Diameter. 1.5N Spring Force. Steel.

Material:
Sleeve in steel quality class 5.8.
Ball in steel.
Spring in spring steel D. LONG-LOK thread lock in nylon. Surface finish:
Black oxide finish.
Ball hardened.

Quick Links

235 in stock

Spring force initial pressure approx. N: 1.5

Spring force final pressure approx. N: 3

D: M3

D1: 1.5

H: 0.4

L: 9

L1: 4

Loosening torque, approx. Nm: 0.07

S: 1.5

Was £2.63 Save 50% £1.32 ea. Excl VAT Was £3.16 Save 50% £1.58 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£1.14	14%

Next Working Day Delivery on All In-Stock Products

modal placeholder

Quick Links

Product Dimensions

Spring force initial pressure approx. N	1.5
Spring force final pressure approx. N	3
D	M3
D1	1.5
H	0.4
L	9
L1	4
Loosening torque, approx. Nm	0.07
S	1.5
