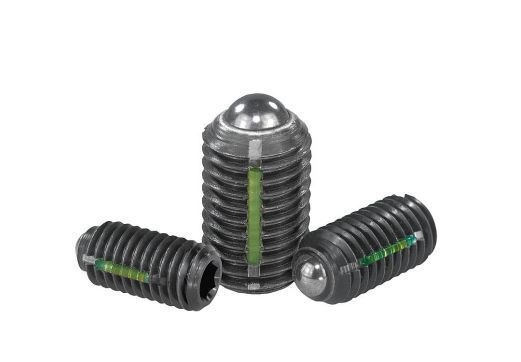

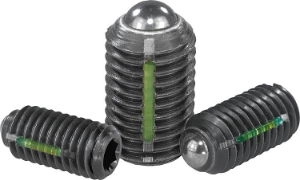

K0325 - Spring Plungers With Hex Socket And Ball In Steel With Thread Lock

K0325 - Spring Plungers With Hex Socket And Ball In Steel With Thread Lock

List view Grid view

Material:
Sleeve steel grade 5.8.
Ball steel.
Spring grade D spring steel wire.
Thread lock nylon.

Version:
Black oxidised. Ball hardened.

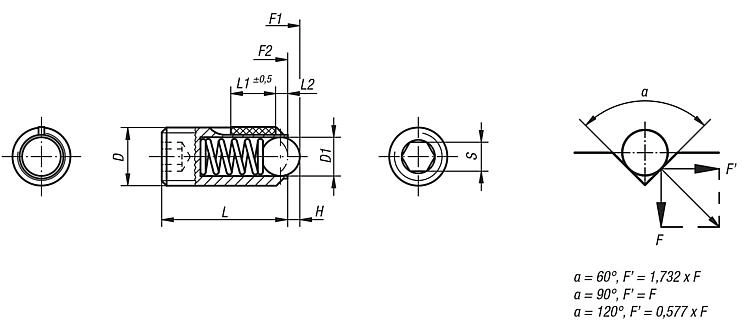

Drawing reference:
L2 = approx. 2x thread pitch

Spring Plunger. M3 Thread. 9mm Long. 1.5mm Ball Diameter. 1.5N Spring Force. Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Sort by

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.03 View product Spring Plunger. M3 Thread. 9mm Long. 1.5mm Ball Diameter. 1.5N Spring Force. Steel.	M3	1,5	0,4	9	4	0,07	1,5	1,5	3	0,1	£2.56 £3.07		235 50+ in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.203 View product Spring Plunger. Thread M3. Length 9mm. Ball Diameter 1.5mm. Spring Force 5N. Steel.	M3	1,5	0,4	9	4	0,07	1,5	5	7	0,1	£2.93 £3.52		0 Dispatched 08/07/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.04 View product Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 4N. Steel.	M4	2,5	0,8	10	5	0,12	2	4	10	0,18	£2.22 £2.66		31 31 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.204 View product Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 12N. Steel.	M4	2,5	0,8	10	5	0,12	2	12	22	0,18	£2.35 £2.82		12 12 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.05 View product Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 6N. Steel.	M5	3	0,9	14	6	0,08	2,5	6	11	0,12	£2.17 £2.60		0 Dispatched 08/07/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.205 View product Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 19N. Steel.	M5	3	0,9	14	6	0,08	2,5	19	30	0,12	£2.27 £2.72		48 48 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.06 View product Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 9N. Steel.	M6	3,5	1	15	7	0,21	3	9	13	0,44	£2.14 £2.57		12 12 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.206 View product Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 28N. Steel.	M6	3,5	1	15	7	0,21	3	28	40	0,44	£2.27 £2.72		26 26 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.08 View product Spring Plunger. Thread M8. Length 18mm. Ball Diameter 5mm. Spring Force 15N. Steel.	M8	5	1,5	18	8	0,38	4	15	30	1,1	£2.60 £3.12		8 8 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.208 View product Spring Plunger. Thread M8. Length 18mm. Ball Diameter 5mm. Spring Force 47N. Steel.	M8	5	1,5	18	8	0,38	4	47	73	1,1	£2.76 £3.31		0 Dispatched 08/07/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.10 View product Spring Plunger. Thread M10. Length 23mm. Ball Diameter 6mm. Spring Force 20N. Steel.	M10	6	2	23	9	0,6	5	20	40	1,3	£2.81 £3.37		24 24 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.210 View product Spring Plunger. Thread M10. Length 23mm. Ball Diameter 6mm. Spring Force 66N. Steel.	M10	6	2	23	9	0,6	5	66	100	1,3	£3.05 £3.66		21 21 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.12 View product Spring Plunger. Thread M12. Length 26mm. Ball Diameter 8mm. Spring Force 30N. Steel.	M12	8	2,5	26	10	1,3	6	30	55	2	£4.81 £5.77		20 20 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.212 View product Spring Plunger. Thread M12. Length 26mm. Ball Diameter 8mm. Spring Force 66N. Steel.	M12	8	2,5	26	10	1,3	6	66	120	2	£5.12 £6.14		0 Dispatched 08/07/25

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.16 View product Spring Plunger. Thread M16. Length 33mm. Ball Diameter 10mm. Spring Force 65N. Steel.	M16	10	3,5	33	14	3	8	65	125	3,9	£6.86 £8.23		20 20 in stock

	D	D1	H	L	L1	Loosening torque, approx. Nm	S	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Tightening torque approx. Nm	Price (Excl VAT)	Price (Inc VAT)	Compare	Qty	Basket
FILTERS													Basket
K0325.216 View product Spring Plunger. Thread M16. Length 33mm. Ball Diameter 10mm. Spring Force 90N. Steel.	M16	10	3,5	33	14	3	8	90	180	3,9	£7.23 £8.68		4 4 in stock

Showing products per page

Sort by

50+ in stock

Item Code: K0325.03

Spring Plunger. M3 Thread. 9mm Long. 1.5mm Ball Diameter. 1.5N Spring Force. Steel.

£2.56 Excl VAT £3.07 Inc VAT

Price breaks available

Text

Qty

Dispatch by 08/07/25

Item Code: K0325.203

Spring Plunger. Thread M3. Length 9mm. Ball Diameter 1.5mm. Spring Force 5N. Steel.

£2.93 Excl VAT £3.52 Inc VAT

Price breaks available

Text

Qty

31 in stock

Item Code: K0325.04

Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 4N. Steel.

£2.22 Excl VAT £2.66 Inc VAT

Price breaks available

Text

Qty

12 in stock

Item Code: K0325.204

Spring Plunger. Thread M4. Length 10mm. Ball Diameter 2.5mm. Spring Force 12N. Steel.

£2.35 Excl VAT £2.82 Inc VAT

Price breaks available

Text

Qty

Dispatch by 08/07/25

Item Code: K0325.05

Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 6N. Steel.

£2.17 Excl VAT £2.60 Inc VAT

Price breaks available

Text

Qty

48 in stock

Item Code: K0325.205

Spring Plunger. Thread M5. Length 14mm. Ball Diameter 3mm. Spring Force 19N. Steel.

£2.27 Excl VAT £2.72 Inc VAT

Price breaks available

Text

Qty

12 in stock

Item Code: K0325.06

Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 9N. Steel.

£2.14 Excl VAT £2.57 Inc VAT

Price breaks available

Text

Qty

26 in stock

Item Code: K0325.206

Spring Plunger. Thread M6. Length 15mm. Ball Diameter 3.5mm. Spring Force 28N. Steel.

£2.27 Excl VAT £2.72 Inc VAT

Price breaks available

Text

Qty

8 in stock

Item Code: K0325.08

Spring Plunger. Thread M8. Length 18mm. Ball Diameter 5mm. Spring Force 15N. Steel.

£2.60 Excl VAT £3.12 Inc VAT

Price breaks available

Text

Qty

Dispatch by 08/07/25

Item Code: K0325.208

Spring Plunger. Thread M8. Length 18mm. Ball Diameter 5mm. Spring Force 47N. Steel.

£2.76 Excl VAT £3.31 Inc VAT

Price breaks available

Text

Qty

24 in stock

Item Code: K0325.10

Spring Plunger. Thread M10. Length 23mm. Ball Diameter 6mm. Spring Force 20N. Steel.

£2.81 Excl VAT £3.37 Inc VAT

Price breaks available

Text

Qty

21 in stock

Item Code: K0325.210

Spring Plunger. Thread M10. Length 23mm. Ball Diameter 6mm. Spring Force 66N. Steel.

£3.05 Excl VAT £3.66 Inc VAT

Price breaks available

Text

Qty

20 in stock

Item Code: K0325.12

Spring Plunger. Thread M12. Length 26mm. Ball Diameter 8mm. Spring Force 30N. Steel.

£4.81 Excl VAT £5.77 Inc VAT

Price breaks available

Text

Qty

Dispatch by 08/07/25

Item Code: K0325.212

Spring Plunger. Thread M12. Length 26mm. Ball Diameter 8mm. Spring Force 66N. Steel.

£5.12 Excl VAT £6.14 Inc VAT

Price breaks available

Text

Qty

20 in stock

Item Code: K0325.16

Spring Plunger. Thread M16. Length 33mm. Ball Diameter 10mm. Spring Force 65N. Steel.

£6.86 Excl VAT £8.23 Inc VAT

Price breaks available

Text

Qty

4 in stock

Item Code: K0325.216

Spring Plunger. Thread M16. Length 33mm. Ball Diameter 10mm. Spring Force 90N. Steel.

4 in stock

Item Code: K0325.216

£7.23 Excl VAT £8.68 Inc VAT

Price breaks available

Text

Qty
