Spring Plunger. M6 Thread. 14mm Long. 2.7mm Pin Diameter. 4N Spring Force. Steel.

Item Code: K0323.106

Spring Plunger. M6 Thread. 14mm Long. 2.7mm Pin Diameter. 4N Spring Force. Steel.

Item Code: K0323.106

Spring Plunger. M6 Thread. 14mm Long. 2.7mm Pin Diameter. 4N Spring Force. Steel.

Material:
Sleeve in steel quality class 5.8.
Pressure pin in steel.
Spring in spring steel D. LONG-LOK thread lock in nylon. Surface finish:
Black oxide finish.
Pressure pin hardened.

Quick Links

Dispatch by 15/09/25

D: M6

D1: 2,7

H: 2

L: 14

L1: 7

Loosening torque, approx. Nm: 0,21

N: 1

Spring force initial pressure F1 approx. N: 4

Spring force final pressure F2 approx. N: 10

Tightening torque approx. Nm: 0,44

£1.71 ea. Excl VAT £2.05 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
50 +	£1.47	14%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

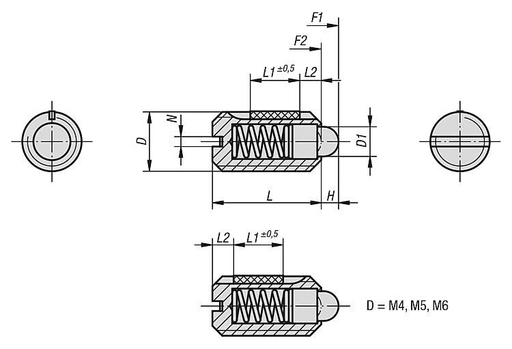

Product Dimensions

D	M6
D1	2,7
H	2
L	14
L1	7
Loosening torque, approx. Nm	0,21
N	1
Spring force initial pressure F1 approx. N	4
Spring force final pressure F2 approx. N	10
Tightening torque approx. Nm	0,44
