K0323 - Spring Plungers With Slot And Thrust Pin In Steel With Thread Lock

K0323 - Spring Plungers With Slot And Thrust Pin In Steel With Thread Lock

List view Grid view

Material:
Sleeve in steel grade 5.8;
thrust pin in steel.
Spring grade D spring steel wire.
Thread lock nylon.

Version:
Black oxidised.
Thrust pin hardened.

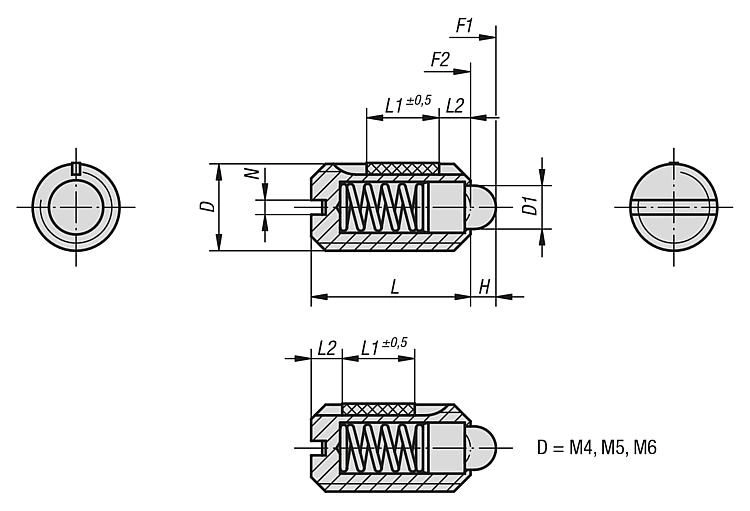

Drawing reference:
L2 = approx. 2x thread pitch

Spring Plunger. M6 Thread. 14mm Long. 2.7mm Pin Diameter. 11N Spring Force. Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	D	D1	H	L	L1	Loosening torque, approx. Nm	N	Price (Exc. Tax)	Stock
Filters
K0323.04 View product	M4	1,8	1,5	9	5	0,12	0,6	£1.60	0
K0323.104 View product	M4	1,8	1,5	9	5	0,12	0,6	£1.72	0
K0323.05 View product	M5	2,4	2	12	6	0,08	0,8	£1.62	0
K0323.105 View product	M5	2,4	2	12	6	0,08	0,8	£1.74	0
K0323.205 View product	M5	2,4	2	12	6	0,08	0,8	£1.76	563
K0323.06 View product	M6	2,7	2	14	7	0,21	1	£1.65	10
K0323.106 View product	M6	2,7	2	14	7	0,21	1	£1.76	0
K0323.206 View product	M6	2,7	2	14	7	0,21	1	£1.76	0
K0323.08 View product	M8	4	2	16	8	0,38	1,2	£1.88	29
K0323.108 View product	M8	4	2	16	8	0,38	1,2	£2.03	0
K0323.208 View product	M8	4	2	16	8	0,38	1,2	£2.03	0
K0323.10 View product	M10	4,5	2,5	19	9	0,62	1,6	£2.01	0
K0323.110 View product	M10	4,5	2,5	19	9	0,62	1,6	£2.10	0
K0323.210 View product	M10	4,5	2,5	19	9	0,62	1,6	£2.13	36
K0323.12 View product	M12	6	3,5	22	10	1,41	2	£3.93	0
K0323.112 View product	M12	6	3,5	22	10	1,41	2	£4.10	0
K0323.212 View product	M12	6	3,5	22	10	1,41	2	£4.13	0
K0323.16 View product	M16	8,5	4,5	24	14	3,05	2,5	£5.85	0
K0323.116 View product	M16	8,5	4,5	24	14	3,05	2,5	£6.00	0
K0323.216 View product	M16	8,5	4,5	24	14	3,05	2,5	£6.03	0

Showing products per page

{
    "id": "793",
    "layout_id": "",
    "parent_id": "782",
    "name": "K0323 - Spring Plungers With Slot And Thrust Pin In Steel With Thread Lock",
    "slug": "k0323-spring-plungers-with-slot-and-thrust-pin-in-steel-with-thread-lock",
    "meta_title": "K0323 - Spring Plungers With Slot And Thrust Pin In Steel With Thread Lock",
    "meta_description": "",
    "long_description": "",
    "short_description": "<div id=\"category-description-short-1\">\r\n<div style=\"text-align: left;\">\r\n<p><strong>Material:<\/strong><br \/>\r\nSleeve in steel grade 5.8;<br \/>\r\nthrust pin in steel.<br \/>\r\nSpring grade D spring steel wire.<br \/>\r\nThread lock nylon.<\/p>\r\n\r\n<p><strong>Version:<\/strong><br \/>\r\nBlack oxidised.<br \/>\r\nThrust pin hardened.<\/p>\r\n\r\n<p><strong>Drawing reference:<\/strong><br \/>\r\nL2 = approx. 2x thread pitch<\/p>\r\n<\/div>\r\n\r\n<div class=\"category-desc-drawings\" style=\"display: flex; justify-content: center; flex-wrap: wrap; gap: 20px; margin-top: 20px;\"><img alt=\"Spring Plunger. M6 Thread. 14mm Long. 2.7mm Pin Diameter. 11N Spring Force. Steel.\" src=\"https:\/\/images.shopcdn.co.uk\/dc\/ef\/dcef5e8ee84234dde00bb6eda8a6e0c0\/750x511\/webp\/resize?quality=100&compression=100\" \/><\/div>\r\n<\/div>",
    "active": "1",
    "visible": "1",
    "show_products": "1",
    "order_num": "258",
    "default_sortby": "best_match",
    "deleted": "0",
    "created": "2025-03-14 11:16:06",
    "updated": "2025-06-19 10:18:42",
    "images": [
        {
            "url": "https:\/\/images.shopcdn.co.uk\/cf\/5a\/cf5a278035e030a8a620f98a3fef99c8\/1024x1024\/webp\/fit?quality=100&amp;compression=100",
            "contain_url": "https:\/\/images.shopcdn.co.uk\/cf\/5a\/cf5a278035e030a8a620f98a3fef99c8\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "crop_url": "https:\/\/images.shopcdn.co.uk\/cf\/5a\/cf5a278035e030a8a620f98a3fef99c8\/256x256\/webp\/fit?quality=100&amp;compression=100",
            "original_url": "https:\/\/images.shopcdn.co.uk\/cf\/5a\/cf5a278035e030a8a620f98a3fef99c8\/499x362\/webp\/resize?quality=100&amp;compression=100"
        }
    ],
    "is_parent_category": false,
    "is_product_group": false,
    "parent_category_title": "Spring Plungers",
    "parent_category_url": "spring-plungers",
    "path": "Standard Parts > Spring Plungers > K0323 - Spring Plungers With Slot And Thrust Pin In Steel With Thread Lock",
    "path_list": [
        "Standard Parts",
        "Spring Plungers",
        "K0323 - Spring Plungers With Slot And Thrust Pin In Steel With Thread Lock"
    ],
    "selectedTags": [],
    "availableProducts": {
        "key": "available",
        "doc_count": 20,
        "stockLevel": {
            "untracked": 20,
            "in_stock": 0
        }
    },
    "unavailableProducts": {
        "key": "unavailable",
        "doc_count": 0
    },
    "product_attributes": [
        "D",
        "D1",
        "H",
        "L",
        "L1",
        "Loosening torque, approx. Nm",
        "N"
    ]
}

K0323 - Spring Plungers With Slot And Thrust Pin In Steel With Thread Lock

£1.60

£1.72

£1.62

£1.74

£1.76

£1.65

£1.76

£1.76

£1.88

£2.03

£2.03

£2.01

£2.10

£2.13

£3.93

£4.10

£4.13

£5.85

£6.00

£6.03

Spring Plunger. M4 Thread. 9mm Long. 1.8mm Pin Diameter. 6N Spring Force. Steel.

Spring Plunger. M4 Thread. 9mm Long. 1.8mm Pin Diameter. 3N Spring Force. Steel.

Spring Plunger. M5 Thread. 12mm Long. 2.4mm Pin Diameter. 6N Spring Force. Steel.

Spring Plunger. M5 Thread. 12mm Long. 2.4mm Pin Diameter. 3N Spring Force. Steel.

Spring Plunger. M5 Thread. 12mm Long. 2.4mm Pin Diameter. 9N Spring Force. Steel.

Spring Plunger. M6 Thread. 14mm Long. 2.7mm Pin Diameter. 7N Spring Force. Steel.

Spring Plunger. M6 Thread. 14mm Long. 2.7mm Pin Diameter. 4N Spring Force. Steel.

Spring Plunger. M6 Thread. 14mm Long. 2.7mm Pin Diameter. 11N Spring Force. Steel.

Spring Plunger. M8 Thread. 16mm Long. 4mm Pin Diameter. 15N Spring Force. Steel.

Spring Plunger. M8 Thread. 16mm Long. 4mm Pin Diameter. 7N Spring Force. Steel.

Spring Plunger. M8 Thread. 16mm Long. 4mm Pin Diameter. 22N Spring Force. Steel.

Spring Plunger. M10 Thread. 19mm Long. 4.5mm Pin Diameter. 20N Spring Force. Steel.

Spring Plunger. M10 Thread. 19mm Long. 4.5mm Pin Diameter. 9N Spring Force. Steel.

Spring Plunger. M10 Thread. 19mm Long. 4.5mm Pin Diameter. 20N Spring Force. Steel.

Spring Plunger. M12 Thread. 22mm Long. 6mm Pin Diameter. 30N Spring Force. Steel.

Spring Plunger. M12 Thread. 22mm Long. 6mm Pin Diameter. 14N Spring Force. Steel.

Spring Plunger. M12 Thread. 22mm Long. 6mm Pin Diameter. 36N Spring Force. Steel.

Spring Plunger. M16 Thread. 24mm Long. 8.5mm Pin Diameter. 45N Spring Force. Steel.

Spring Plunger. M16 Thread. 24mm Long. 8.5mm Pin Diameter. 22N Spring Force. Steel.

Spring Plunger. M16 Thread. 24mm Long. 8.5mm Pin Diameter. 60N Spring Force. Steel.
