Item Code: K0322.05

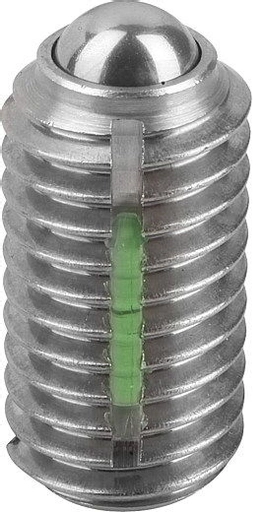

Spring Plunger. Thread M5. Length 12mm. Ball Diameter 3mm. Spring Force 8N. Stainless Steel.

Item Code: K0322.05

Material:
Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310. LONG-LOK thread lock in nylon. Surface finish:
Natural finish.
Ball hardened.

Quick Links

44 in stock

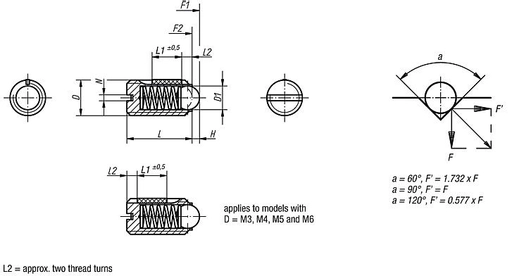

D: M5

L: 12

L1: 6

D1: 3

H: 0,9

N: 0,8

Spring force initial pressure F1 approx. N: 6

Spring force final pressure F2 approx. N: 11

Tightening torque approx. Nm: 0,12

Loosening torque, approx. Nm: 0,08

£3.19 ea. Excl VAT £3.83 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
30 +	£2.68	16%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Material:
Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310. LONG-LOK thread lock in nylon. Surface finish:
Natural finish.
Ball hardened.

D	M5
L	12
L1	6
D1	3
H	0,9
N	0,8
Spring force initial pressure F1 approx. N	6
Spring force final pressure F2 approx. N	11
Tightening torque approx. Nm	0,12
Loosening torque, approx. Nm	0,08
