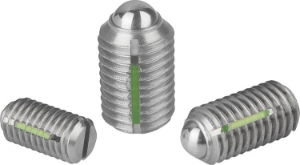

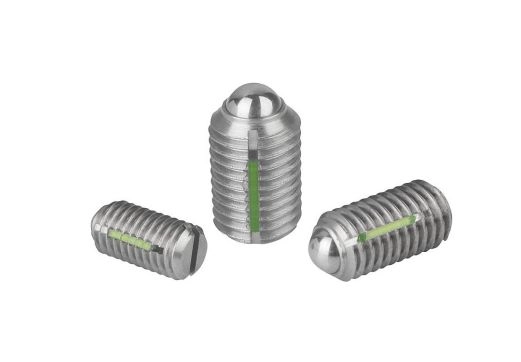

K0322 - Spring Plungers With Slot And Ball In Stainless Steel With Thread Lock

List view Grid view
K0322 - Spring Plungers With Slot And Ball In Stainless Steel With Thread Lock

Material:
Sleeve 1.4305.
Ball 1.4034.
Spring 1.4310.
Thread lock nylon.

Version:
Bright. Ball hardened.

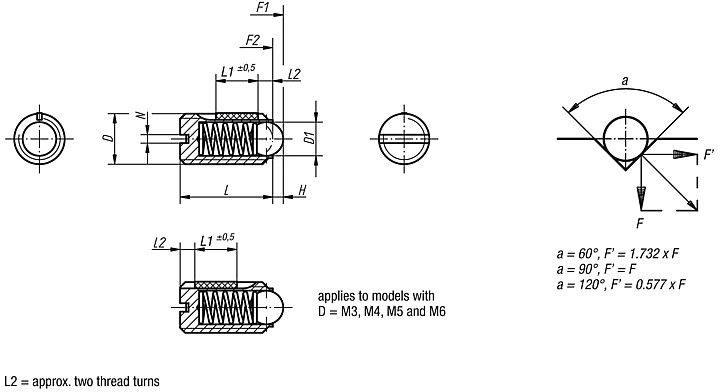

Drawing reference:
L2 = approx. 2x thread pitch

Spring Plunger. Thread M12. Length 22mm. Ball Diameter 8mm. Spring Force 30N. Stainless Steel.

K0322 - Spring Plungers With Slot And Ball In Stainless Steel With Thread Lock

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm+

Choose Type

Hook

Latch

Vertical Latch

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.03

View product

Spring Plunger. M3 Thread. 7mm Long. 1.5mm Ball Diameter. 1.5N Spring Force. Stainless Steel.

M3 7 4 1,5 0,4 0,4 1,5 3 0,1 0,07 £3.49 £4.19

31

31 in stock

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.203

View product

Spring Plunger. Thread M3. Length 7mm. Ball Diameter 1.5mm. Spring Force 5N. Stainless Steel.

M3 7 4 1,5 0,4 0,4 5 7 0,1 0,07 £3.89 £4.67

50

50 in stock

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.04

View product

Spring Plunger. Thread M4. Length 9mm. Ball Diameter 2.5mm. Spring Force 4N. Stainless Steel.

M4 9 5 2,5 0,8 0,6 4 10 0,18 0,12 £3.11 £3.73

48

48 in stock

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.204

View product

Spring Plunger. Thread M4. Length 9mm. Ball Diameter 2.5mm. Spring Force 12N. Stainless Steel.

M4 9 5 2,5 0,8 0,6 12 22 0,18 0,12 £3.40 £4.08

1

1 in stock

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.05

View product

Spring Plunger. Thread M5. Length 12mm. Ball Diameter 3mm. Spring Force 8N. Stainless Steel.

M5 12 6 3 0,9 0,8 6 11 0,12 0,08 £3.19 £3.83

44

44 in stock

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.205

View product

Spring Plunger. Thread M5. Length 12mm. Ball Diameter 3mm. Spring Force 19N. Stainless Steel.

M5 12 6 3 0,9 0,8 19 30 0,12 0,08 £3.40 £4.08

0

Dispatched 20/06/25

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.06

View product

Spring Plunger. Thread M6. Length 14mm. Ball Diameter 3.5mm. Spring Force 9N. Stainless Steel.

M6 14 7 3,5 1 1 9 13 0,43 0,21 £3.19 £3.83

50

50 in stock

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.206

View product

Spring Plunger. Thread M6. Length 14mm. Ball Diameter 3.5mm. Spring Force 28N. Stainless Steel.

M6 14 7 3,5 1 1 28 40 0,43 0,21 £3.36 £4.03

10

10 in stock

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.08

View product

Spring Plunger. Thread M8. Length 16mm. Ball Diameter 5mm. Spring Force 15N. Stainless Steel.

M8 16 8 5 1,5 1,2 15 30 1,09 0,37 £3.93 £4.72

28

28 in stock

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.208

View product

Spring Plunger. Thread M8. Length 16mm. Ball Diameter 5mm. Spring Force 47N. Stainless Steel.

M8 16 8 5 1,5 1,2 47 73 1,09 0,37 £4.27 £5.12

0

Dispatched 20/06/25

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.10

View product

Spring Plunger. Thread M10. Length 19mm. Ball Diameter 6mm. Spring Force 20N. Stainless Steel.

M10 19 9 6 2 1,6 20 35 1,36 0,62 £4.46 £5.35

10

10 in stock

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.210

View product

Spring Plunger. Thread M10. Length 19mm. Ball Diameter 6mm. Spring Force 66N. Stainless Steel.

M10 19 9 6 2 1,6 66 100 1,36 0,62 £4.81 £5.77

0

Dispatched 20/06/25

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.12

View product

Spring Plunger. Thread M12. Length 22mm. Ball Diameter 8mm. Spring Force 30N. Stainless Steel.

M12 22 10 8 2,5 2 30 55 2,03 1,36 £6.65 £7.98

0

Dispatched 20/06/25

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.212

View product

Spring Plunger. Thread M12. Length 22mm. Ball Diameter 8mm. Spring Force 66N. Stainless Steel.

M12 22 10 8 2,5 2 66 120 2,03 1,36 £7.11 £8.53

0

Dispatched 20/06/25

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.16

View product

Spring Plunger. Thread M16. Length 24mm. Ball Diameter 10mm. Spring Force 65N. Stainless Steel.

M16 24 14 10 3,5 2,5 65 125 3,95 2,95 £9.08 £10.90

0

Dispatched 20/06/25

D

L

L1

D1

H

N

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

Tightening torque approx. Nm

Loosening torque, approx. Nm

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0322.216

View product

Spring Plunger. Thread M16. Length 24mm. Ball Diameter 10mm. Spring Force 90N. Stainless Steel.

M16 24 14 10 3,5 2,5 90 180 3,95 2,95 £9.67 £11.60

0

Dispatched 20/06/25
