Item Code: K0319.206

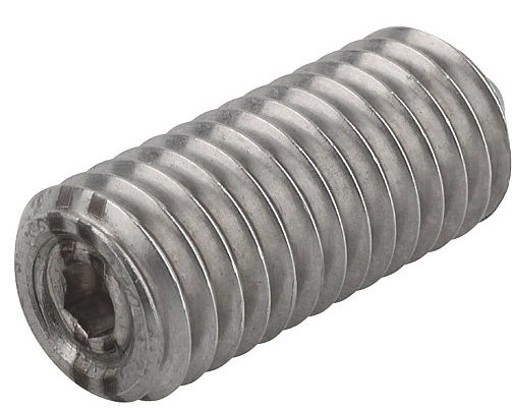

Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 11N. Stainless Steel.

Item Code: K0319.206

Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 11N. Stainless Steel.

Material:
Sleeve 1.4305.
Pressure pin 1.4034.
Spring 1.4310. Surface finish:
Natural finish.
Pressure pin hardened.

Quick Links

19 in stock

14
M6
2,7
2,5
20
1
2
11
35
1
Qty

£5.26  ea. Excl VAT £6.31  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
25 + £4.31 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty

Quick Links



Material:
Sleeve 1.4305.
Pressure pin 1.4034.
Spring 1.4310. Surface finish:
Natural finish.
Pressure pin hardened.

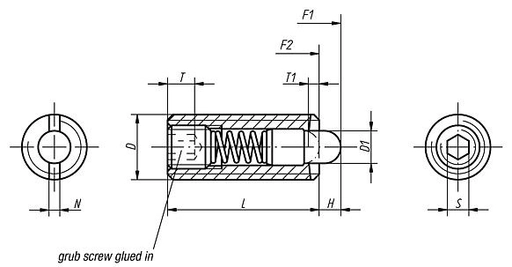

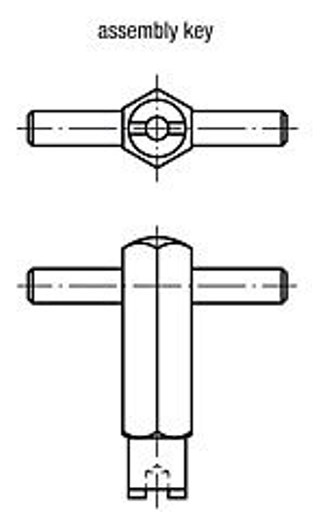

Assembly key g14
DM6
D12,7
H2,5
L20
N1
S2
Spring force initial pressure F1 approx. N11
Spring force final pressure F2 approx. N35
T11
STP
Thread Size / Body DiameterM6
Length20mm
Body MaterialStainless Steel
Ball / Pin MaterialStainless Steel
Thread LockNo
