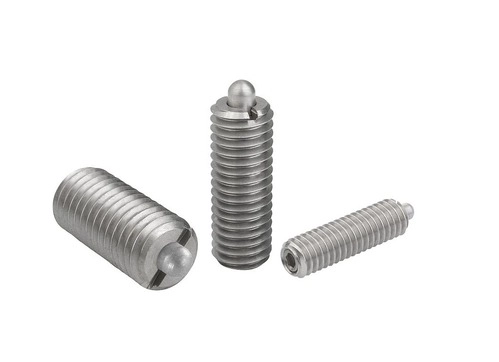

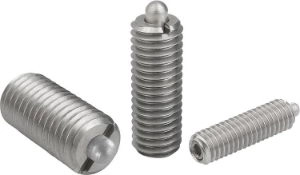

K0319 - Spring Plungers With Hexagon Socket In Stainless Steel

List view Grid view
K0319 - Spring Plungers With Hexagon Socket In Stainless Steel

Material:
Sleeve 1.4305.
Thrust pin 1.4034.
Spring 1.4310.

Version:
Bright.
Thrust pin hardened.

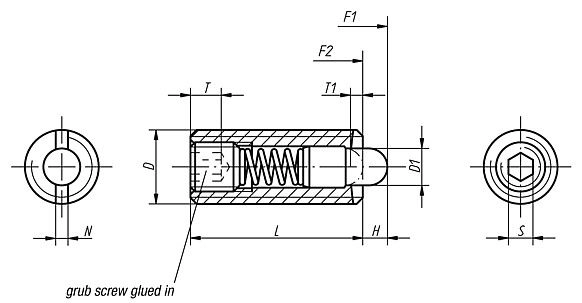

Drawing reference:
1) grub screw glued in

Spring Plunger. M3 Thread. 10mm Long. 1mm Pin Diameter. 0.4N Spring Force. Stainless Steel.

K0319 - Spring Plungers With Hexagon Socket In Stainless Steel

Quick Filters

Choose Vertical Base Type

Flat

Side Mount

Straight

Choose Horizontal Base Type

Flat

Side Mount

Straight

Choose Stroke Length

0-40mm

41-80mm

81mm+

Choose Type

Hook

Latch

Vertical Latch

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.03

View product

Spring Plunger. M3 Thread. 10mm Long. 1mm Pin Diameter. 0.4N Spring Force. Stainless Steel.

- M3 1 1,5 10 0,4 0,7 0,4 2,5 1 £5.93 £7.12

0

Dispatched 02/07/25

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.04

View product

Spring Plunger. Thread M4. Length 15mm. Pin Diameter 1.5mm. Spring Force 5N. Stainless Steel.

14 M4 1,5 1,5 15 0,6 1,3 5 16 0,6 £4.93 £5.92

0

Dispatched 02/07/25

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.05

View product

Spring Plunger. Thread M5. Length 18mm. Pin Diameter 2.4mm. Spring Force 5N. Stainless Steel.

14 M5 2,4 2,3 18 0,8 1,5 5 17 0,8 £4.89 £5.87

9

9 in stock

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.205

View product

Spring Plunger. Thread M5. Length 18mm. Pin Diameter 2.4mm. Spring Force 9N. Stainless Steel.

14 M5 2,4 2,3 18 0,8 1,5 9 26 0,8 £5.26 £6.31

0

Dispatched 02/07/25

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.06

View product

Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 6N. Stainless Steel.

14 M6 2,7 2,5 20 1 2 6 17 1 £4.89 £5.87

5

5 in stock

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.206

View product

Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 11N. Stainless Steel.

14 M6 2,7 2,5 20 1 2 11 35 1 £5.26 £6.31

19

19 in stock

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.08

View product

Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 7N. Stainless Steel.

33 M8 3,5 3 22 1,2 2,5 7 29 1,4 £5.57 £6.68

44

44 in stock

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.208

View product

Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 15N. Stainless Steel.

33 M8 3,5 3 22 1,2 2,5 15 48 1,4 £6.02 £7.22

15

15 in stock

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.10

View product

Spring Plunger. Thread M10. Length 22mm. Pin Diameter 4mm. Spring Force 8N. Stainless Steel.

50 M10 4 3 22 1,6 3 8 31 1,4 £6.53 £7.84

9

9 in stock

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.210

View product

Spring Plunger. Thread M10. Length 22mm. Pin Diameter 4mm. Spring Force 15N. Stainless Steel.

50 M10 4 3 22 1,6 3 15 58 1,4 £7.01 £8.41

0

Dispatched 02/07/25

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.12

View product

Spring Plunger. Thread M12. Length 28mm. Pin Diameter 6mm. Spring Force 10N. Stainless Steel.

70 M12 6 4 28 2 4 10 47 2 £8.33 £10.00

28

28 in stock

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.212

View product

Spring Plunger. Thread M12. Length 28mm. Pin Diameter 6mm. Spring Force 19N. Stainless Steel.

70 M12 6 4 28 2 4 19 74 2 £8.96 £10.75

0

Dispatched 02/07/25

Assembly key g

D

D1

H

L

N

S

Spring force initial pressure F1 approx. N

Spring force final pressure F2 approx. N

T1

Price
(Excl VAT)

Price
(Inc VAT)

Compare

Qty

Basket

FILTERS

Basket

K0319.16

View product

Spring Plunger. Thread M16. Length 32mm. Pin Diameter 7.5mm. Spring Force 38N. Stainless Steel.

100 M16 7,5 5 32 2,5 5 38 85 2,5 £13.12 £15.74

0

Dispatched 02/07/25

Showing products per page


£
£

Dispatch by 02/07/25

Item Code: K0319.03

Spring Plunger. M3 Thread. 10mm Long. 1mm Pin Diameter. 0.4N Spring Force. Stainless Steel.

£5.93  Excl VAT £7.12  Inc VAT

Price breaks available

Text

Qty

Dispatch by 02/07/25

Item Code: K0319.04

Spring Plunger. Thread M4. Length 15mm. Pin Diameter 1.5mm. Spring Force 5N. Stainless Steel.

£4.93  Excl VAT £5.92  Inc VAT

Price breaks available

Text

Qty

9 in stock

Item Code: K0319.05

Spring Plunger. Thread M5. Length 18mm. Pin Diameter 2.4mm. Spring Force 5N. Stainless Steel.

£4.89  Excl VAT £5.87  Inc VAT

Price breaks available

Text

Qty

Dispatch by 02/07/25

Item Code: K0319.205

Spring Plunger. Thread M5. Length 18mm. Pin Diameter 2.4mm. Spring Force 9N. Stainless Steel.

£5.26  Excl VAT £6.31  Inc VAT

Price breaks available

Text

Qty

5 in stock

Item Code: K0319.06

Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 6N. Stainless Steel.

£4.89  Excl VAT £5.87  Inc VAT

Price breaks available

Text

Qty

19 in stock

Item Code: K0319.206

Spring Plunger. Thread M6. Length 20mm. Pin Diameter 2.7mm. Spring Force 11N. Stainless Steel.

£5.26  Excl VAT £6.31  Inc VAT

Price breaks available

Text

Qty

44 in stock

Item Code: K0319.08

Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 7N. Stainless Steel.

£5.57  Excl VAT £6.68  Inc VAT

Price breaks available

Text

Qty

15 in stock

Item Code: K0319.208

Spring Plunger. Thread M8. Length 22mm. Pin Diameter 3.5mm. Spring Force 15N. Stainless Steel.

£6.02  Excl VAT £7.22  Inc VAT

Price breaks available

Text

Qty

9 in stock

Item Code: K0319.10

Spring Plunger. Thread M10. Length 22mm. Pin Diameter 4mm. Spring Force 8N. Stainless Steel.

£6.53  Excl VAT £7.84  Inc VAT

Price breaks available

Text

Qty

Dispatch by 02/07/25

Item Code: K0319.210

Spring Plunger. Thread M10. Length 22mm. Pin Diameter 4mm. Spring Force 15N. Stainless Steel.

£7.01  Excl VAT £8.41  Inc VAT

Price breaks available

Text

Qty

28 in stock

Item Code: K0319.12

Spring Plunger. Thread M12. Length 28mm. Pin Diameter 6mm. Spring Force 10N. Stainless Steel.

£8.33  Excl VAT £10.00  Inc VAT

Price breaks available

Text

Qty

Dispatch by 02/07/25

Item Code: K0319.212

Spring Plunger. Thread M12. Length 28mm. Pin Diameter 6mm. Spring Force 19N. Stainless Steel.

£8.96  Excl VAT £10.75  Inc VAT

Price breaks available

Text

Qty

Dispatch by 02/07/25

Item Code: K0319.16

Spring Plunger. Thread M16. Length 32mm. Pin Diameter 7.5mm. Spring Force 38N. Stainless Steel.

£13.12  Excl VAT £15.74  Inc VAT

Price breaks available

Text

Qty
